Radio Assembly Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Remove center lower garnish (1).

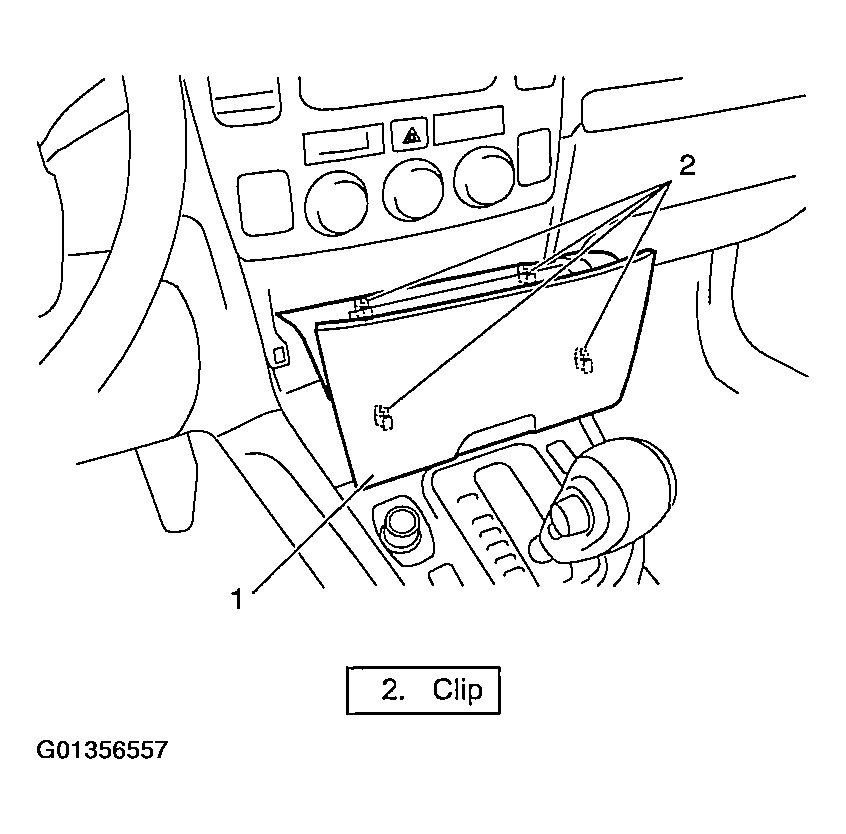

Fig 1: Removing Center Lower Garnish
Courtesy of SUZUKI OF AMERICA CORP.
Remove center garnish mounting screw (1) and then pull off center garnish.
Remove harness and controller cover (2).

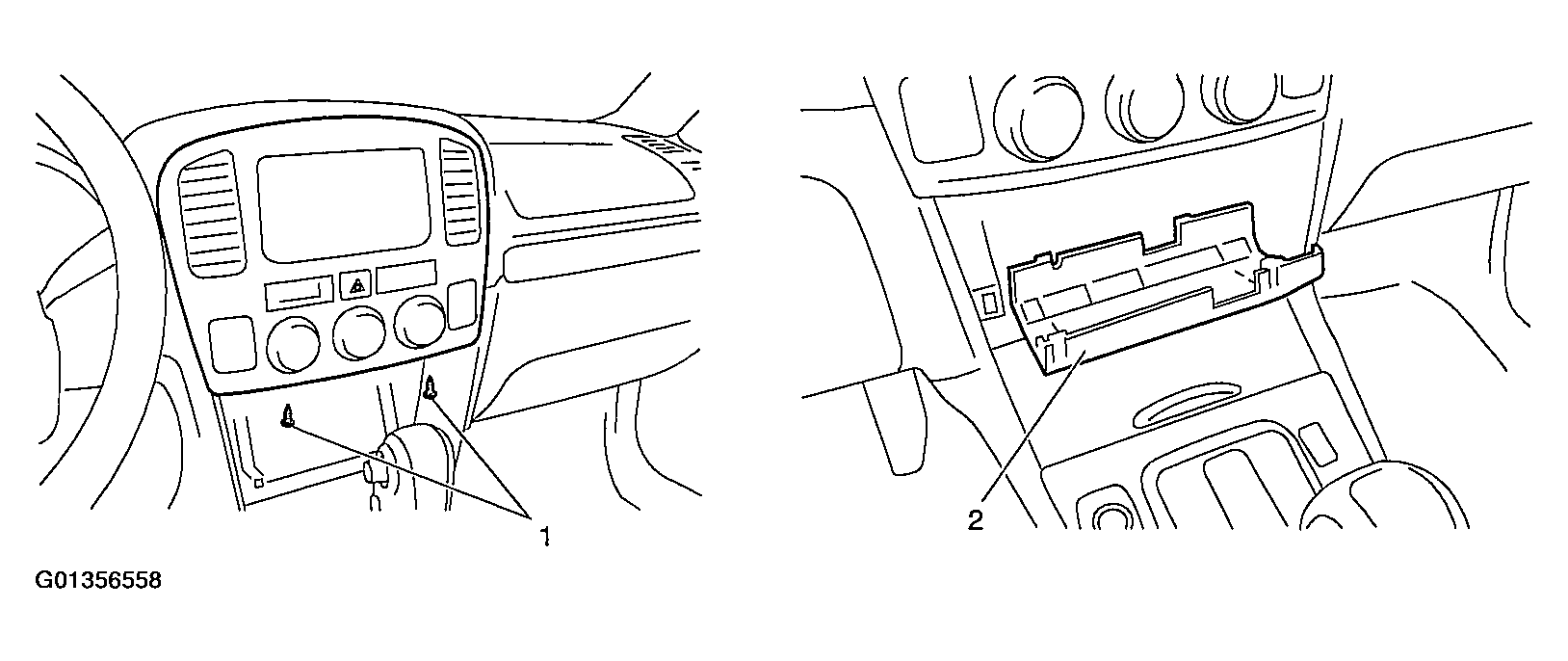

Fig 2: Removing Center Garnish Screws
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect BCM connectors and HVAC control module connector from each controller.
Remove center garnish (1) with BCM (2) and HVAC control module.

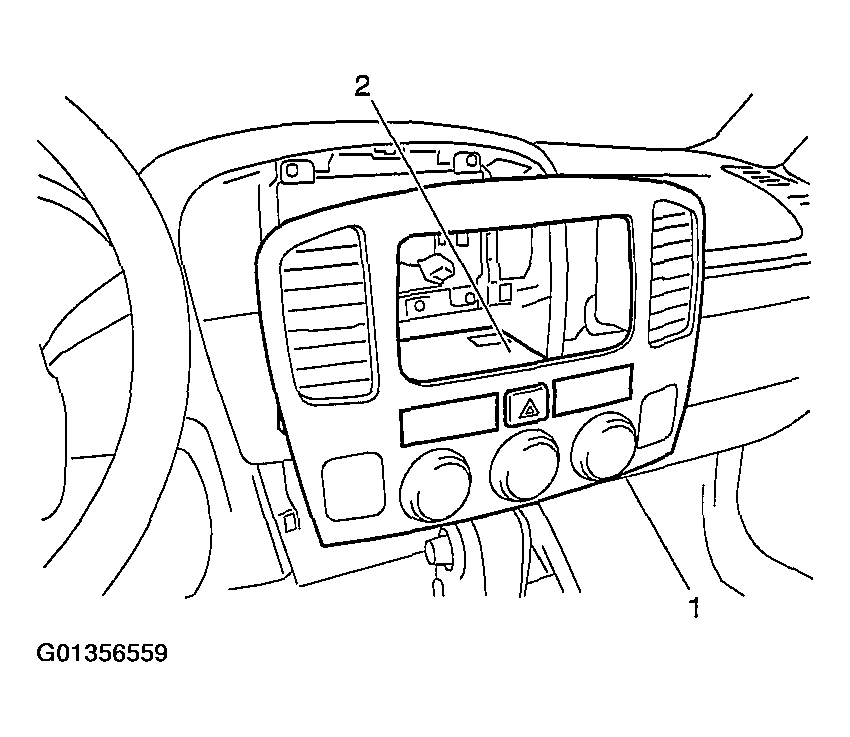

Fig 3: Removing Center Garnish
Courtesy of SUZUKI OF AMERICA CORP.
Remove 4 mounting screws (3) of radio assembly (4).
Remove radio assembly (4) from instrument panel.
Disconnect radio assembly coupler and antenna feeder from radio assembly (4).

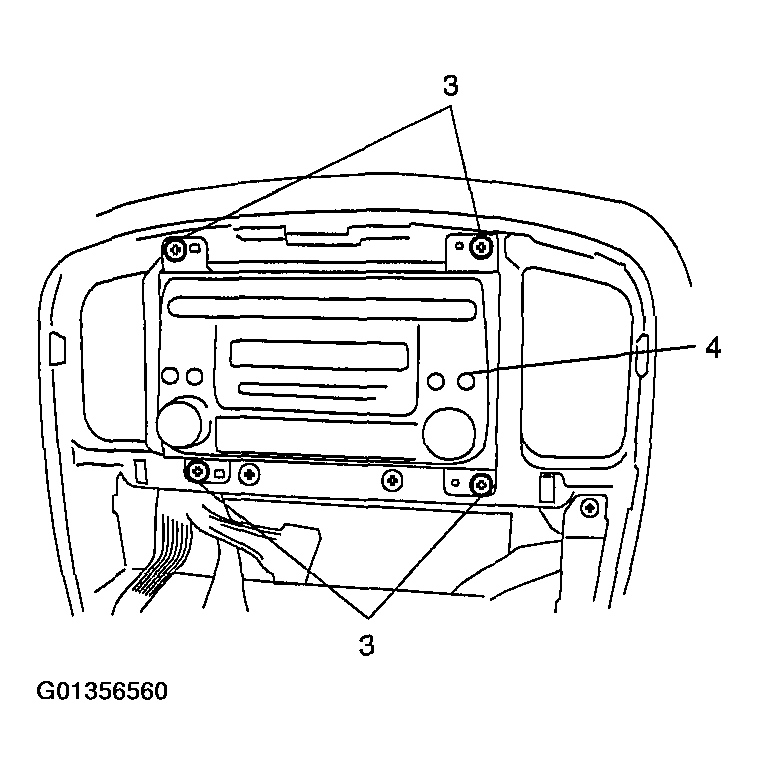

Fig 4: Removing Radio Assembly

Courtesy of SUZUKI OF AMERICA CORP.
