Radio Assembly Removal And Installation: Installation
WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
Reverse removal procedure to install radio assembly noting the following point.

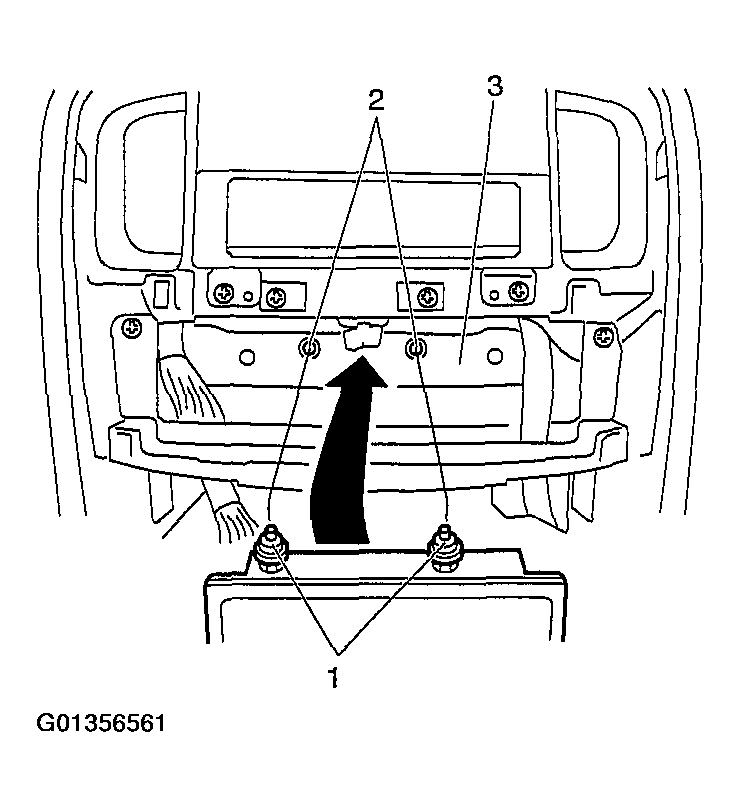

- When installing center garnish, align rubber bushing (1) with BCM installation hole (2) of instrument panel member (3).
Courtesy of SUZUKI OF AMERICA CORP.
