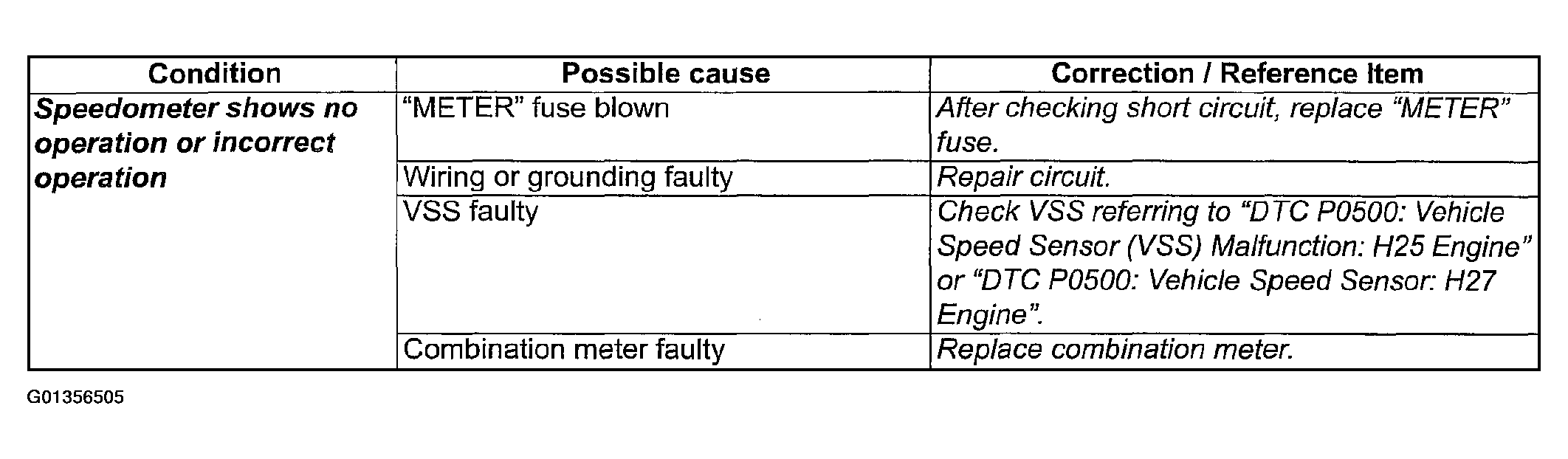

Speedometer Symptom Diagnosis
WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before troubleshooting of this system, check whether DTC P0500 is outputted from ECM (PCM) referring "DTC Check: H25 Engine"
or "DTC check: H27 Engine"
. If the DTC is outputted, repair vehicle speed signal circuit referring to "DTC P0500: Vehicle Speed (VSS) Malfunction: H25 Engine"
or "DTC P0500: Vehicle Speed Sensor: H27 Engine"
.
