BCM-Meter Signal Circuit Inspection: Reference

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

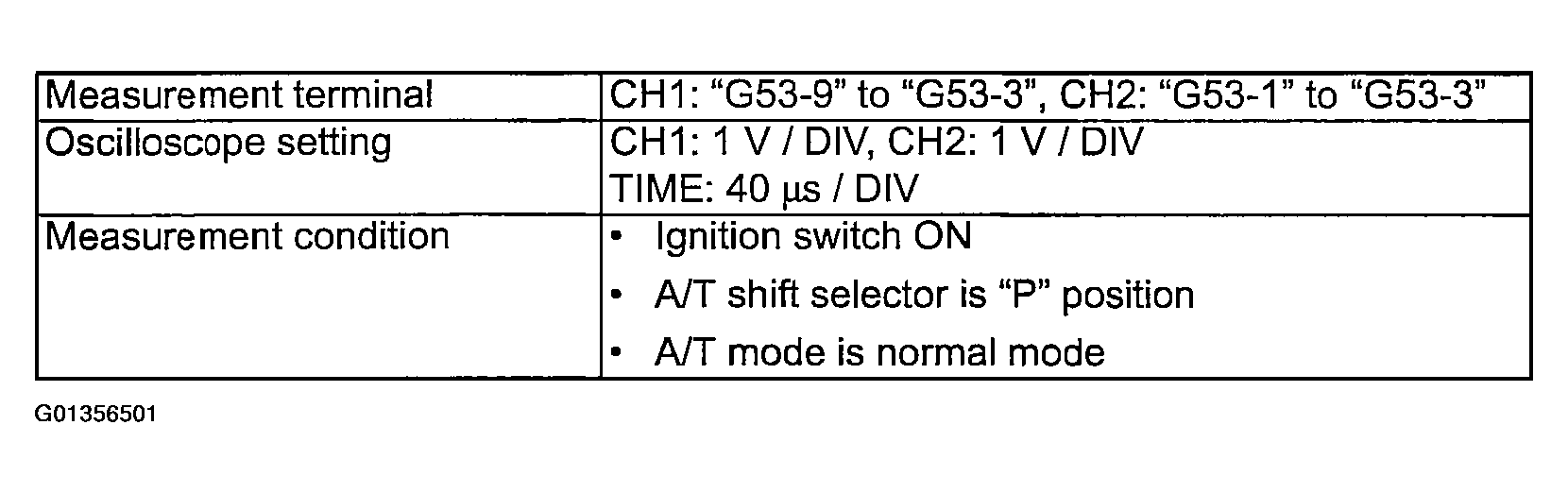

Fig 1: TCM-BCM CAN Communication Signal Chart

Courtesy of SUZUKI OF AMERICA CORP.

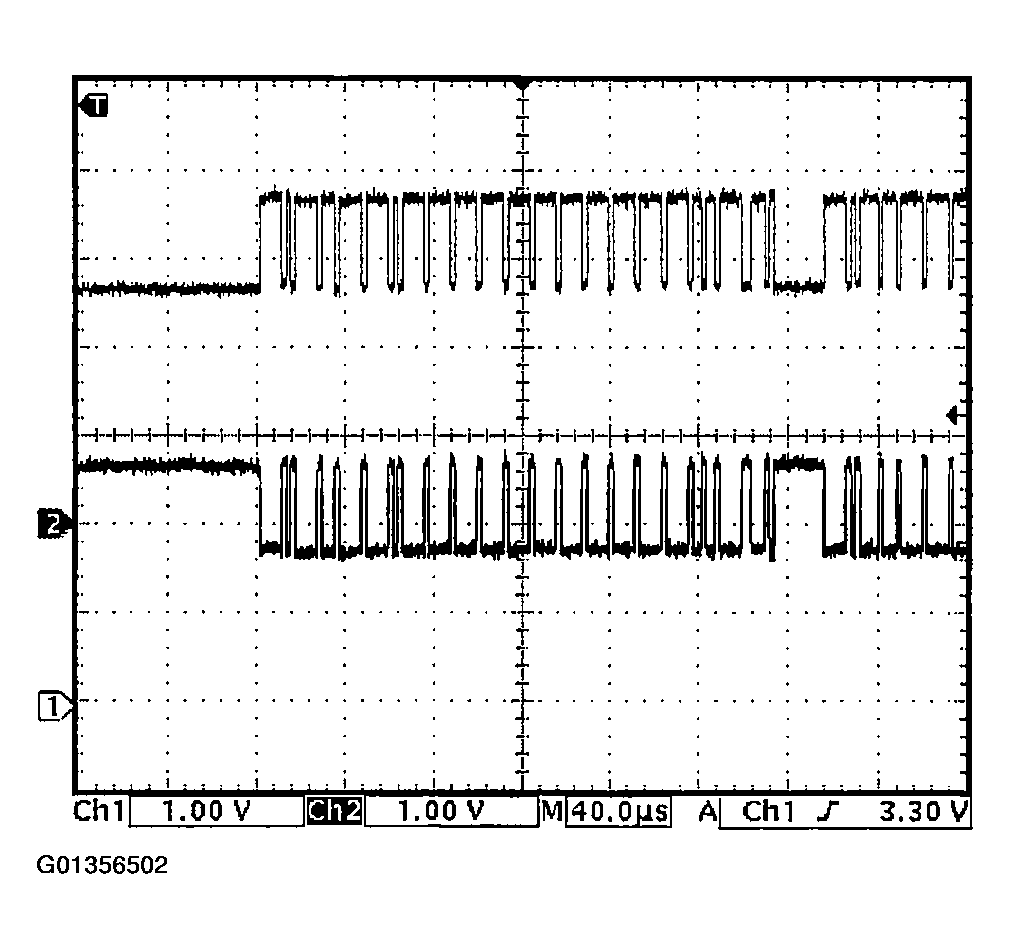

Fig 2: TCM-BCM CAN Communication Signal Graph

Courtesy of SUZUKI OF AMERICA CORP.

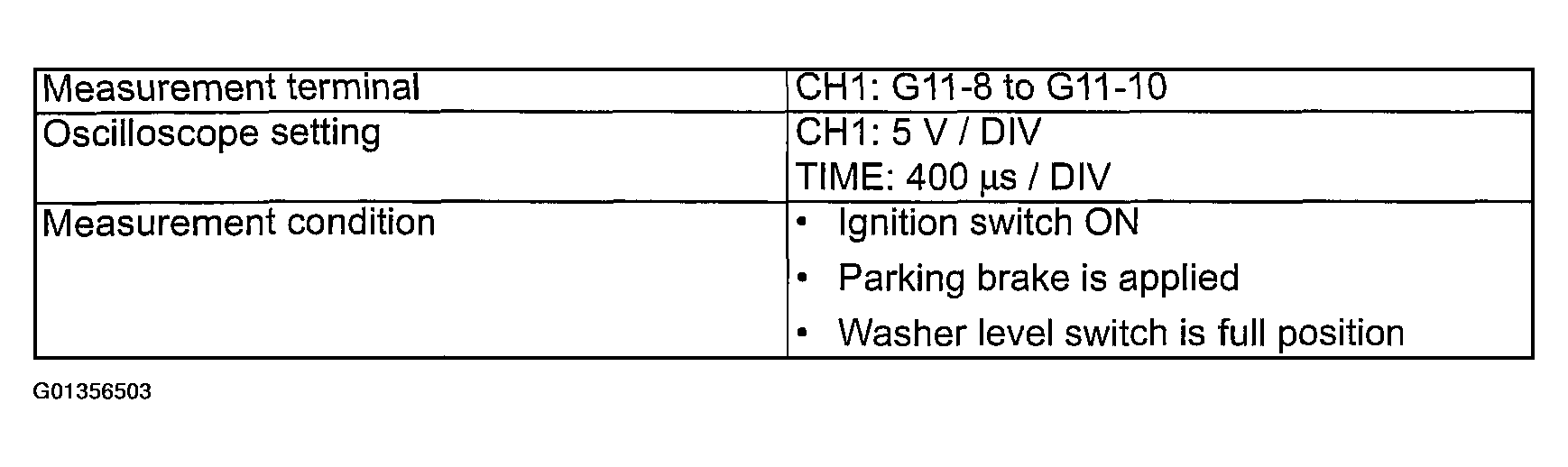

Fig 3: BCM-METER Signal Circuit Chart

Courtesy of SUZUKI OF AMERICA CORP.

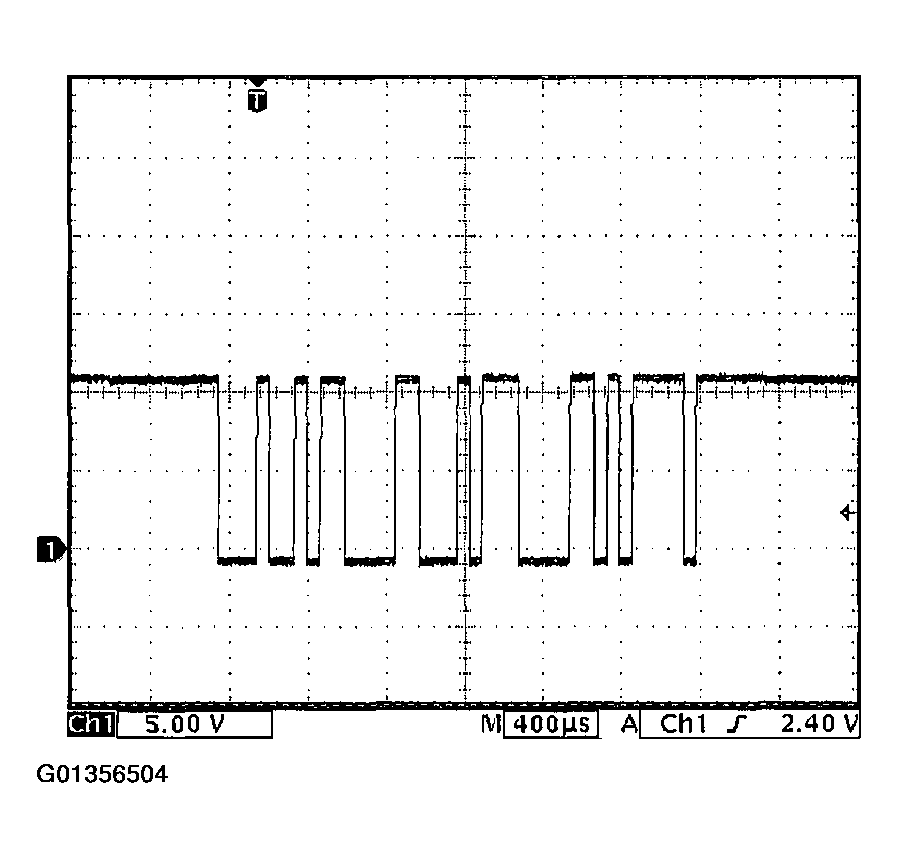

Fig 4: BCM-METER Signal Circuit Graph

Courtesy of SUZUKI OF AMERICA CORP.
