Headlight Switch (In Lighting Switch) Inspection
WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

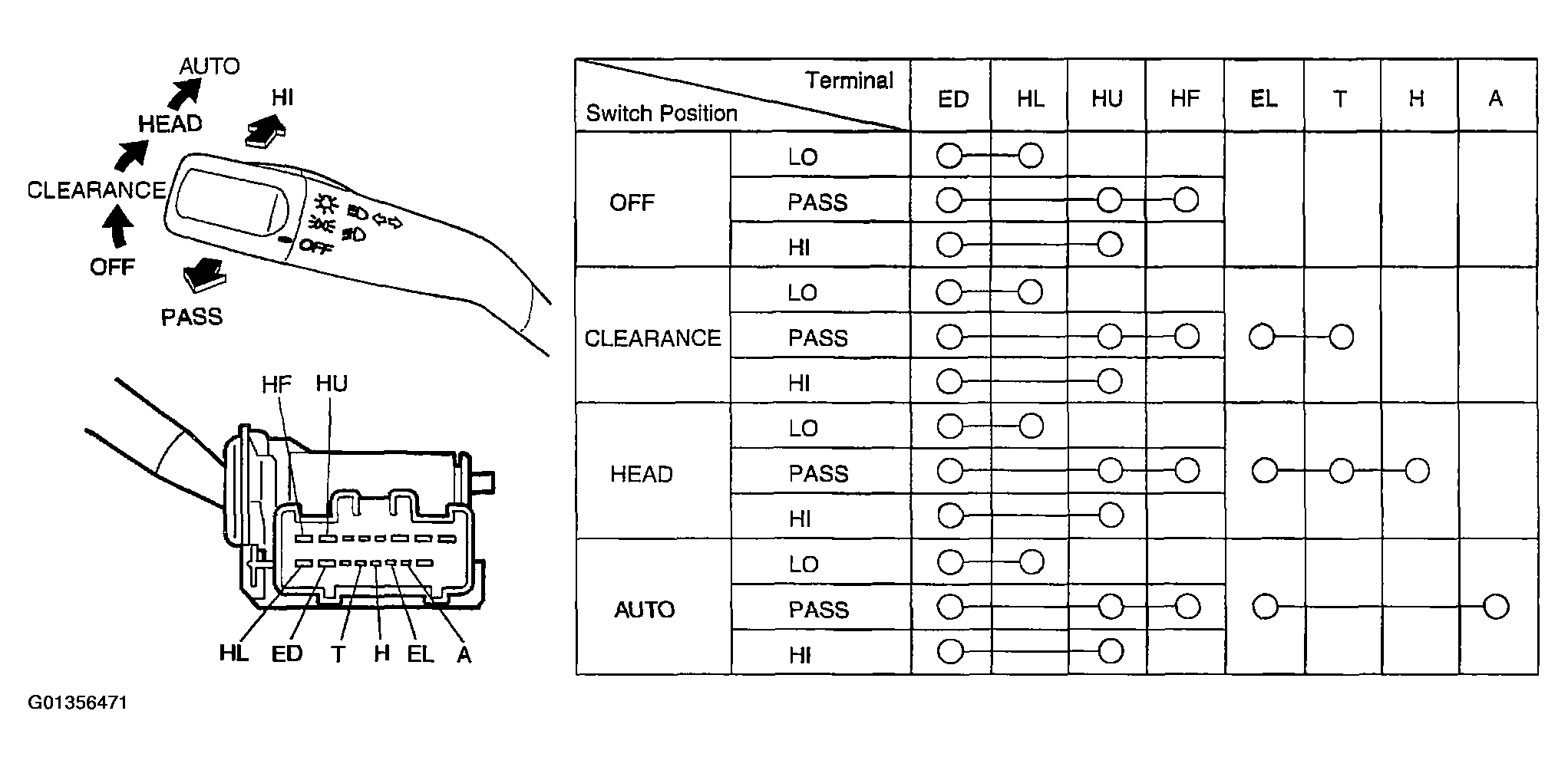

Check for continuity between terminals at each switch position as shown in the following figure.
If check result is not as specified, replace.
Courtesy of SUZUKI OF AMERICA CORP.
