Front Fog Light Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal procedure for installation nothing the following:

After installing, adjust aiming with adjusting screw according to local regulation if obligated.

Fig 1: Aiming Front Fog Light
Courtesy of SUZUKI OF AMERICA CORP.
Unless otherwise obligated by local regulations, check aiming adjusting screw height "a" before installing and adjust it if it is not specified height below.
Aiming adjusting screw height

"a": 24.5 mm (0.964 in.)

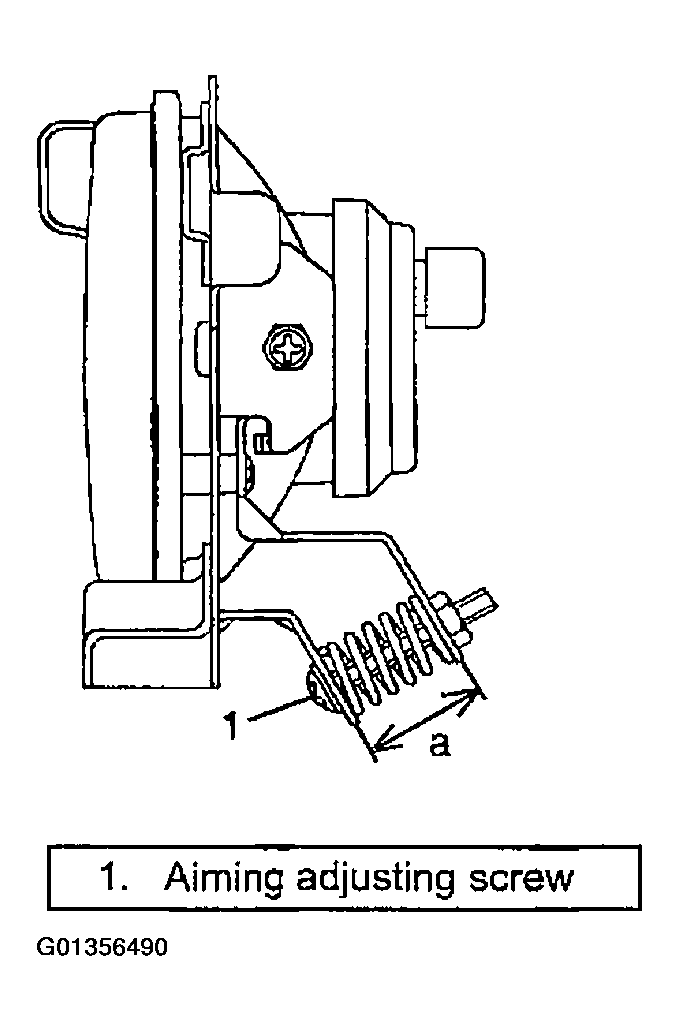

Fig 2: Identifying Aiming Adjusting Screw Height "a"

Courtesy of SUZUKI OF AMERICA CORP.
