Fail-Safe Table

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

When any of the following malfunctions (DTCs) is detected, HVAC control module enters fail-safe mode.

However, when HVAC control module detects normal operation of A/C system, fail-safe mode is canceled.

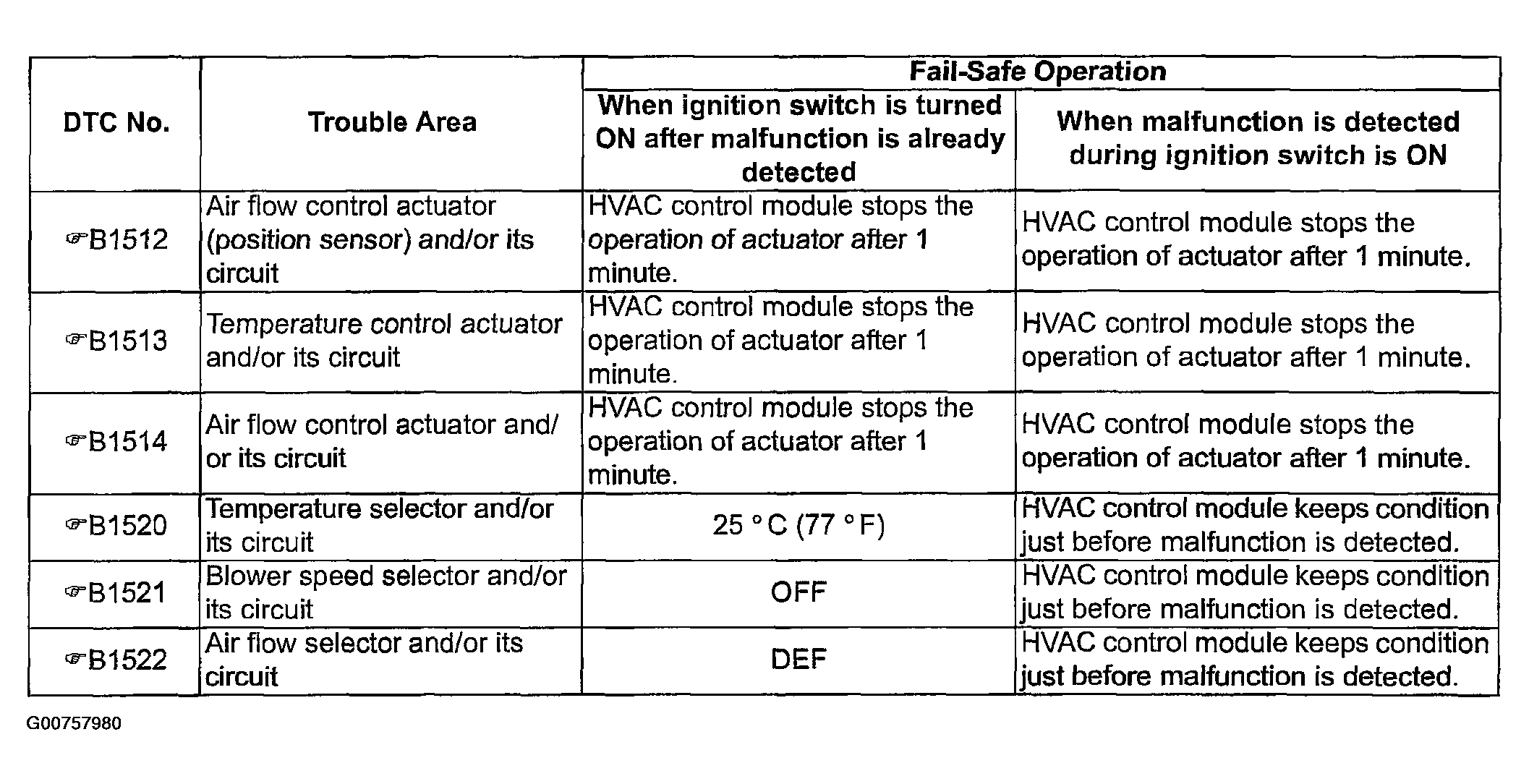

Fig 1: Fail-Safe Table (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

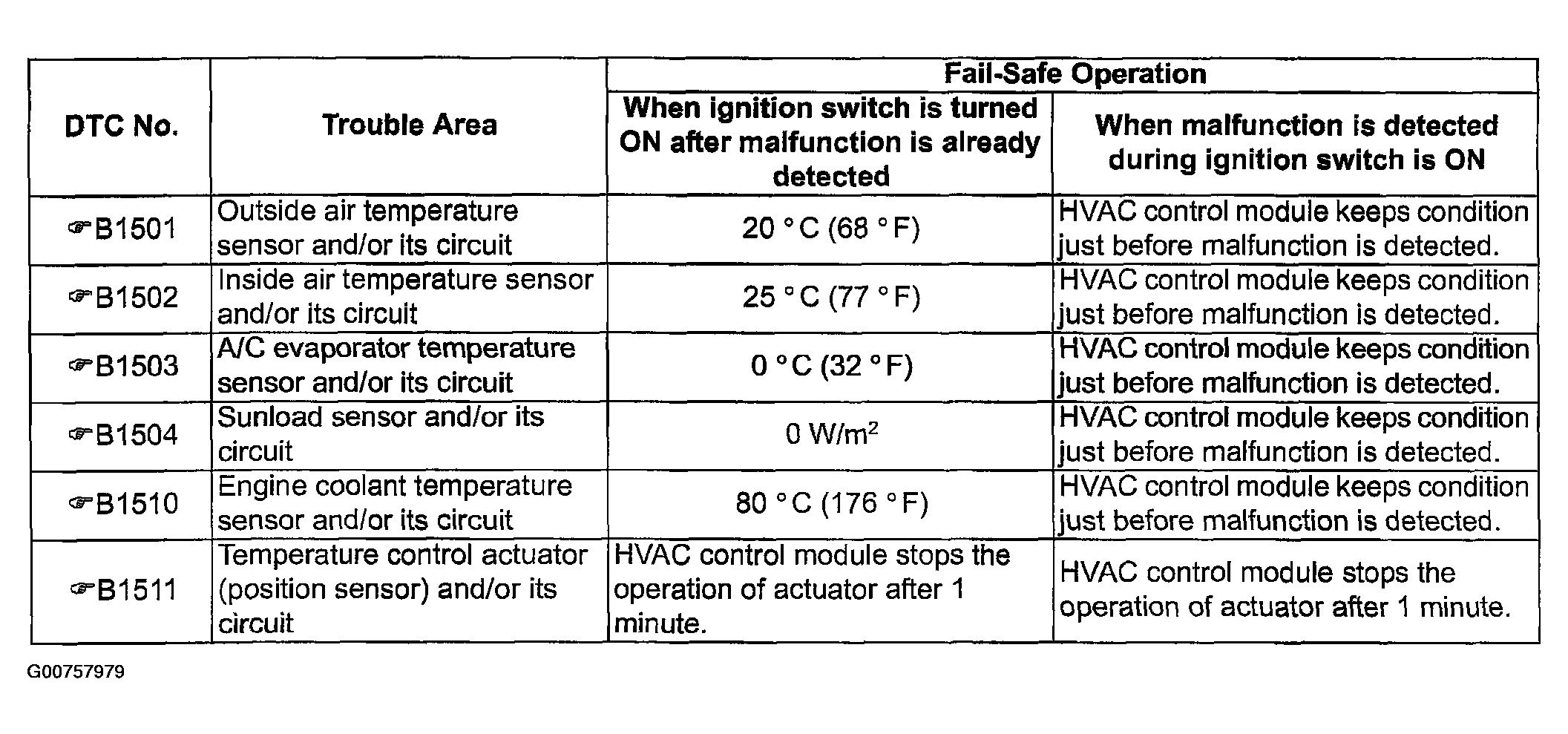

Fig 2: Fail-Safe Table (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
