Tightening Torque Specifications
WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
Torque Specifications
| Fastening part | Tightening torque | ||
|---|---|---|---|
| N.m | kg.m | lb.ft | |
| 8 mm (0.31 in.) pipe | 15 | 1.5 | 11.0 |
| 16 mm (0.63 in.) pipe | 25 | 2.5 | 18.0 |
| Cap | 12.5 | 1.25 | 9 1.8 |
| Dual pressure switch | 10 | 1.0 | 7.5 |
| Tension pulley bolt | 25 | 2.5 | 18.5 |
| Compressor mounting bolt | 23 | 2.3 | 17.0 |
| Armature plate nut | 14 | 1.4 | 10.5 |
| Armature plate bolt | 13 | 1.3 | 9.0 |
NOTE:
The specified tightening torque is also described in the following.

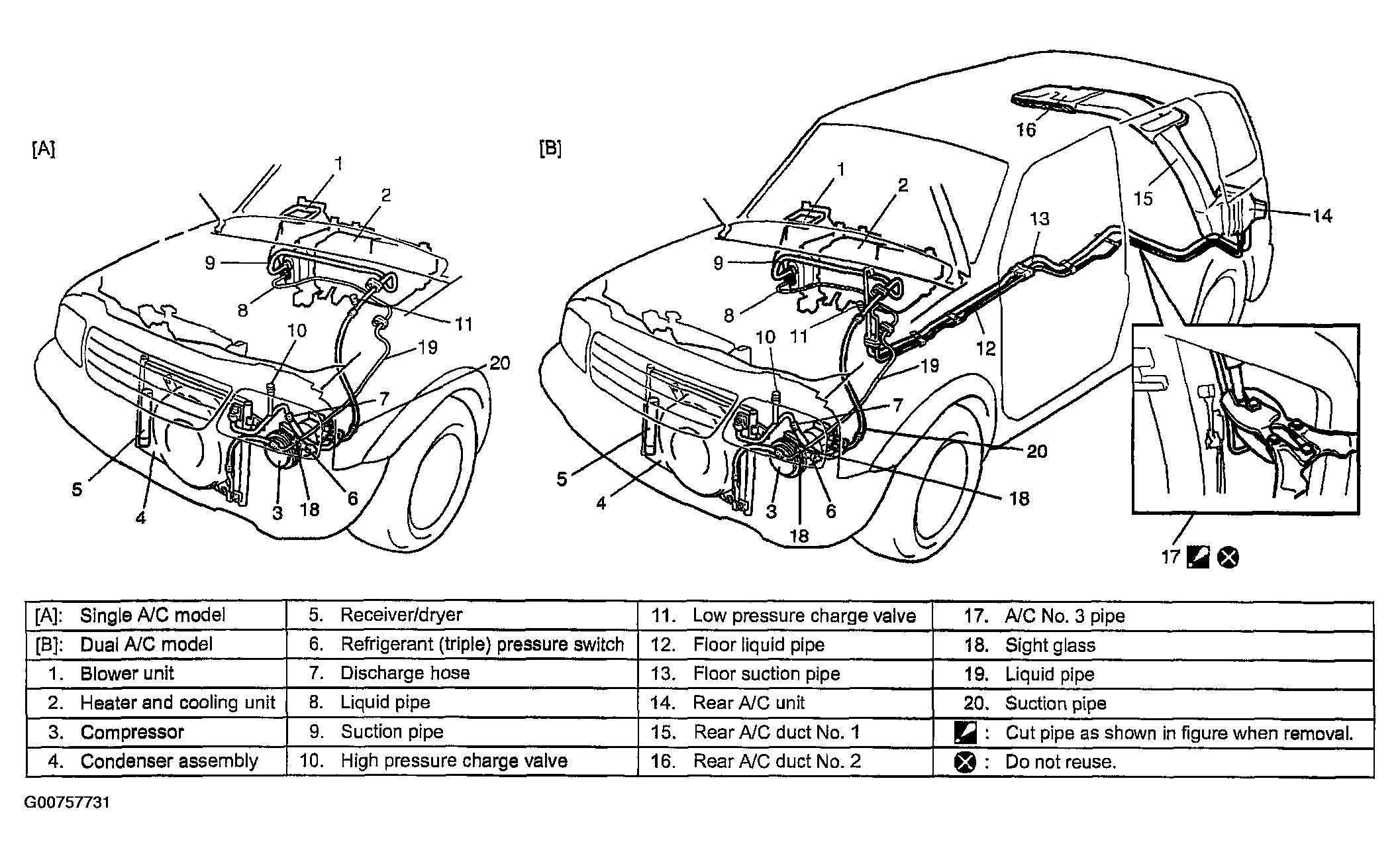

- "A/C Components Location for H27 Engine Model: Manual Type", see Figure.
- REAR BLOWER MOTOR SWITCH COMPONENTS FOR H27 ENGINE MODEL

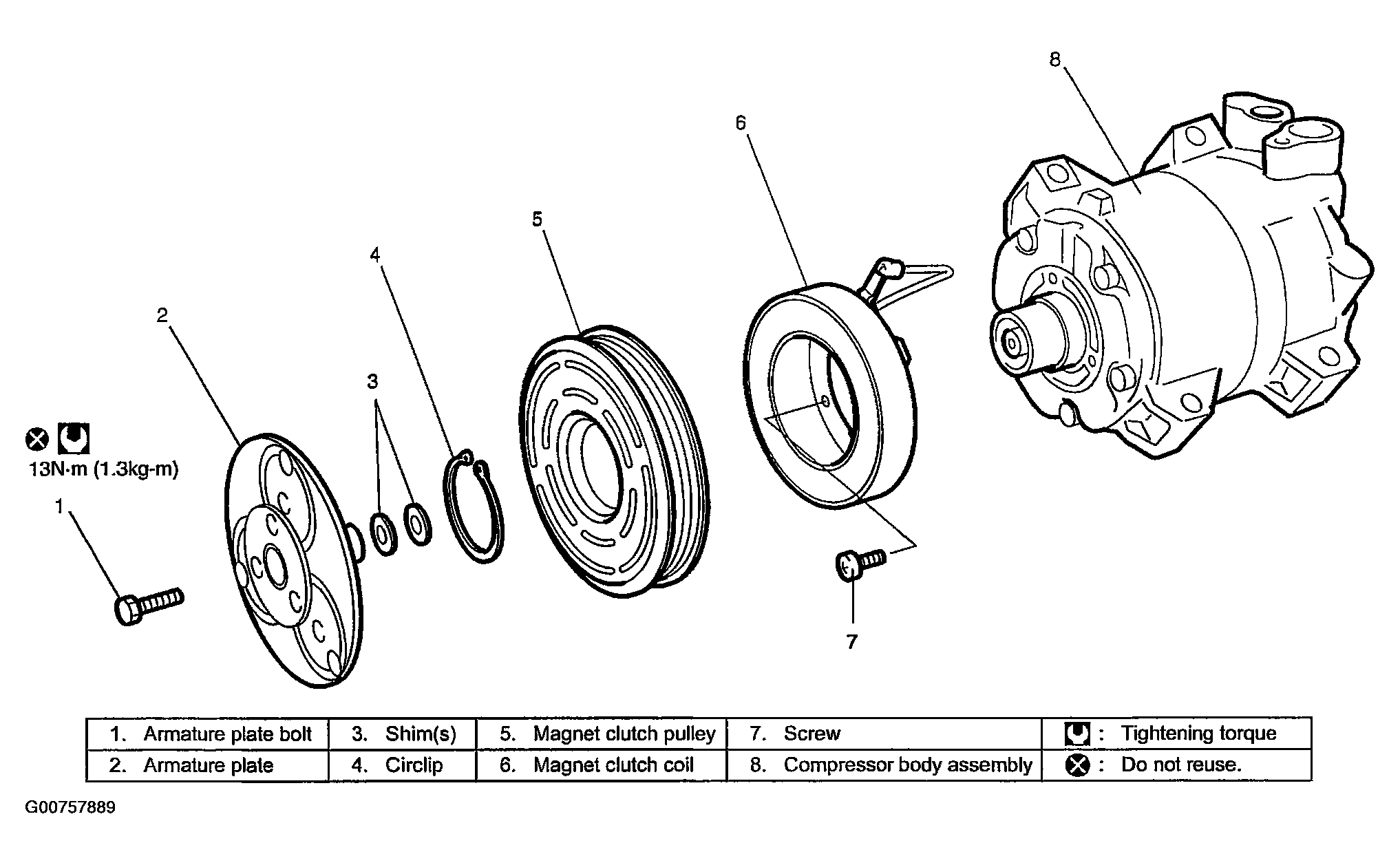

- "Magnet Clutch Components for H25 Engine Model: Manual Type", see Figure.

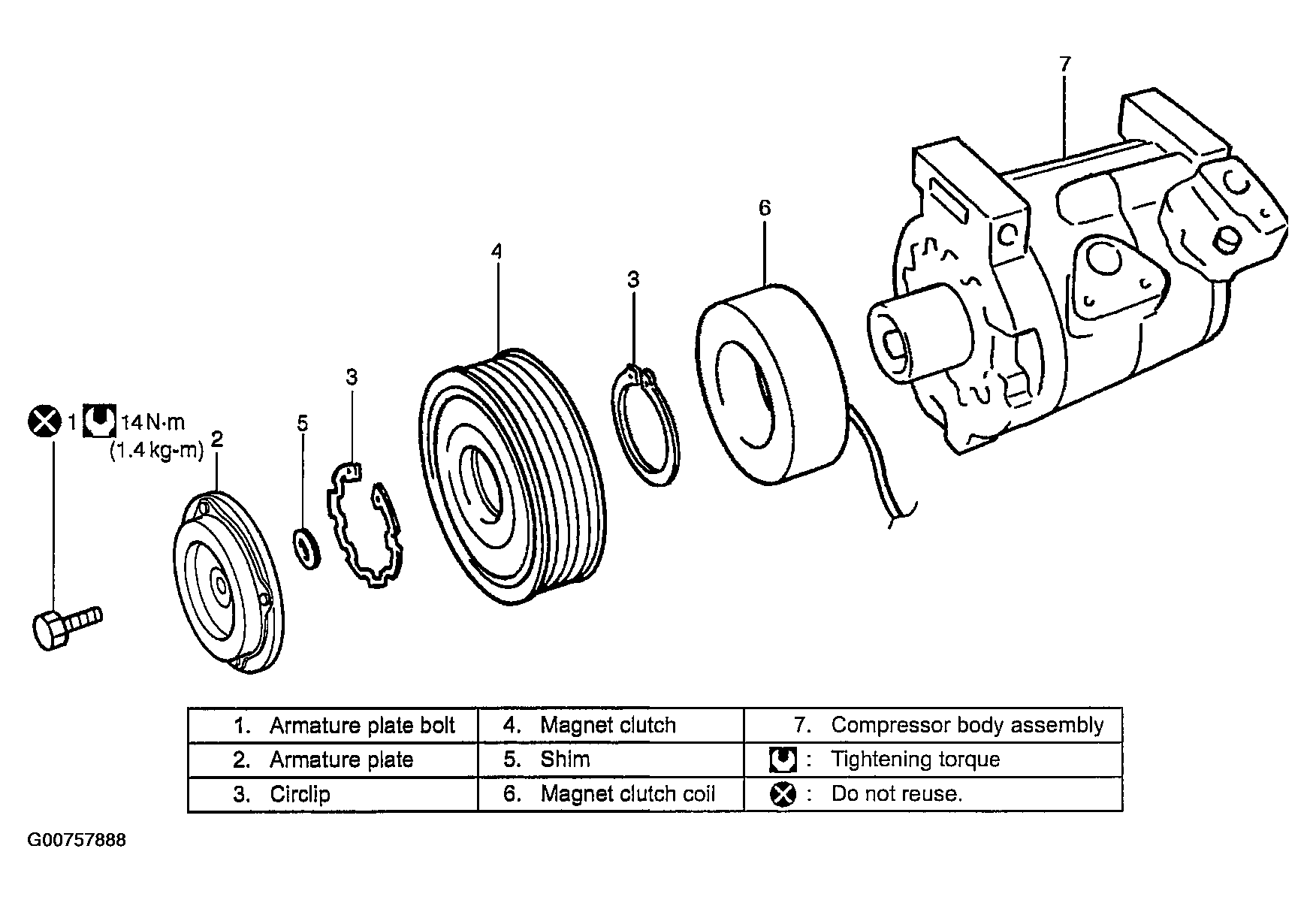

- "Magnet Clutch Components for H27 Engine Model: Manual Type", see Figure.
