Rear Blower Motor Resistor Inspection for H27 Engine Model
WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

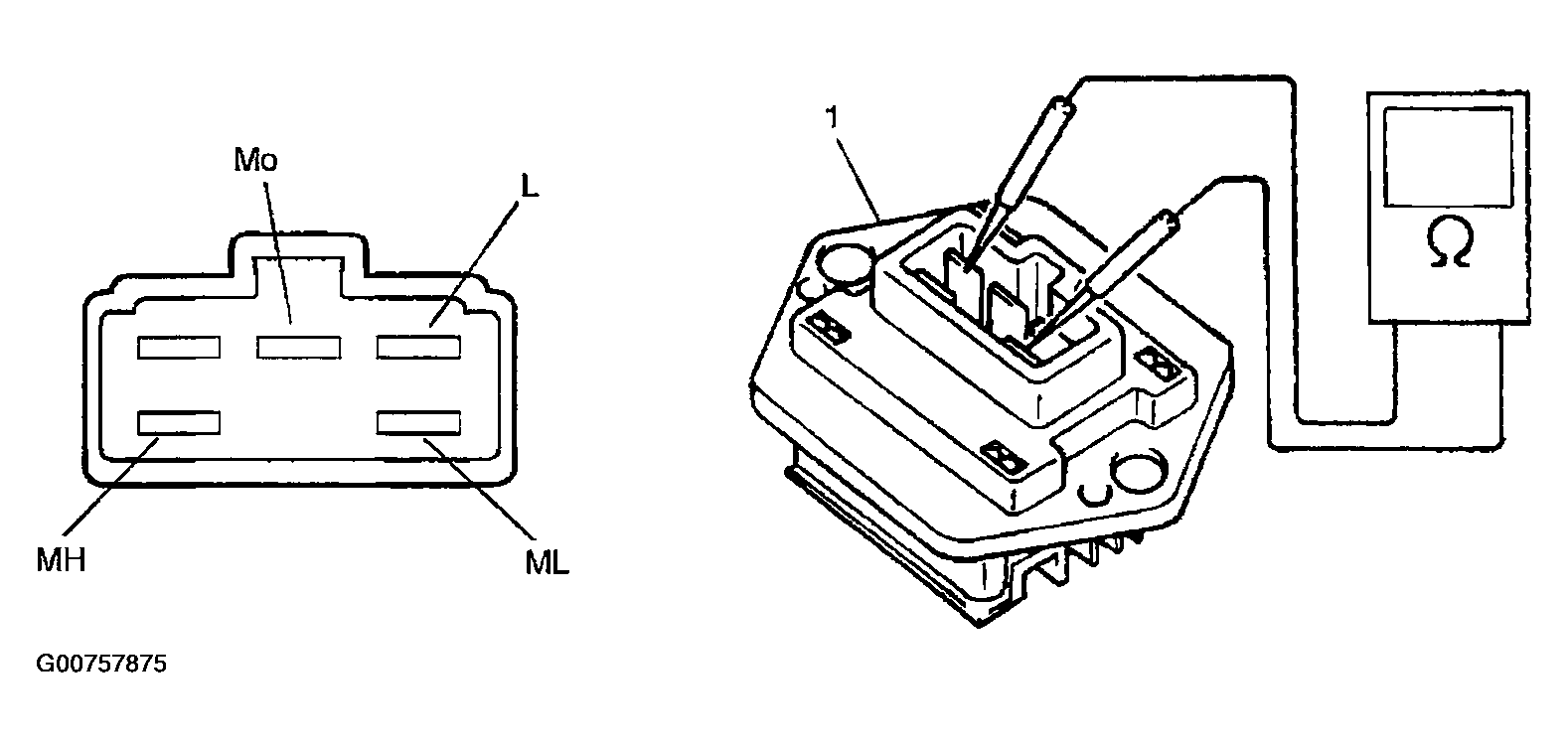

Measure each terminal-to-terminal resistance.
If measured resistance is incorrect, replace rear blower motor resistor (1).
Rear blower motor resister resistance
- "Mo" - "L": Approx. 2.4 ohms
- "Mo" - "ML": Approx. 1.2 ohms
- "Mo" - "MH": Approx. 0.6 ohm
