Operation Procedure for Charging A/C with Refrigerant: Recovery

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When discharging refrigerant out of A/C system, always recover it by using refrigerant recovery and recycling equipment (1). Discharging it into atmosphere would cause adverse effect to environments.
When handling recovery and recycling equipment, be sure to follow the instruction manual for the equipment.

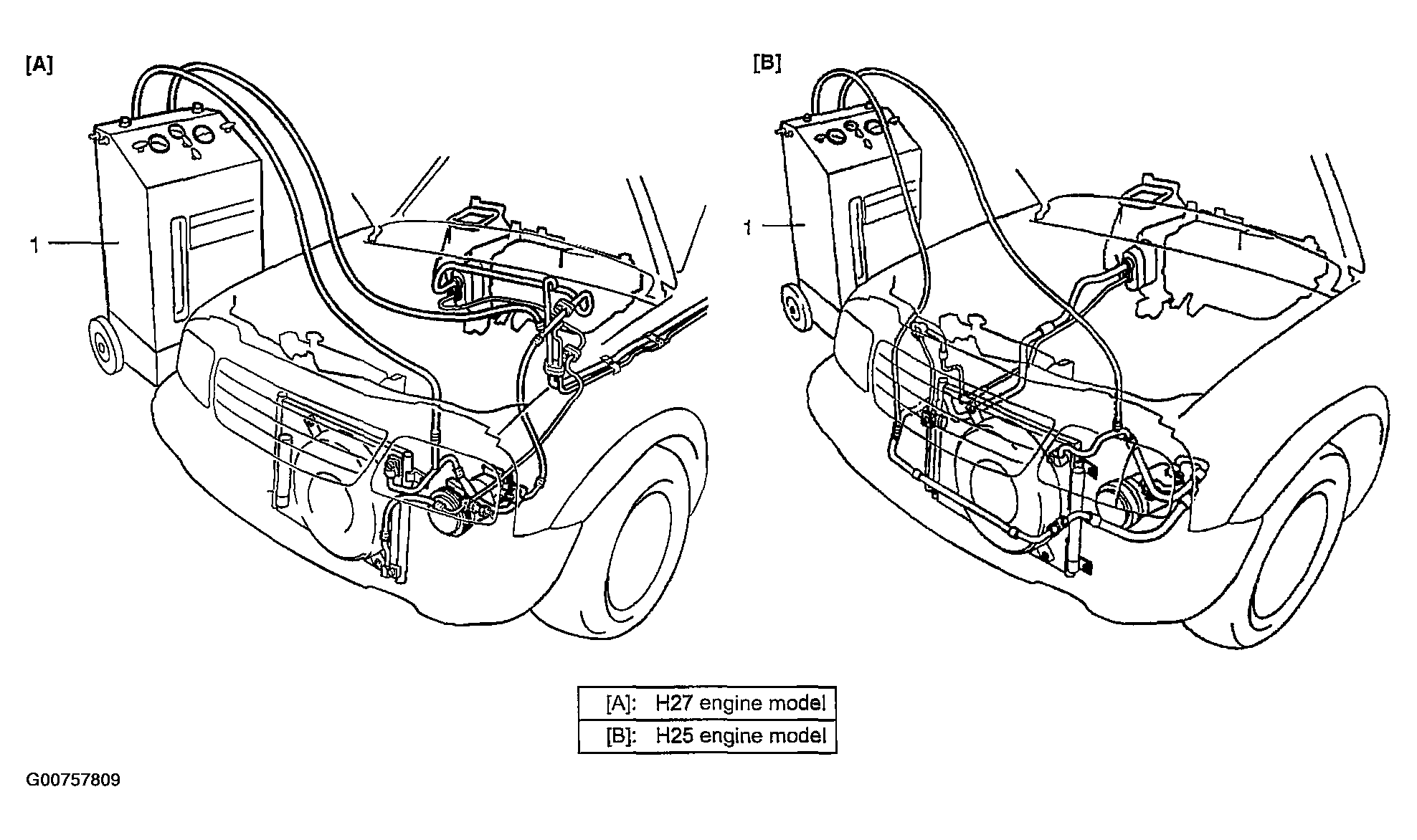

Fig 1: Recovering By Using Refrigerant Recovery & Recycling Equipment

Courtesy of SUZUKI OF AMERICA CORP.
