Reference Waveform

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The shape of waveform varies with engine coolant temperature.

Fig 1: Reference Waveform Chart

G00757858

Courtesy of SUZUKI OF AMERICA CORP.

Waveform at 0 °C (32 °F)

Fig 2: Measuring Waveform At 0 °C (32 °F)

G00757859

Courtesy of SUZUKI OF AMERICA CORP.

Waveform at 40 °C (104 °F)

Fig 3: Measuring Waveform At 40 °C (104 °F)

G00757860

Courtesy of SUZUKI OF AMERICA CORP.

Waveform at 80 °C (176 °F)

Fig 4: Measuring Waveform At 80 °C (176 °F)

G00757861

Courtesy of SUZUKI OF AMERICA CORP.

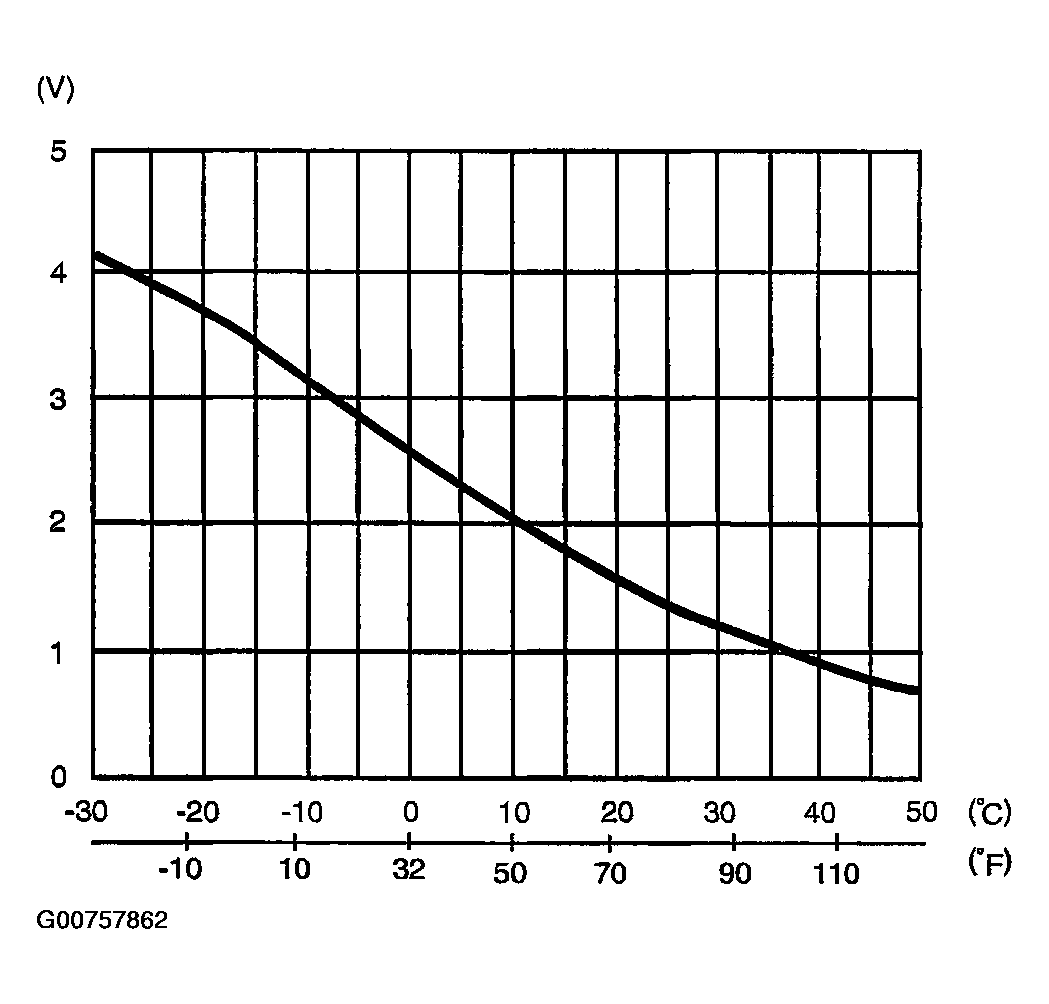

Reference Graph

Fig 5: Reference Graph

G00757862

Courtesy of SUZUKI OF AMERICA CORP.
