A/C Condenser Cooling Fan Control Pressure Switch

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect manifold gauge set to charging valve.
  2. Run engine and A/C switch ON.
  3. Check continuity and no continuity between "c" and "d" terminals of A/C refrigerant pressure switch according to A/C refrigerant pressure as shown.

    If operation is not as specified, replace A/C refrigerant pressure switch.

Triple pressure switch specifications

  1. "A": Approx. 196 kPa (1.96 kg/cm2 , 27.9 psi)
  2. "B": Approx. 225 kPa (2.55 kg/cm2 , 36.3 psi)
  3. "C": Approx. 2550 kPa (25.50 kg/cm2 , 362.6 psi)
  4. "D": Approx. 3140 kPa (31.40 kg/cm2 , 446.5 psi)
  5. "E": Approx. 1080 kPa (10.80 kg/cm2 , 153.5 psi)
  6. "F": Approx. 1470 kPa (14.70 kg/cm2 , 209.0 psi)

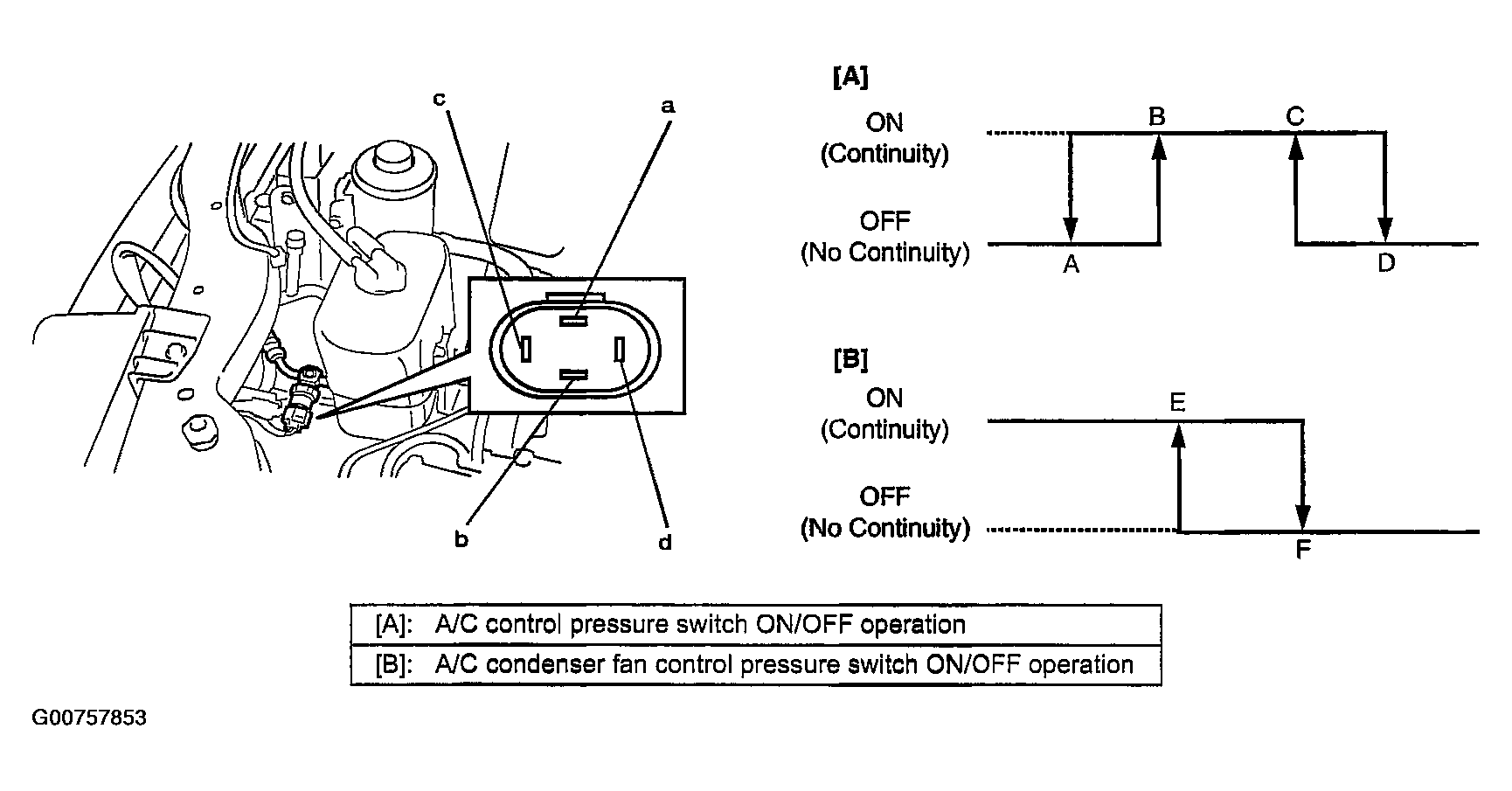

Fig 1: Checking Continuity & No Continuity Between Terminals
G00757853Courtesy of SUZUKI OF AMERICA CORP.
