A/C Compressor Drive Belt Inspection
WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

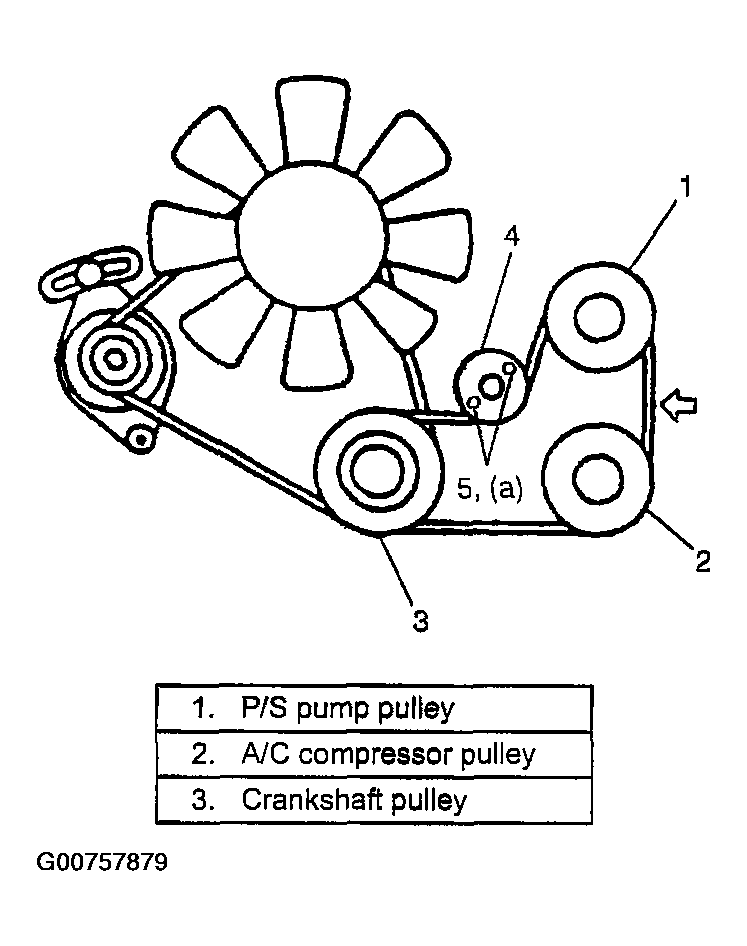

- To adjust A/C compressor drive belt tension, loosen tension pulley bolts (5) and turn tension pulley (4) using hexagon wrench.
- Adjust belt tension to specification.
Then tighten tension pulley bolts to specified torque.
Tightening torque
- Tension pulley bolt (a): 25 N.m (2.5 kg-m, 18.5 lb-ft)
