WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

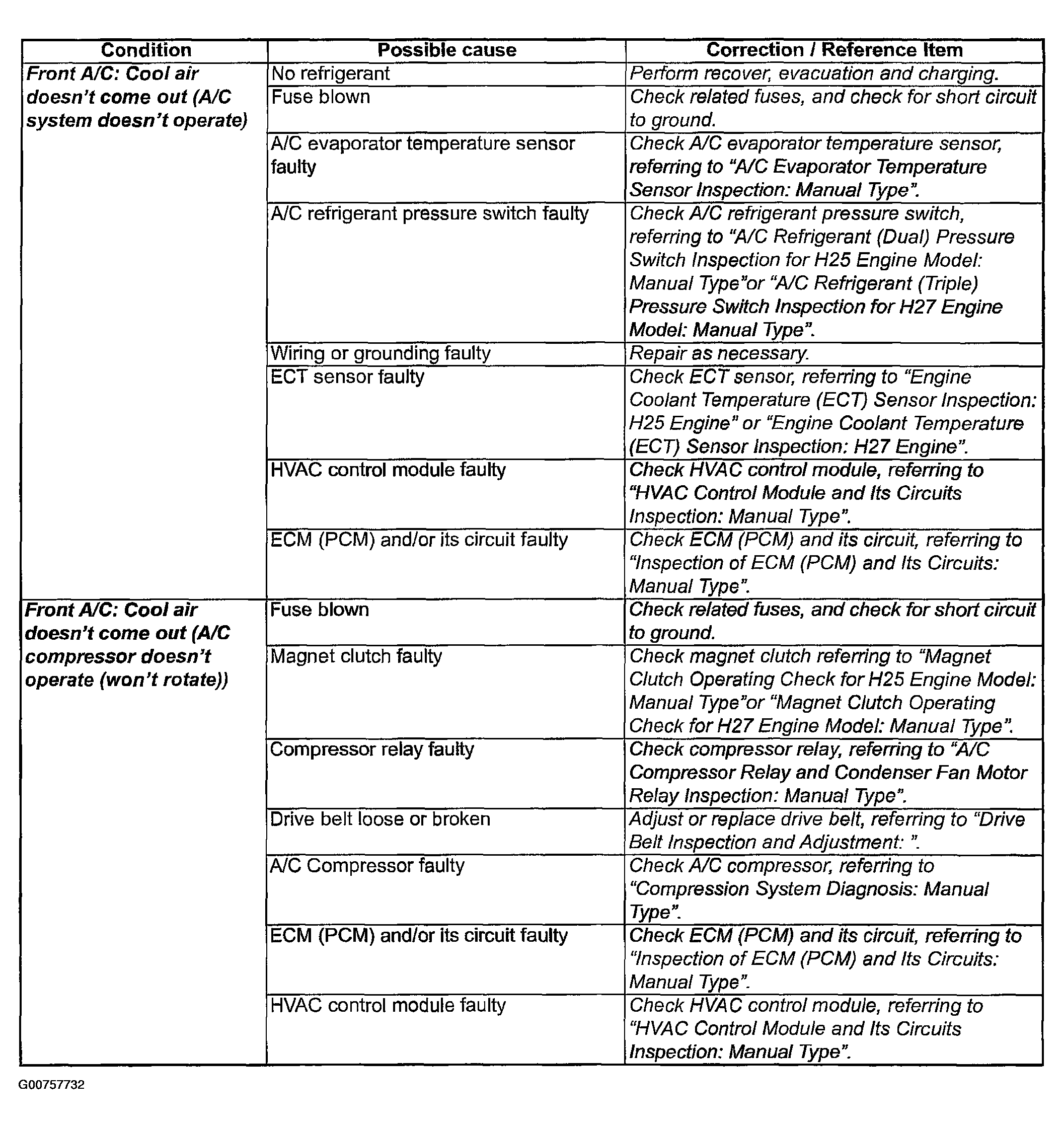

Fig 1: Main (Front) A/C System Symptom Diagnosis Chart (1 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

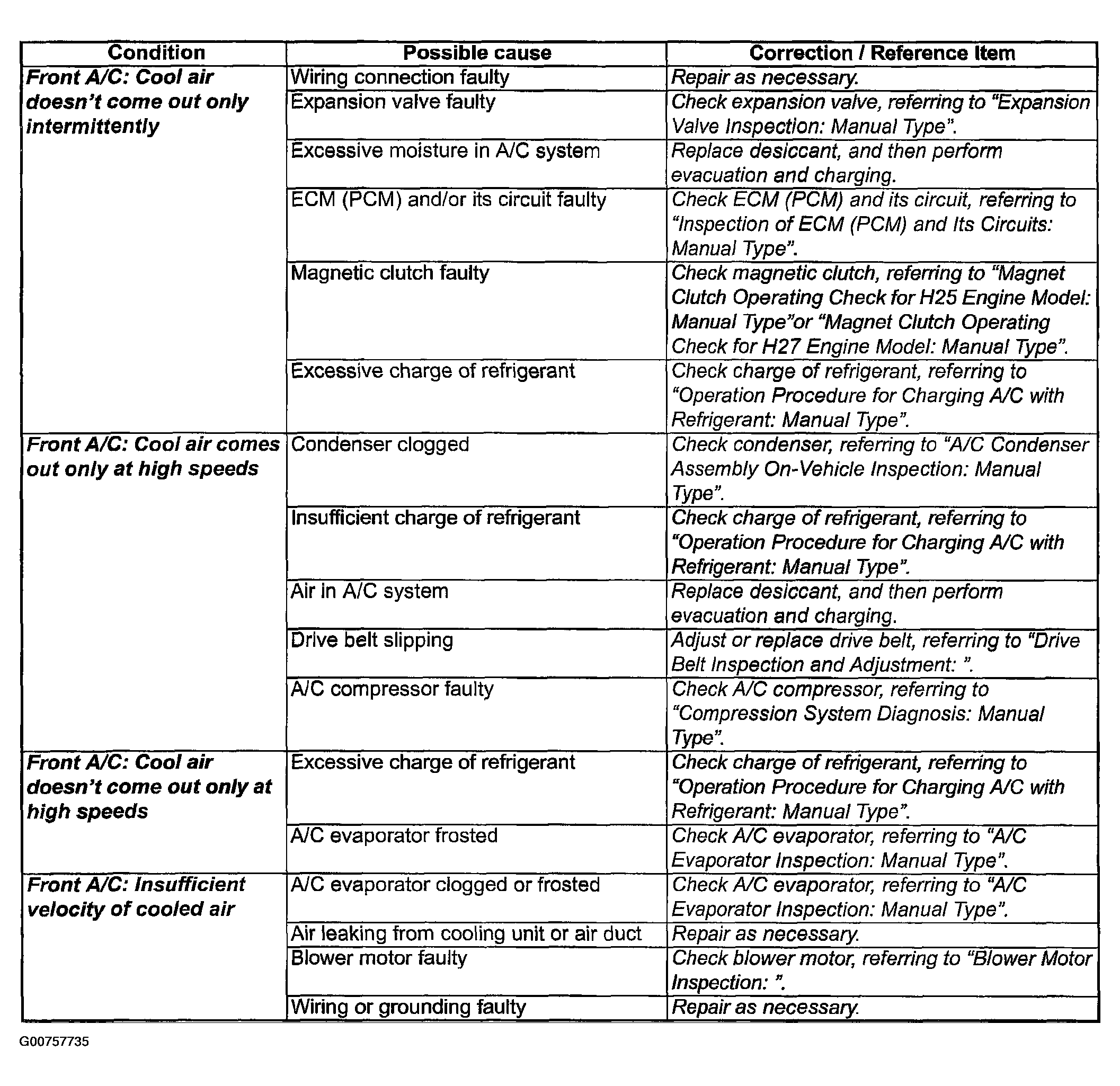

Fig 2: Main (Front) A/C System Symptom Diagnosis Chart (2 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

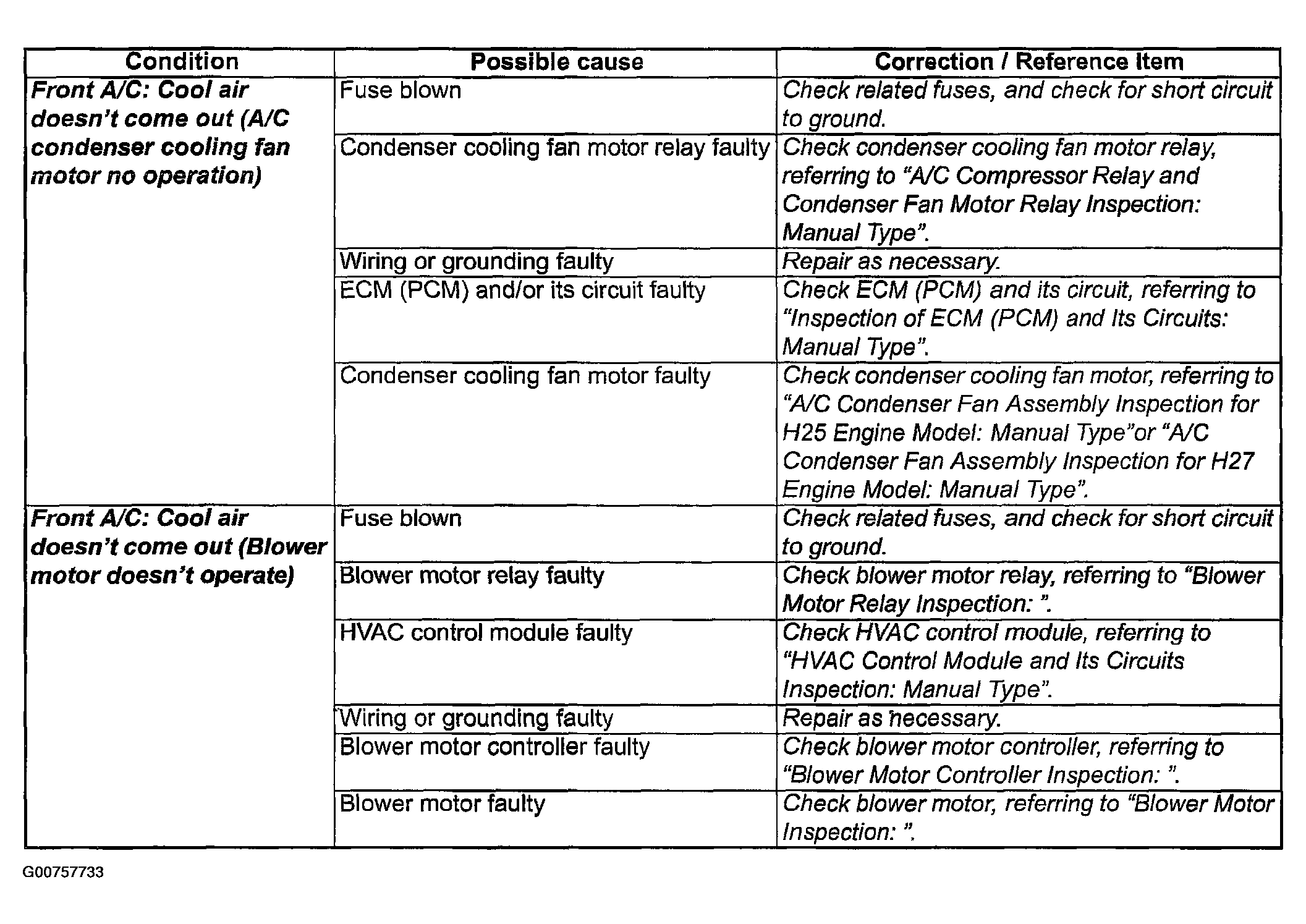

Fig 3: Main (Front) A/C System Symptom Diagnosis Chart (3 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

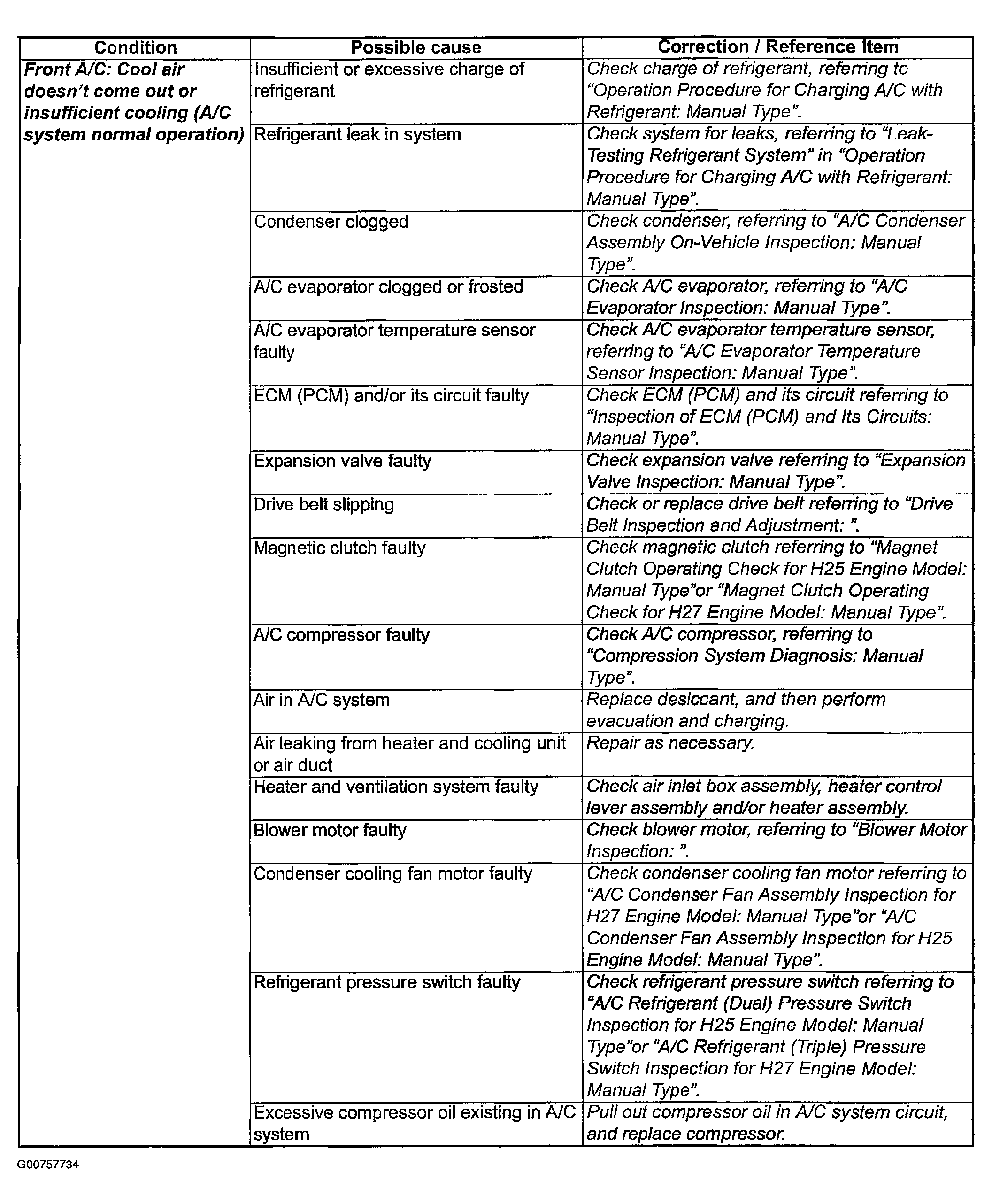

Fig 4: Main (Front) A/C System Symptom Diagnosis Chart (4 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

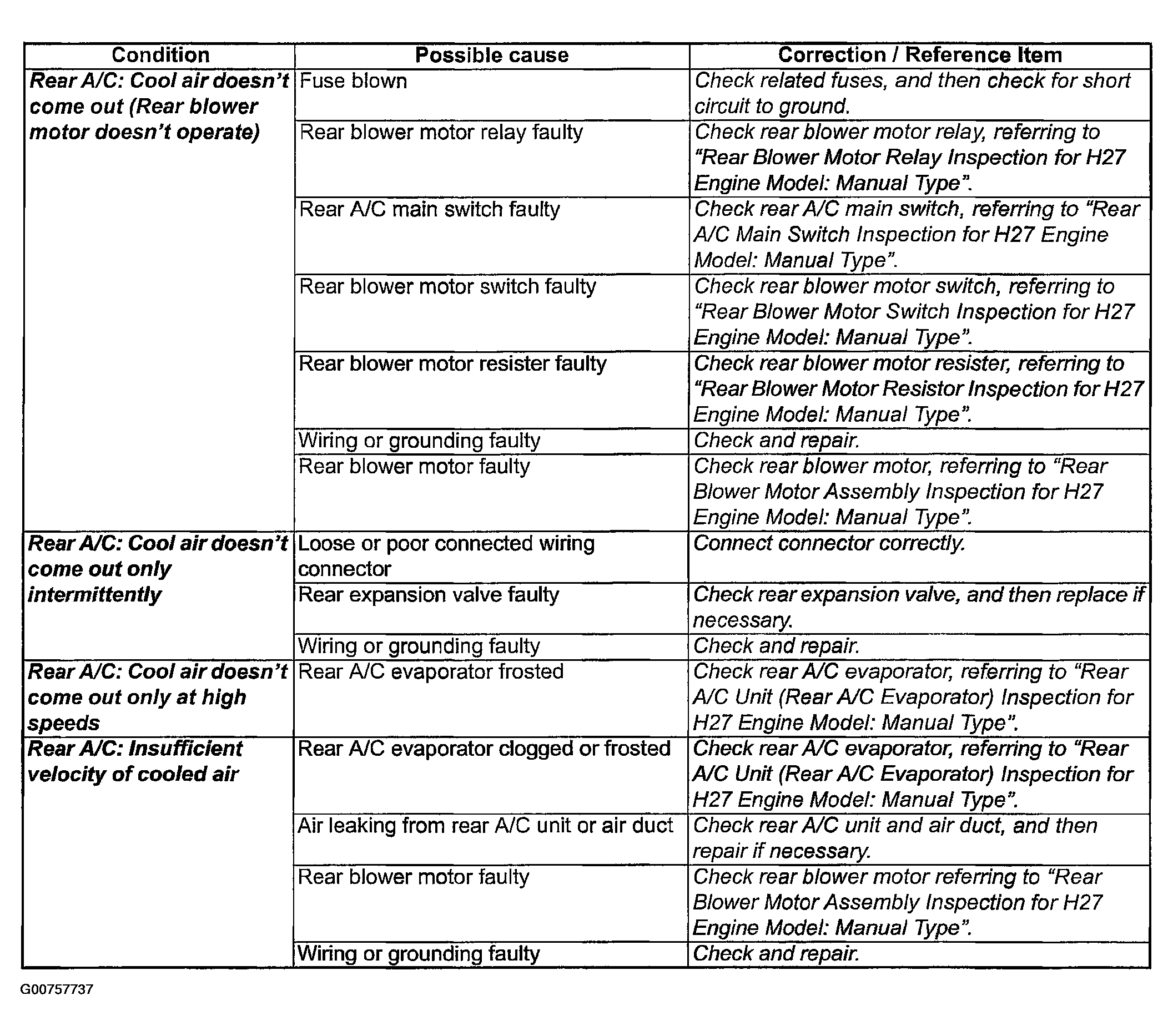

Fig 5: Rear A/C System Symptom Diagnosis Chart (H27 Engine Model - 1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

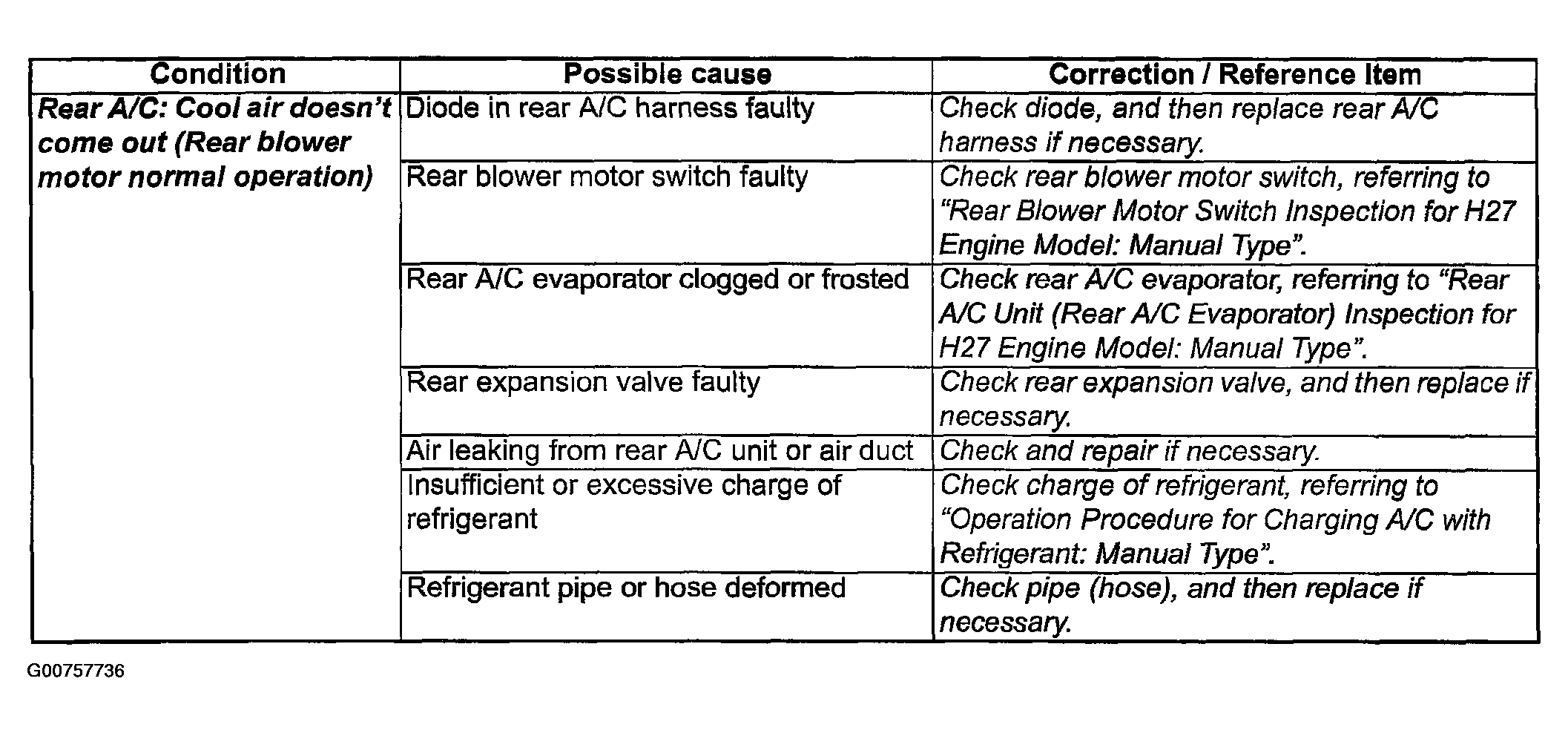

Fig 6: Rear A/C System Symptom Diagnosis Chart (H27 Engine Model - 2 Of 2)
