A/C Components Location

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

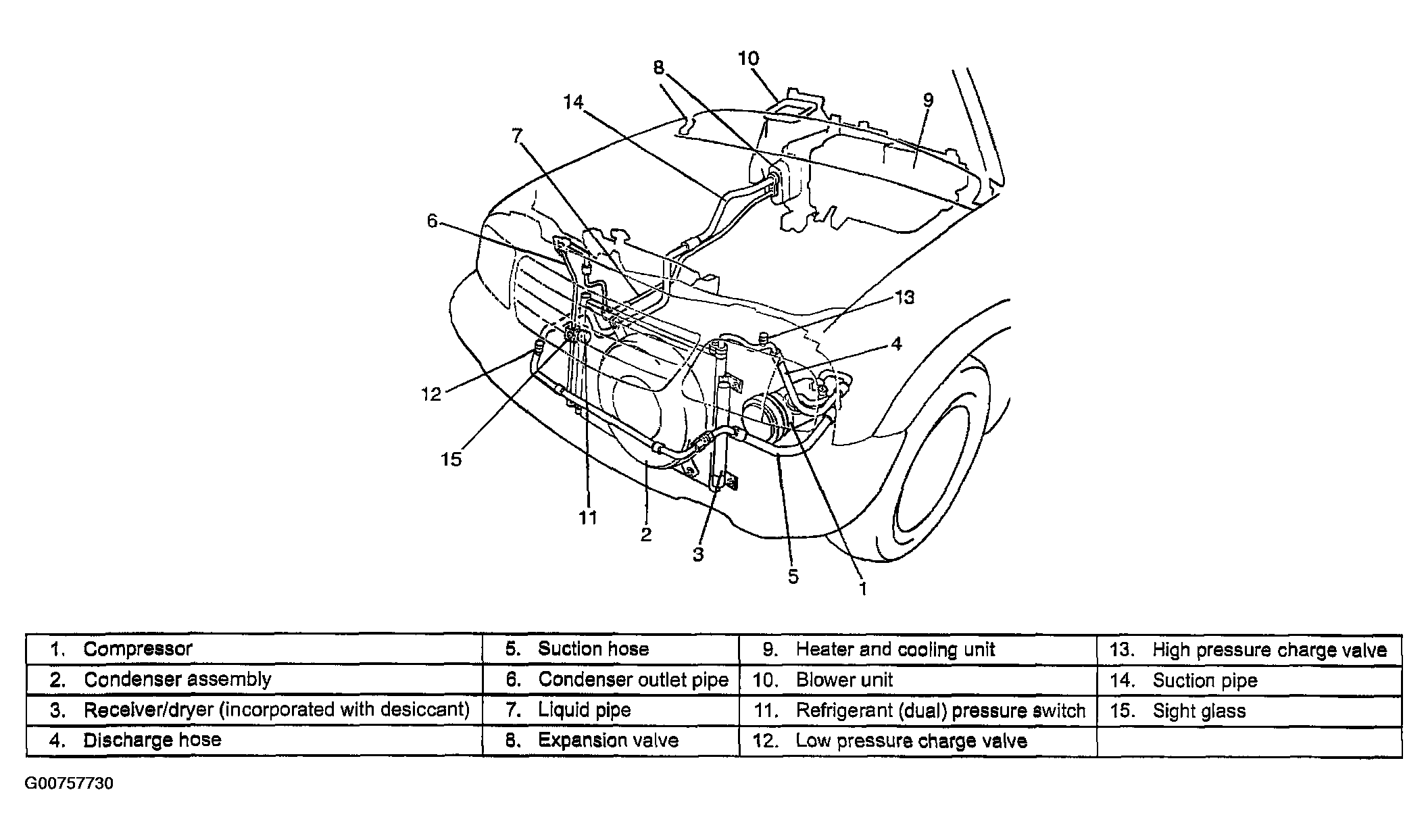

Fig 1: Identifying A/C Components Location (H25 Engine Model)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying A/C Components Location (H27 Engine Model)

Courtesy of SUZUKI OF AMERICA CORP.
