HVAC Control Module Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal procedure, noting the following item.

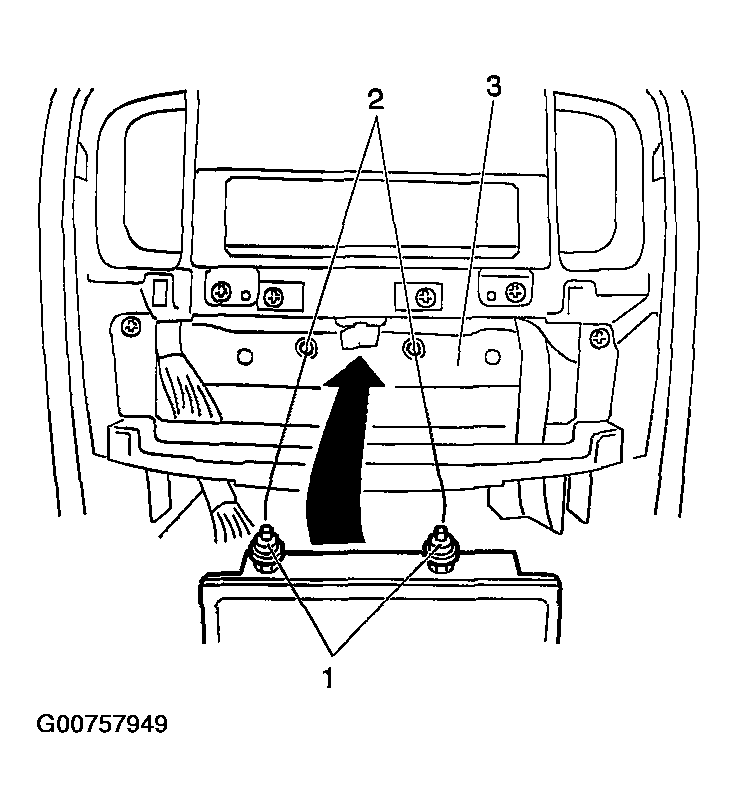

- When installing center garnish, align rubber bushing (1) with BCM installation hole (2) of instrument panel member (3).

  Fig 1: Installing Center Garnish
  Courtesy of SUZUKI OF AMERICA CORP.

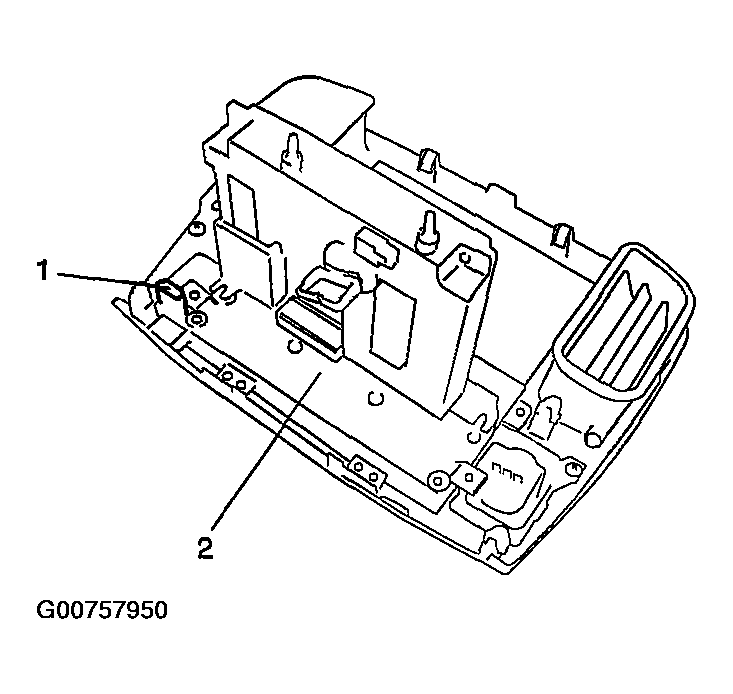

- For vehicle with automatic A/C system, fit aspirator hose in inside air temperature sensor duct (1) of HVAC control module (2).

  Fig 2: Fitting Aspirator Hose Inside Air Temperature Sensor Duct
  Courtesy of SUZUKI OF AMERICA CORP.
- Enable air bag system.
  For H25 engine model, refer to AIR BAG RESTRAINT SYSTEMS .

  For H27 engine model, refer to AIR BAG RESTRAINT SYSTEMS .
