Blower Motor Controller Inspection

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Measure each terminal-to-terminal resistance on blower motor controller.

If measured resistance is incorrect, replace blower motor controller with new one.

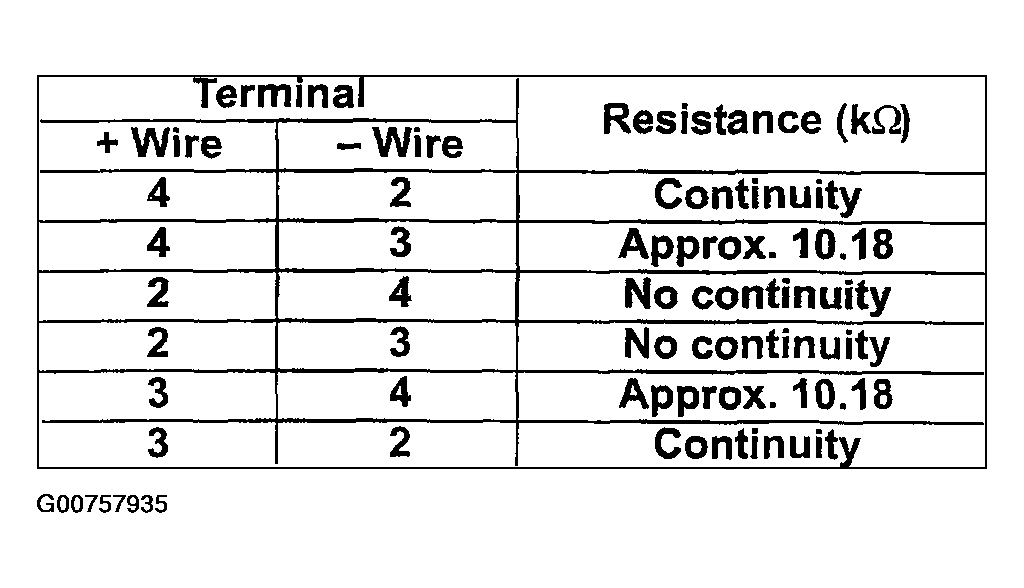

Fig 1: Blower Motor Controller Resistance Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Blower Motor Controller Resistance Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
