Tightening Torque Specifications

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

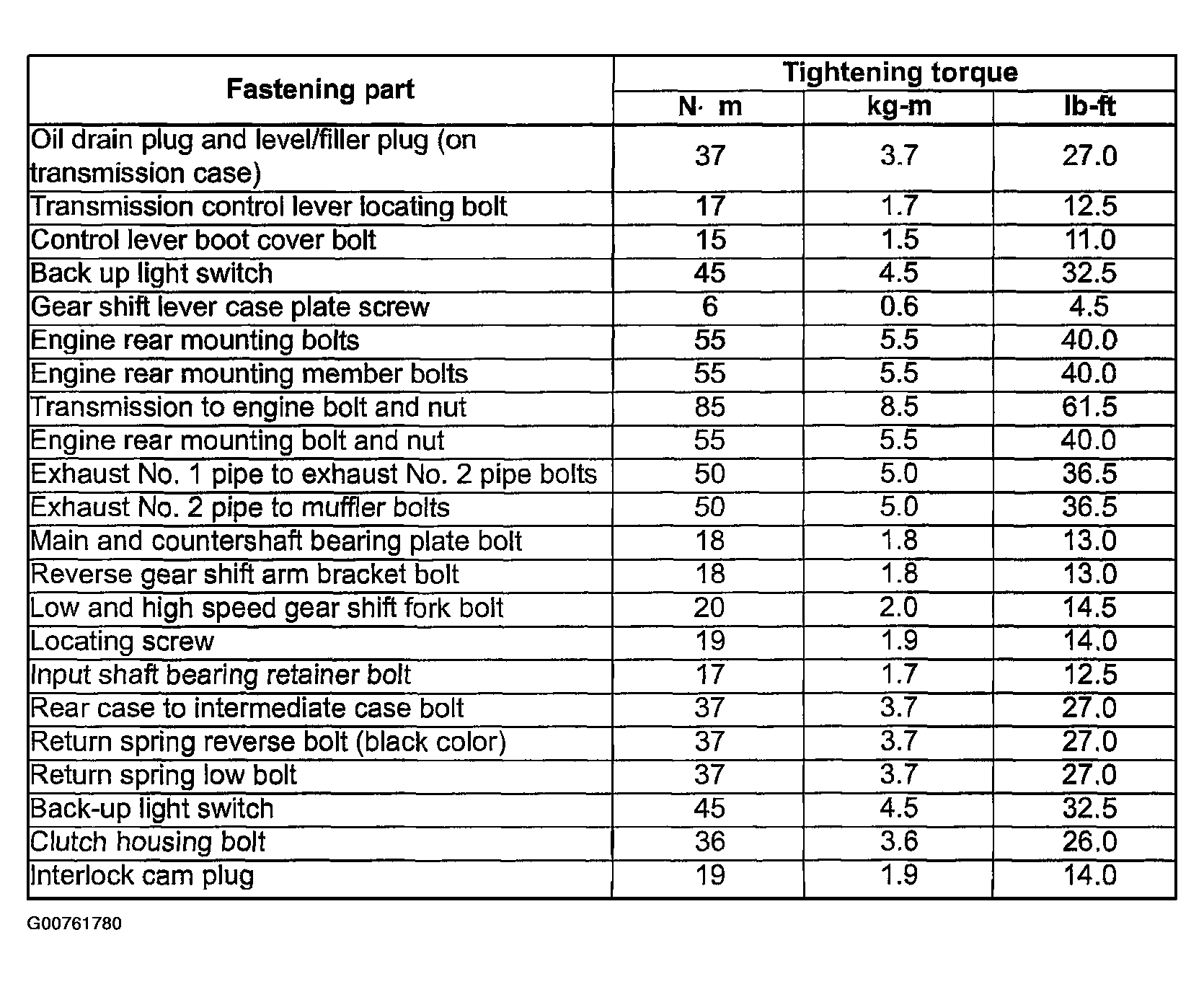

Fig 1: Tightening Torque Specifications Table
G00761780Courtesy of SUZUKI OF AMERICA CORP.
NOTE: The specified tightening torque is also described in the following: MANUAL TRANSMISSION CASE COMPONENTS  and GEAR SHIFTER COMPONENTS  .
