Input Shaft Disassembly & Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Remove circlip of input shaft (1) and pull out bearing (2) with bearing puller (3) and hydraulic press.

CAUTION: Sealed bearing must not be washed. Replace it with new one when required.

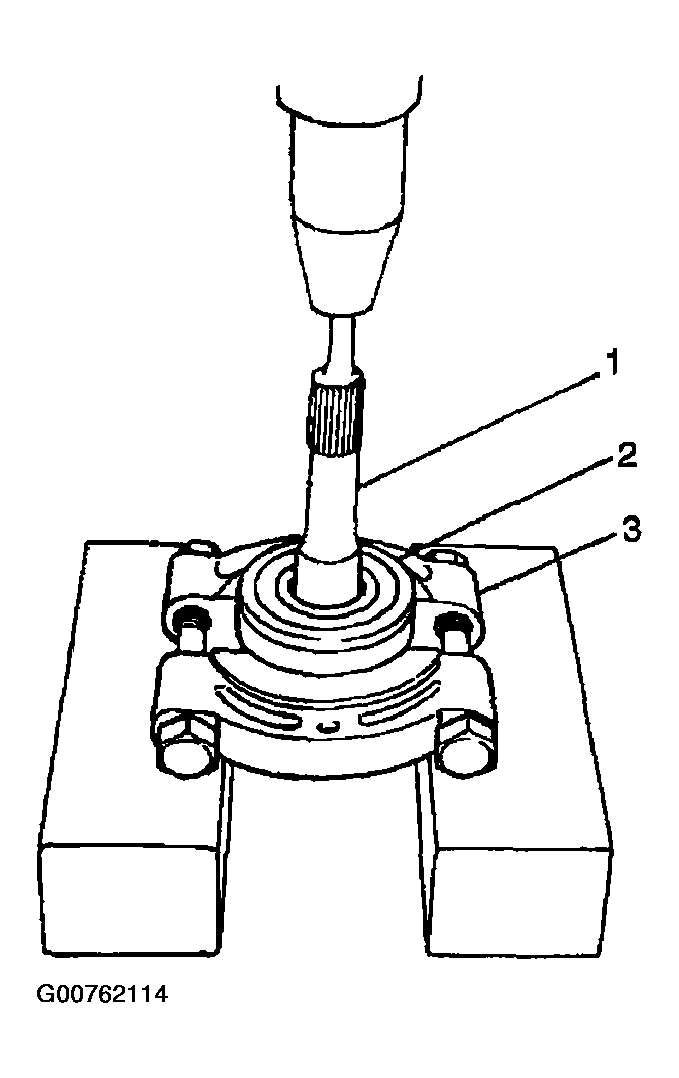

Fig 1: Pulling Out Bearing
G00762114Courtesy of SUZUKI OF AMERICA CORP.
