Input Shaft Disassembly & Assembly: Assembly

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Bring bearing (1) so that its groove for C-ring is in the front of input shaft (2) and press-fit with special tools and hydraulic press.
Special tool

(A): 09940-51710

(B): 09924-07720

(C): 09924-07710

Fig 1: Press-Fitting Input Shaft Bearing
Courtesy of SUZUKI OF AMERICA CORP.
Select circlip (1) that will make thrust clearance of bearing 0.1 mm (0.0039 in) or less and install it.

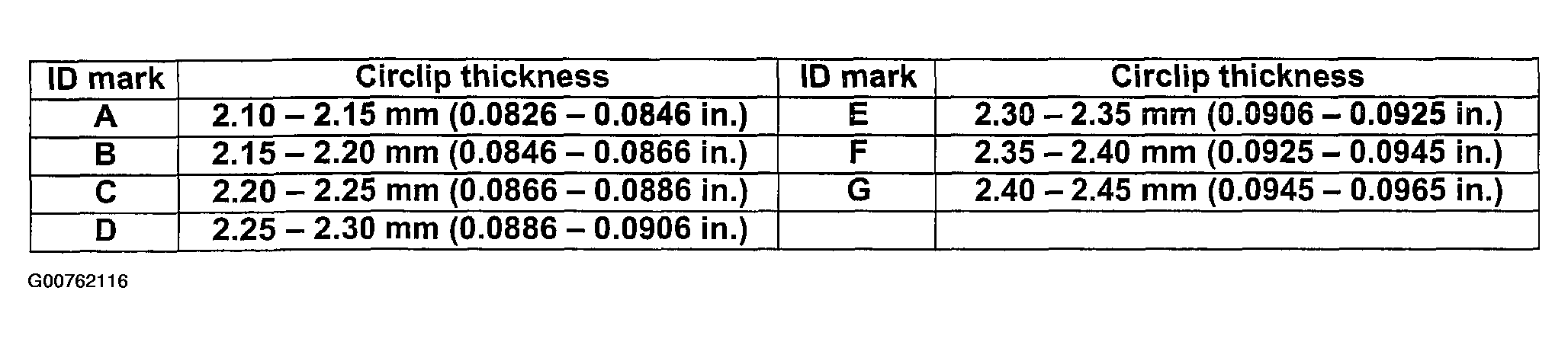

Fig 2: Circlip Thickness Specifications Chart
Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Measuring Circlip Thrust Clearance
Courtesy of SUZUKI OF AMERICA CORP.

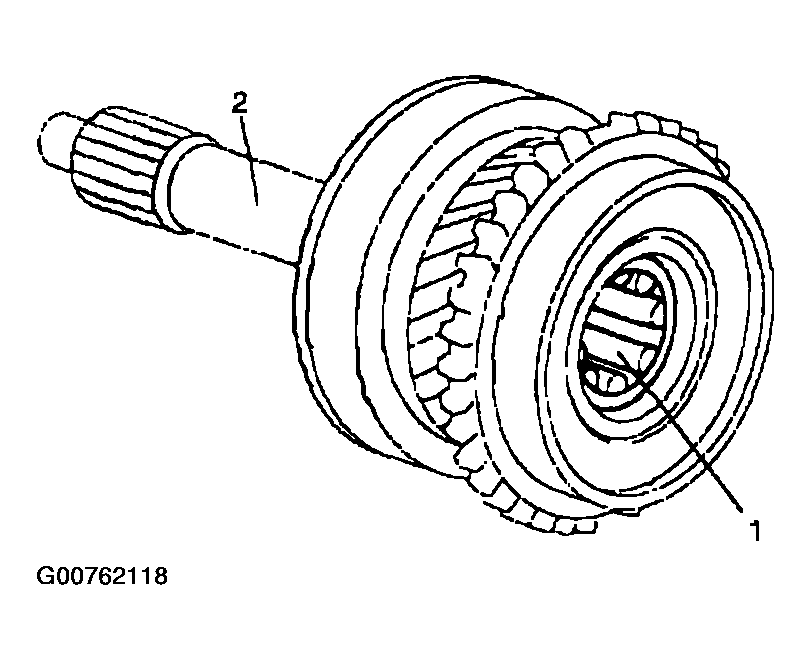

Install roller bearing (1) to input shaft (2).

Fig 4: Installing Bearing Roller To Input Shaft
Courtesy of SUZUKI OF AMERICA CORP.
