Gear Shift Lever Case Disassembly & Assembly: Disassembly
WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
- Remove case plate.

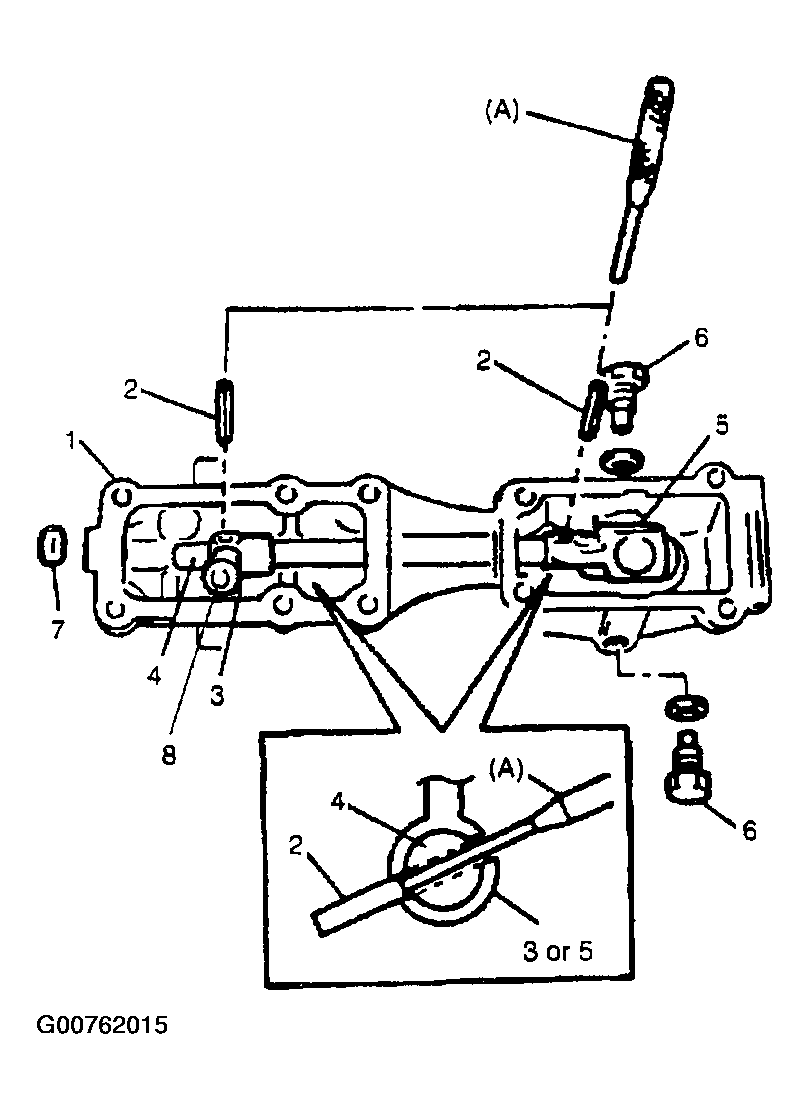

- With case supported with soft jawed vise, remove lever locating bolts (6).NOTE: Use aluminum plates between vise and case to protect case against damage.
- Using special tool, drive spring pin into gear shift arm (5) as far as the position shown in the figure.CAUTION: When driving spring pin (2), use care not to damage gear shift lever case (1).
Special tool
(A): 09922-85811
- Likewise, drive spring pin (2) into gear shift lever (3) as far as the position shown in the figure.CAUTION: When driving spring pin (2), use care not to damage gear shift lever case (1).
Special tool
(A): 09922-85811
- Remove case plug (7).
- Pull out gear shift shaft (4) from gear shift lever case (1) and take out gear shift lever (3).
- Remove gear shift lever bush (8).
