Transmission Fluid Temperature Sensor A and B Inspection
WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

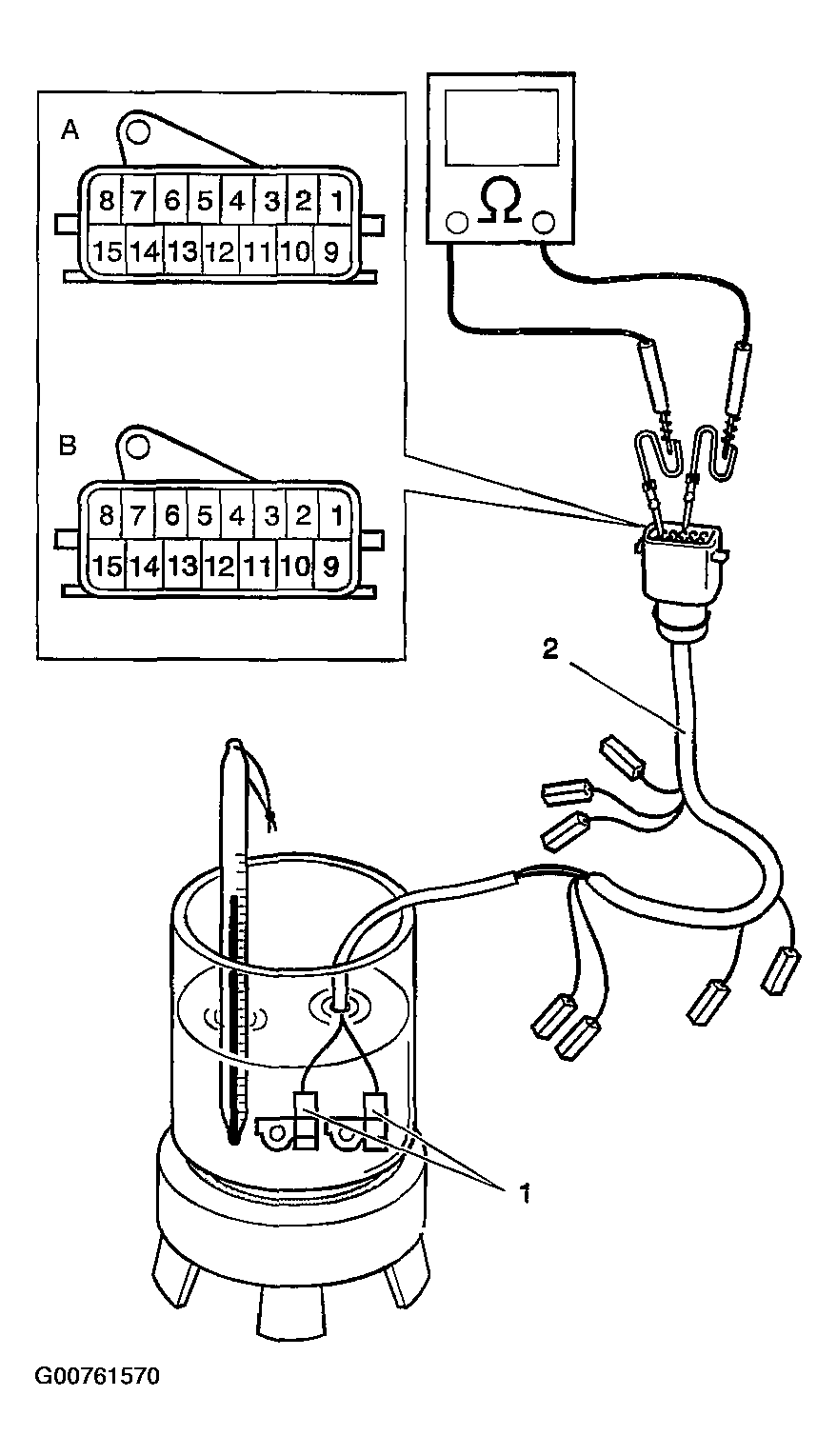

Immerse transmission fluid temperature sensor A and B (1) in water or oil. Check transmission fluid temperature sensor A or B resistance between terminals of connector. Thus make sure its resistance decreases as temperature rises.
Transmission fluid temperature sensor A and B resistance
- 10 °C (50 °F): 6.445 k ohm
- 25 °C (77 °F): 3.5 k ohm
- 110 °C (230 °F): 0.247 k ohm
