Gear Shift Lever Case Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Wash and inspect each part and replace if necessary. Also check item as described below and correct whatever necessary carefully by using reamer, oilstone and the like, wash it thoroughly and reassemble it.

    Item to be checked is;

    • Shift shaft should go into case smoothly.
  2. Insert shift shaft (1) as shown in the figure while making sure that inner parts are in proper direction.
    NOTE:
    • Cut off portion (3) in shift shaft (1) should face downward when shift shaft (1) is installed.
    • Shift lever (2) should be installed at the same time.
    Fig 1: Inserting Shift Shaft
    G00761839Courtesy of SUZUKI OF AMERICA CORP.
  3. Drive in spring pins (2) for gear shift lever (5) and shift arm (7).
    NOTE: When driving in spring pins, position their slits 180° +/- 30° apart.

    Special tool

    (A): 09925-78210

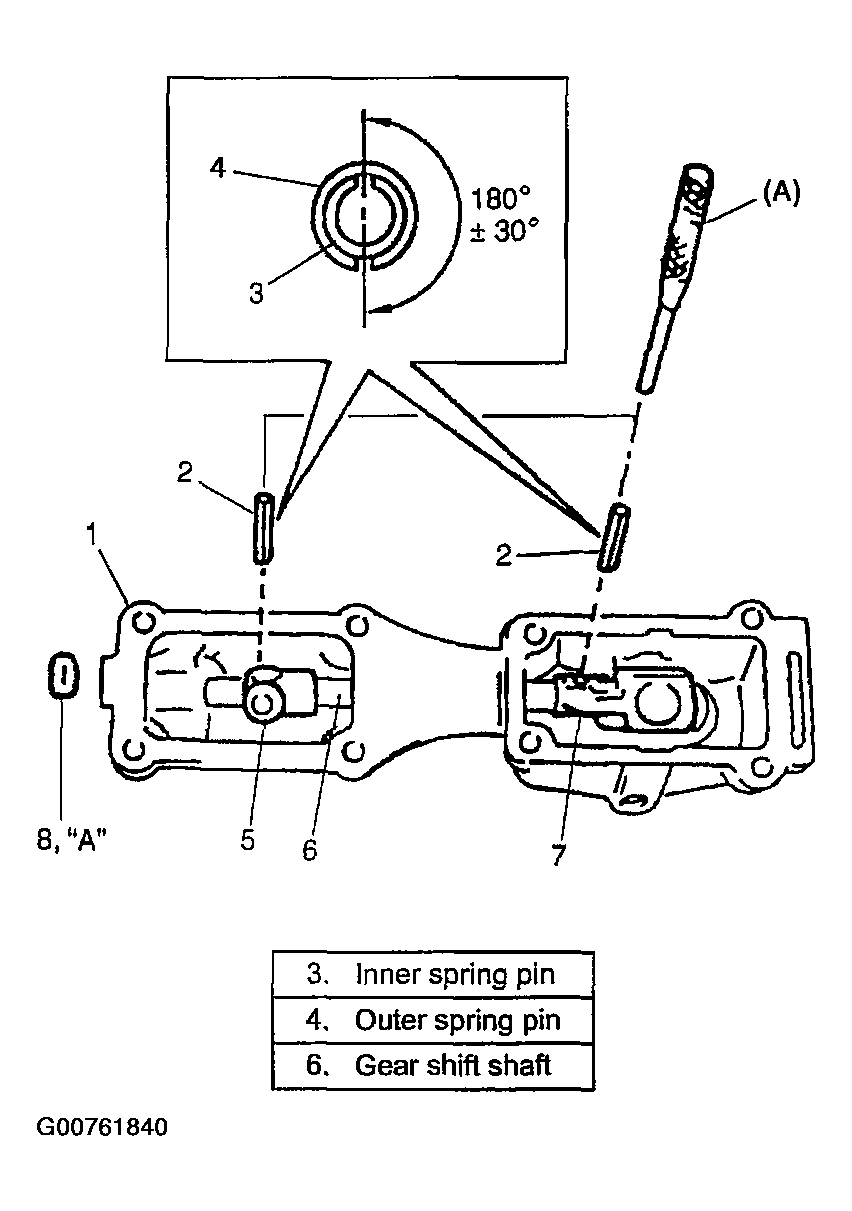

    Fig 2: Driving In Spring Pins For Gear Shift Lever & Shift Arm
    G00761840Courtesy of SUZUKI OF AMERICA CORP.
  4. Apply sealant to new case plug (8) and drive it into lever case (1).

    "A": Sealant 99000-31110

  5. Clean mating surface of gear shift lever case (1) and case plate (2).
  6. Tighten screws to specified torque.

    Tightening torque

    Gear shift lever case plate screw (b): 6 N.m (0.6 kg-m, 4.5 lb-ft)

    Fig 3: Installing Gear Shift Lever Case
    G00761841Courtesy of SUZUKI OF AMERICA CORP.
  7. Install gear shift lever case (2) to transmission without using sealant for functional check.
  8. Install shift control lever and check to make sure that it shifts smoothly according to shift pattern as shown in the figure.
NOTE:
  • Apply thread lock cement "C" to control lever locating bolts (1) when retightening.
  • Be sure to apply sealant to mating surface of gear shift lever case (2) for its final installation.

"C": Thread lock cement 99000-32020

Tightening torque

Transmission control lever locating bolt (a): 17 N.m (1.7 kg-m, 12.5 lb-ft)

Fig 4: Applying Sealant To Mating Surface
G00761842Courtesy of SUZUKI OF AMERICA CORP.
