Back Up Light Switch Inspection

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Undo clamp and disconnect coupler of back up light switch.
Function of back up light switch can be checked by ohmmeter (1) as shown in the figure.
There should be conduction at these terminals only when shift lever is shifted to reverse position.
Upon completion of check, connect coupler and clamp wiring harness as they were.

NOTE: When replacing switch, use care not to let dust enter transmission through switch hole.

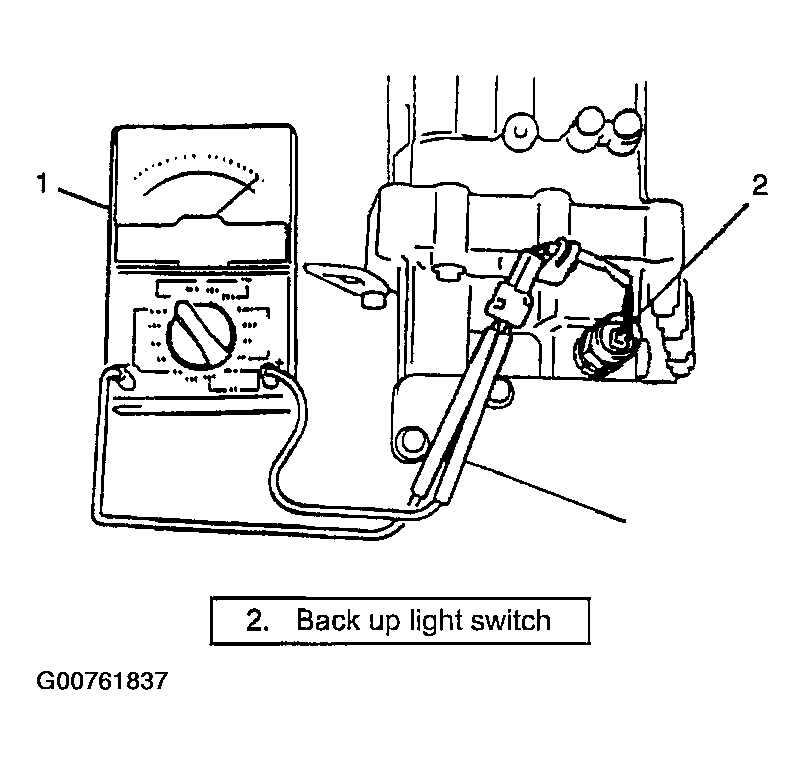

Fig 1: Checking Function Of Back Up Light Switch

Courtesy of SUZUKI OF AMERICA CORP.
