Rear Upper Valve Body Components: Assembly

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Assemble each component by reversing disassembly procedure and noting the following points.

Coil outer diameter and free length of each valve spring should be as listed below. Be sure to use each one of correct size.

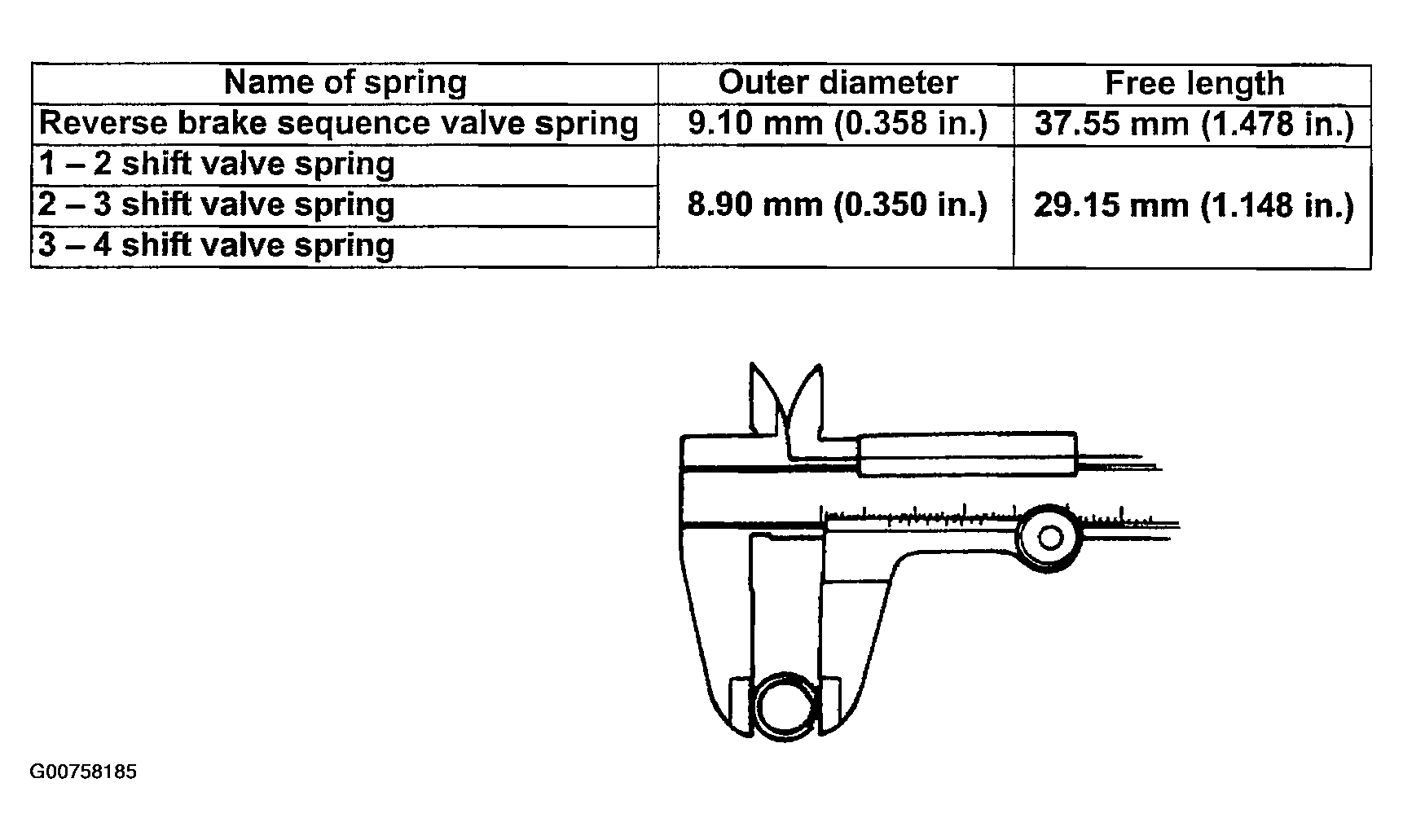

Fig 1: Coil Outer Diameter And Free Length Of Each Valve Spring Chart
Courtesy of SUZUKI OF AMERICA CORP.
Use new rear upper valve body gasket.
Tighten plate bolt to specified torque (1) to specified torque.
Tightening torque
1. Plate bolt: 5.5 N.m (0.55 kg-m, 4.0 lb-ft)

Fig 2: Tightening Plate Bolt

Courtesy of SUZUKI OF AMERICA CORP.
