Planetary Gears and Output Shaft Components: Notes

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

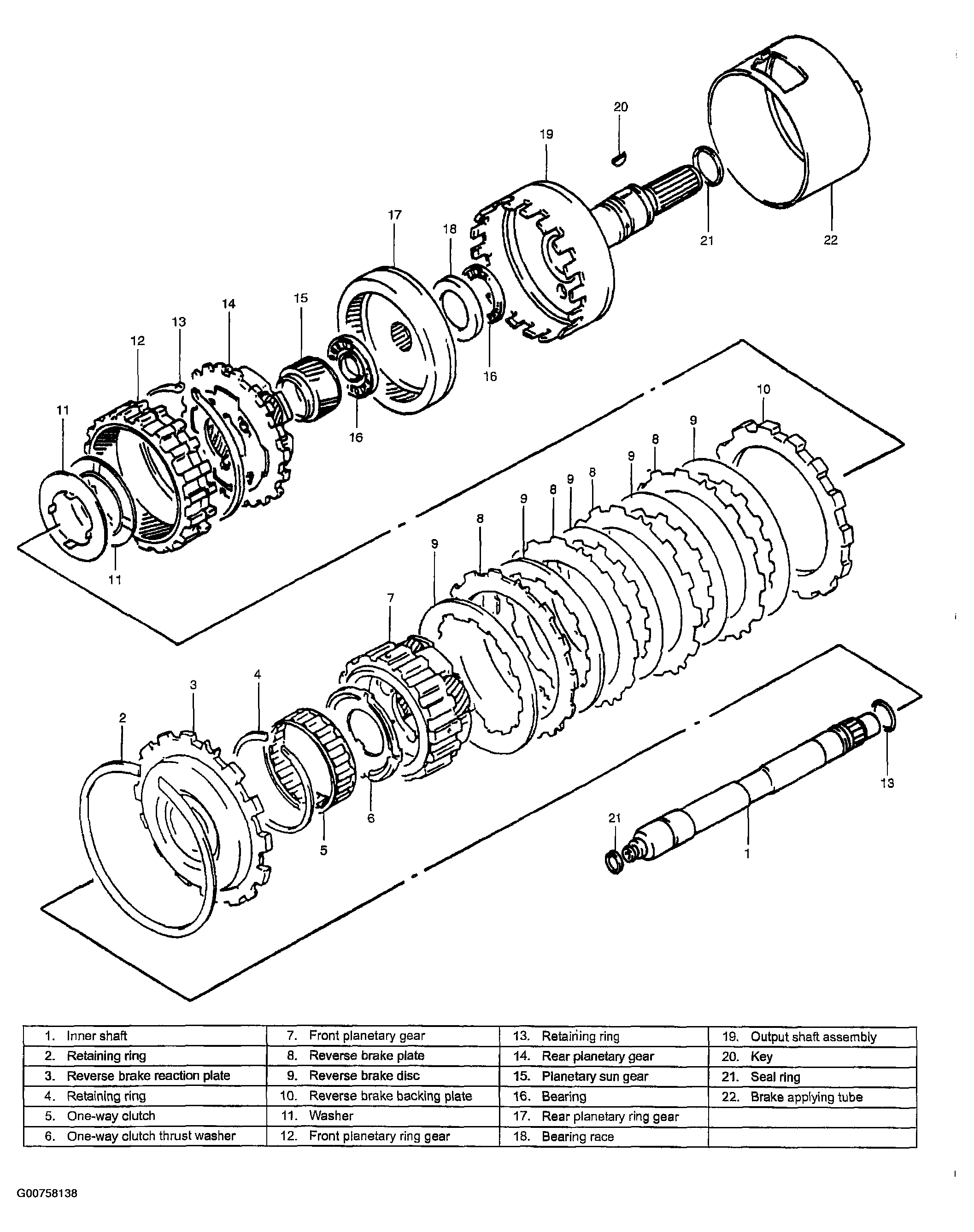

Fig 1: Exploded View Of Planetary Gears & Output Shaft
G00758138Courtesy of SUZUKI OF AMERICA CORP.
