Oil Pump Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove 6 bolts, oil pump cover (1), drive gear and driven gear in that order.

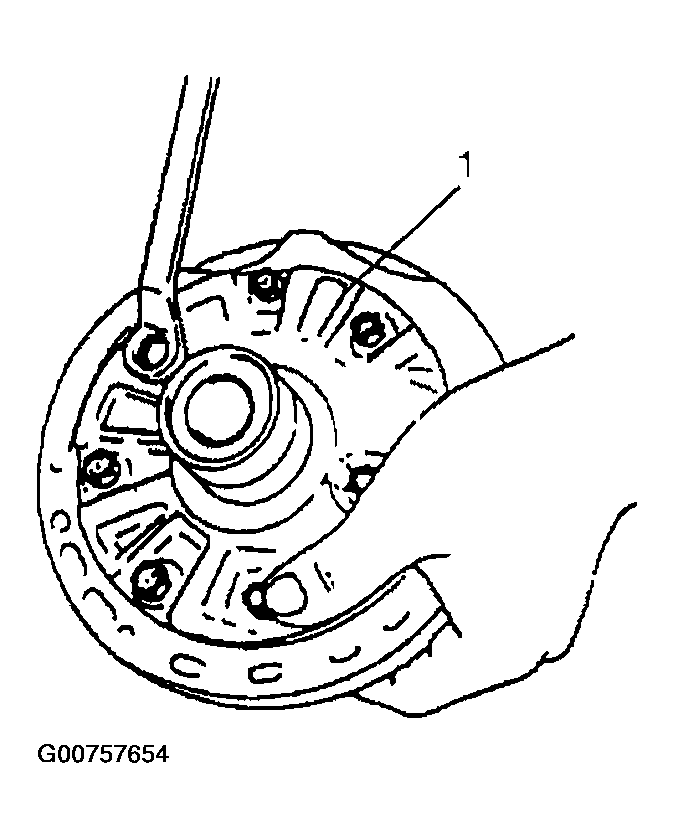

    Fig 1: Removing Bolts, Cover, Drive Gear & Driven Gear
    G00757654Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove oil pump cover O-ring.
