Manual Selector Assembly Components

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Tightening torque

(a): 18 N.m (1.8 kg-m, 13.0 lb-ft)

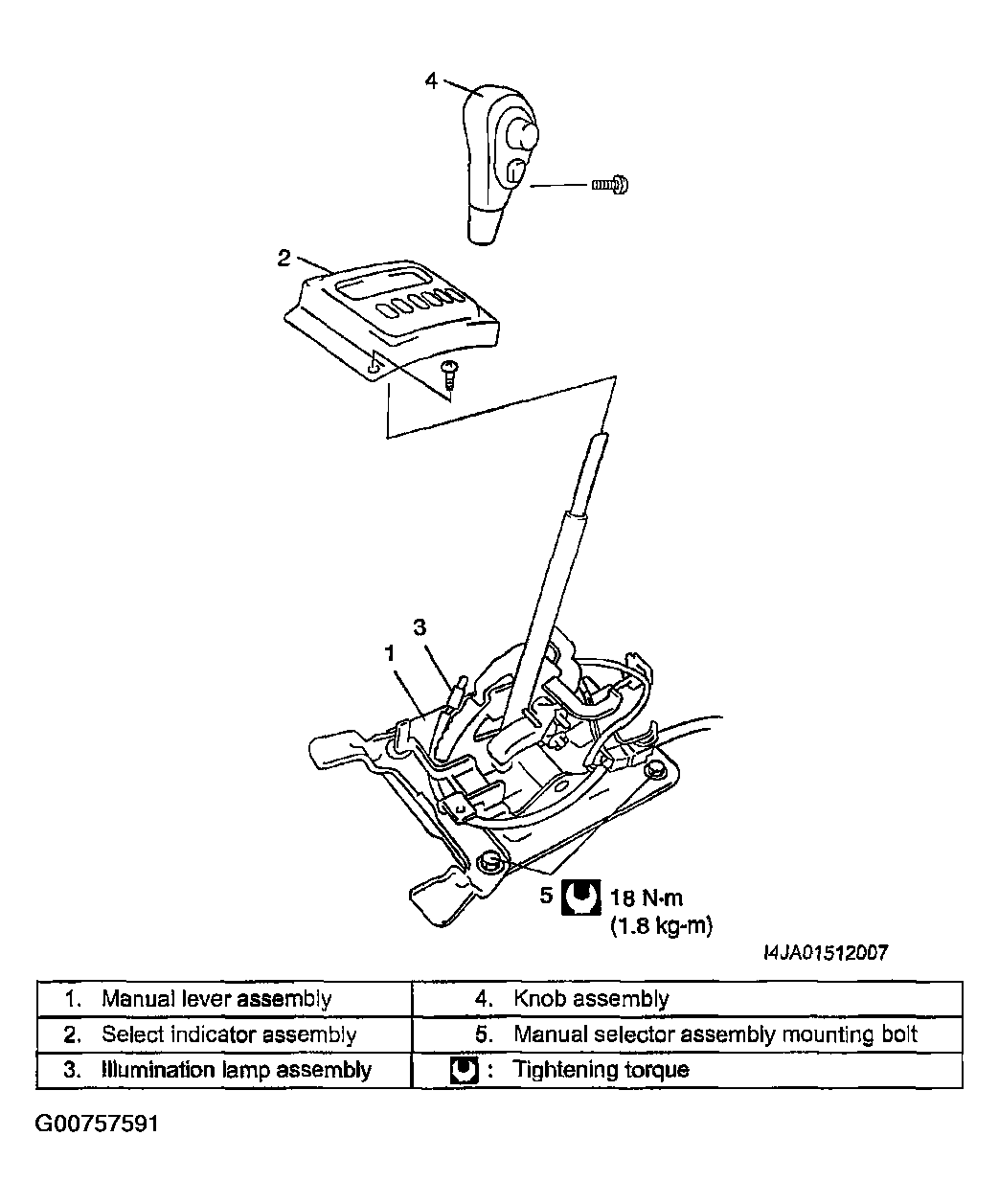

Fig 1: Identifying Manual Selector Assembly Bolt

Courtesy of SUZUKI OF AMERICA CORP.
