A/T Throttle Cable Adjustment

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Pull inner cable (3) by force of 2 N (0.2 kg, 0.45 lb) or less to be no slack of inner cable with A/T throttle cable (1) curved as shown in the figure.
Fix stopper (2) to inner cable (3) with clearance "a".
A/T throttle cable adjusting position (clearance)
1. "a": 0.8 - 1.5 mm (0.03 - 0.06 in.)
Fig 1: Fixing Stopper To Inner Cable
Courtesy of SUZUKI OF AMERICA CORP.
Warm up engine and transmission to normal operating temperature.
Make sure that accelerator cable is adjusted as specified.
With throttle valve closed, check clearance "c", which should be within the following specification, of A/T throttle cable (1). If it is out of specification, adjust it by turning cable adjusting nut (2).
A/T throttle cable adjusting position (clearance)
1. "c": 0.8 - 1.5 mm (0.03 - 0.06 in.)
Tighten lock nut (3) securely.

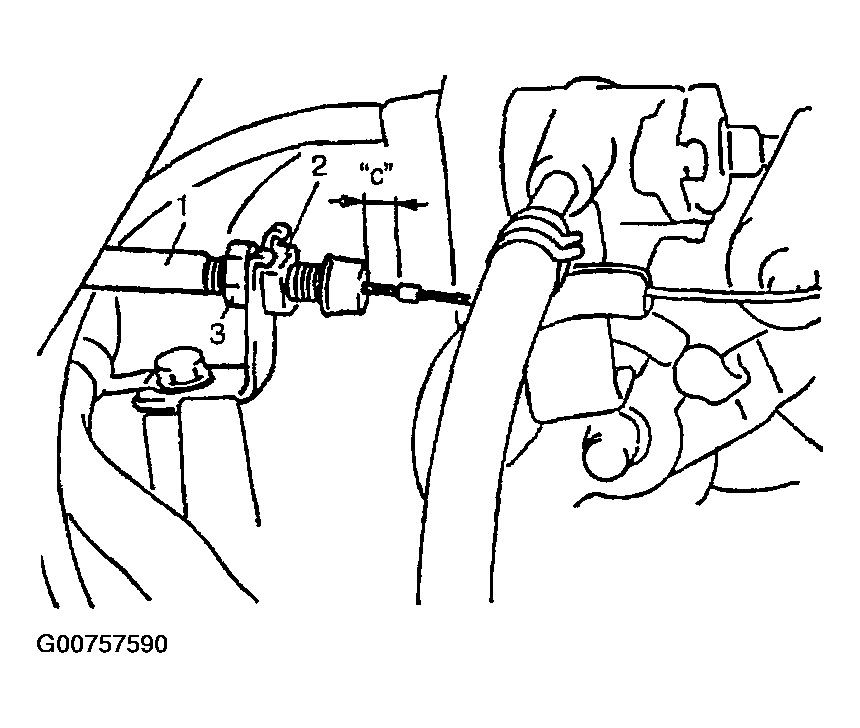

Fig 2: Tightening Lock Nut Securely

Courtesy of SUZUKI OF AMERICA CORP.
