Stabilizer Bar: Removal

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove side under cover and center under cover.
  2. Remove steering wheel, air bag module assembly, and clock spring. See DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING under REMOVAL & INSTALLATION in AIR BAG article under RESTRAINTS SYSTEMS.
  3. Remove center member.
  4. Remove front exhaust pipe.
  5. Remove power steering hose clamp. See Fig 1 .
  6. Remove rear roll stopper connecting bolt.
  7. Remove steering shaft cover.
  8. Remove steering gear and joint connecting bolt.
  9. Use a transmission jack to hold the crossmember, and then remove the crossmember mounting nuts and bolts. See Fig 2 .
  10. Lower the crossmember until the fixtures, bushings, stabilizer links, and the stabilizer bar can be removed.
Fig 1: Removing & Installing Stabilizer Bar
G00355990Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

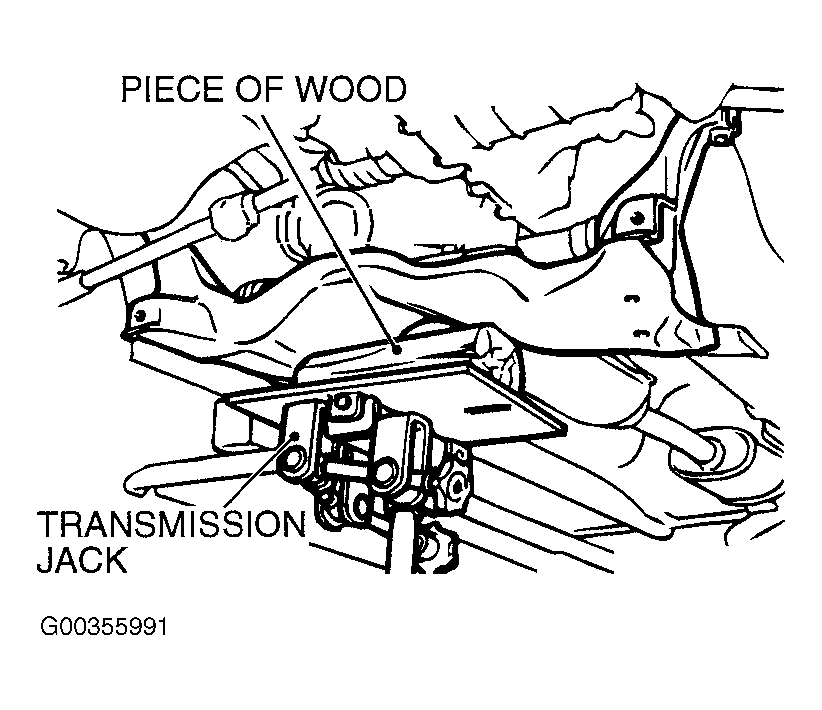

Fig 2: Using Transmission Jack To Lower Crossmember
G00355991Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
