Lower Arm: Installation
WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

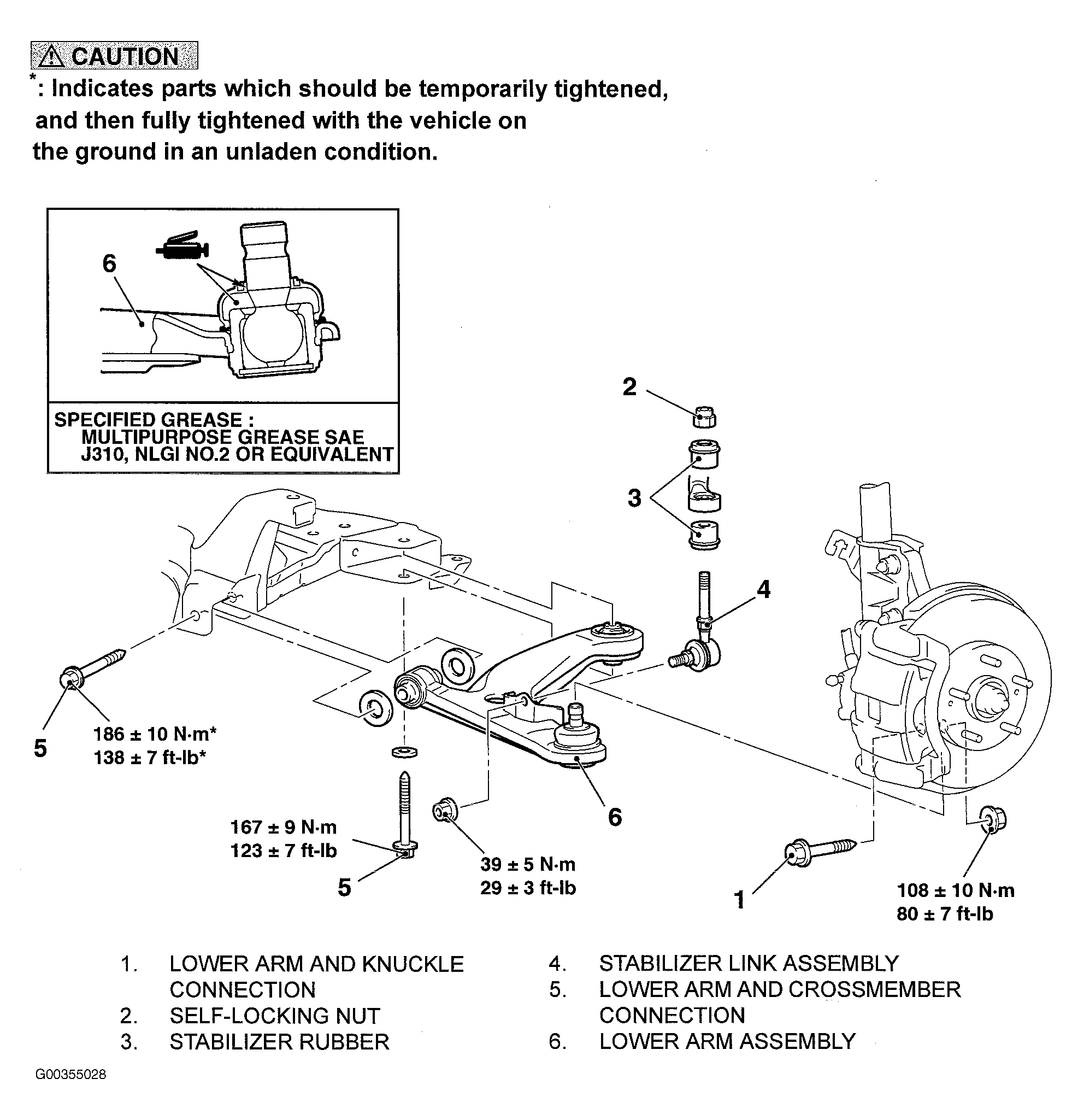

- Install lower arm assembly. See Figure
.
- Install lower arm-to-crossmember bolt.
- Install stabilizer link assembly.
- Install stabilizer rubber.
- Tighten the self-locking nut until the stabilizer link thread part protruding length is as shown. See Fig 1
.
- Install lower arm-to-knuckle bolt. See Figure
.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
