Master Cylinder Assembly: Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

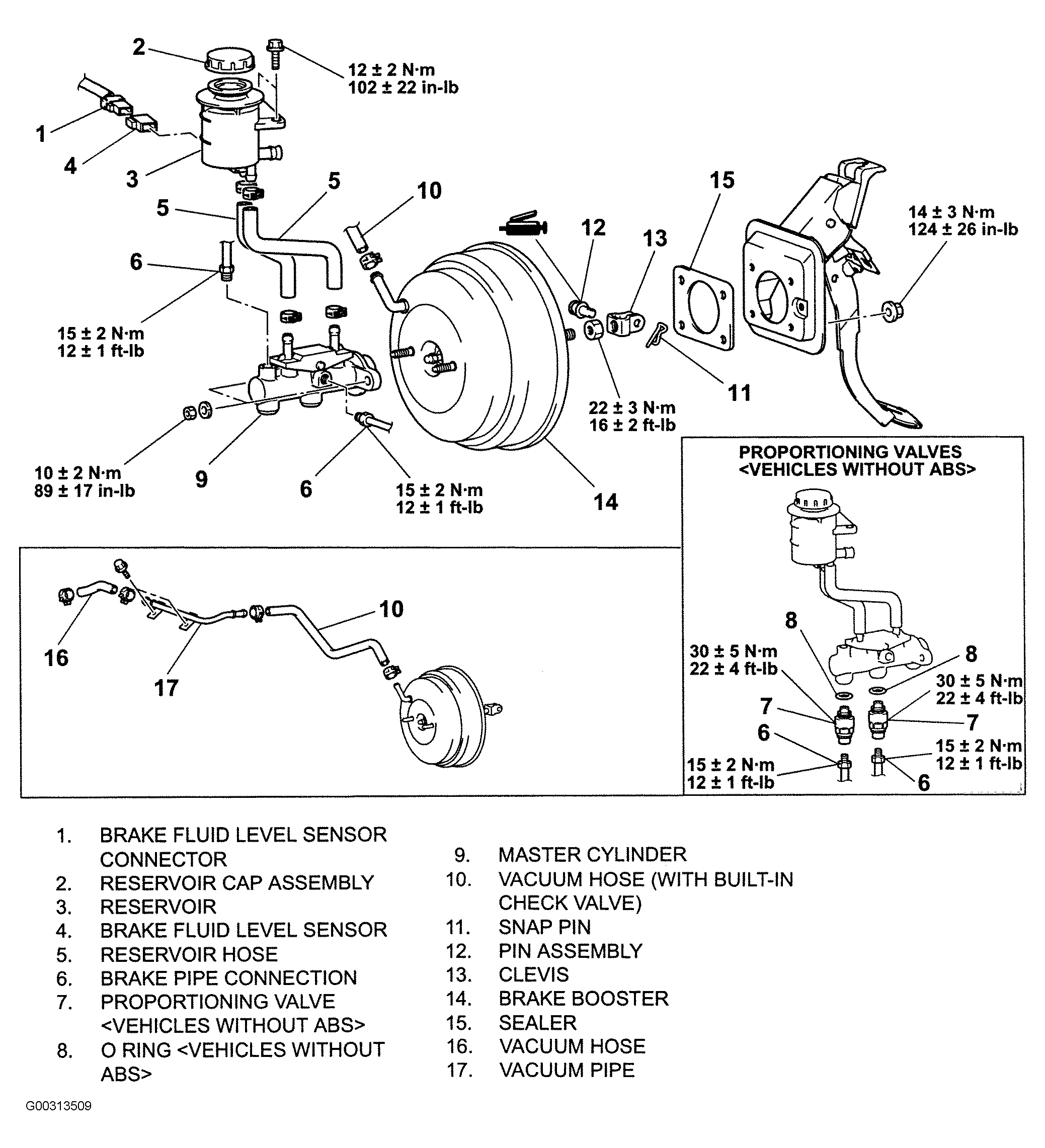

Install master cylinder on vehicle. See Figure .
Install new O-rings.
Install proportioning valves.
Reconnect brake lines. See TORQUE SPECIFICATIONS .
Reconnect reservoir hose. Insert the reservoir hose with its paint mark facing front of the vehicle. See Fig 1 .
To complete installation, reverse remaining removal procedures. See TORQUE SPECIFICATIONS .

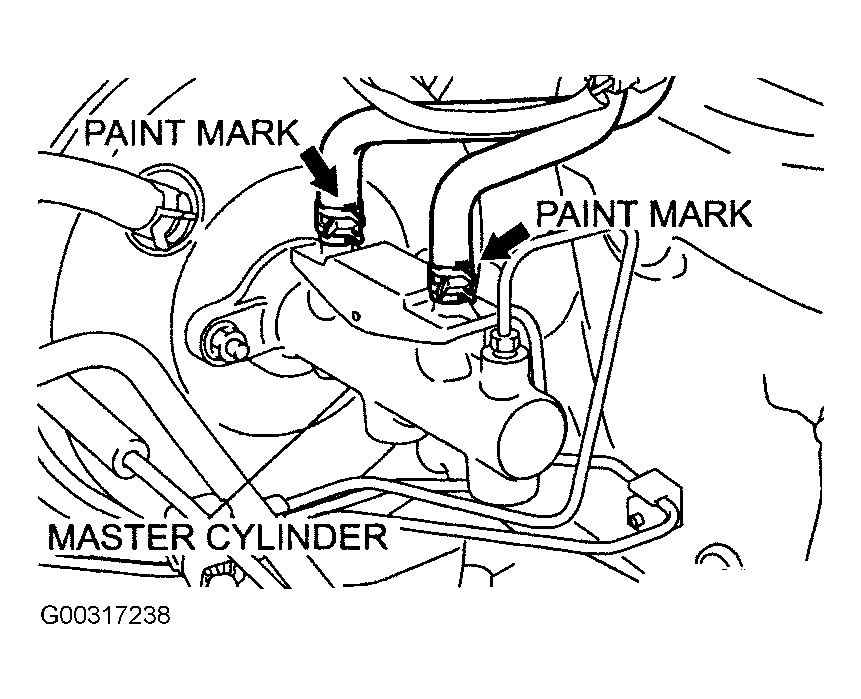

Fig 1: Installing Reservoir Hose

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
