Brake System

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

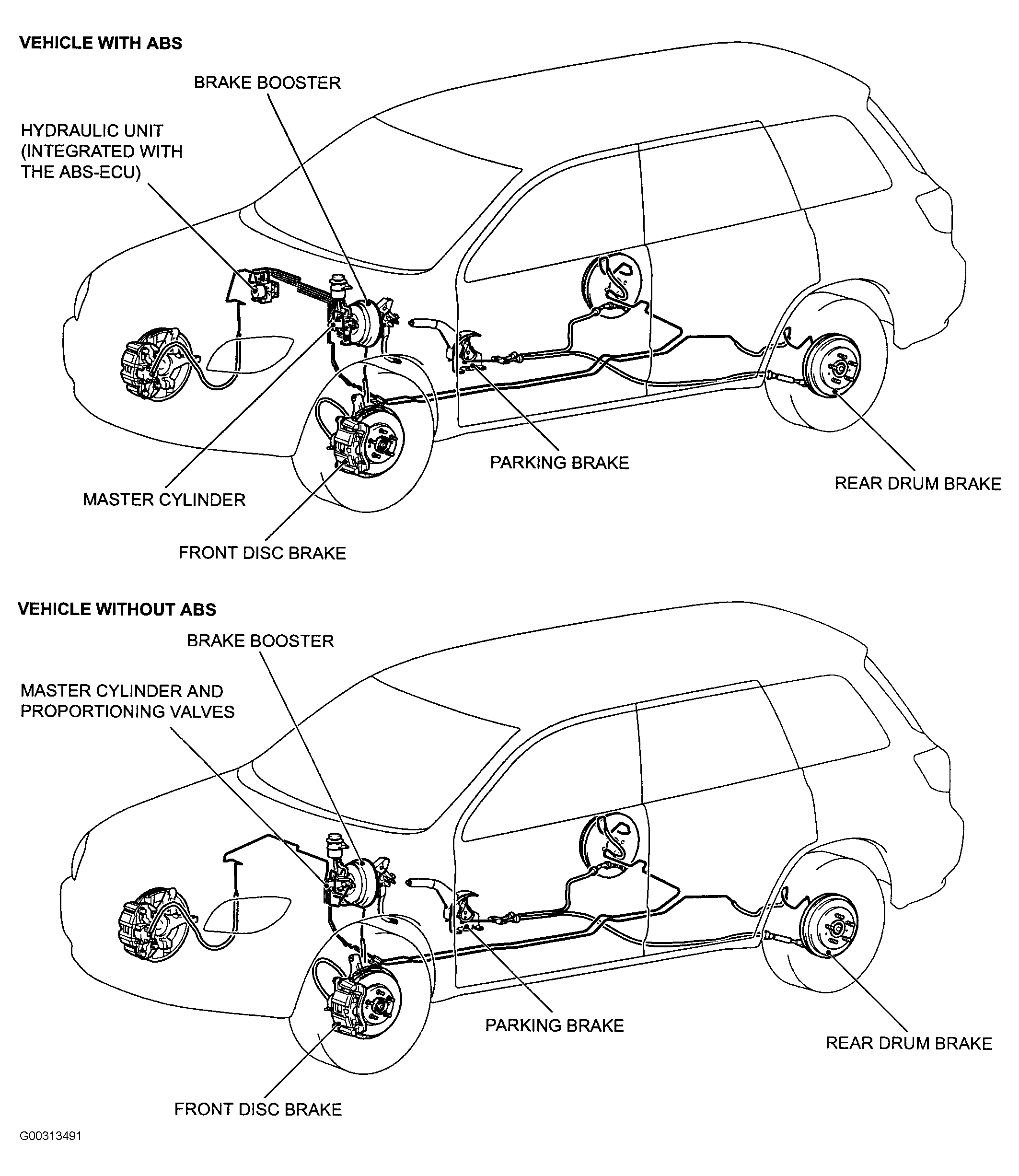

The brake system consists of the following components. See Fig 1 .

Fig 1: Identifying Brake System Components
G00313491Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
