Front Brake Caliper: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Suzuki XL-7, 2004 Suzuki Vitara, 2004 Suzuki Grand Vitara, 2003 Suzuki XL-7, and 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When overhauling caliper, if cylinder bores are pitted or scored beyond repair, replace entire assembly.

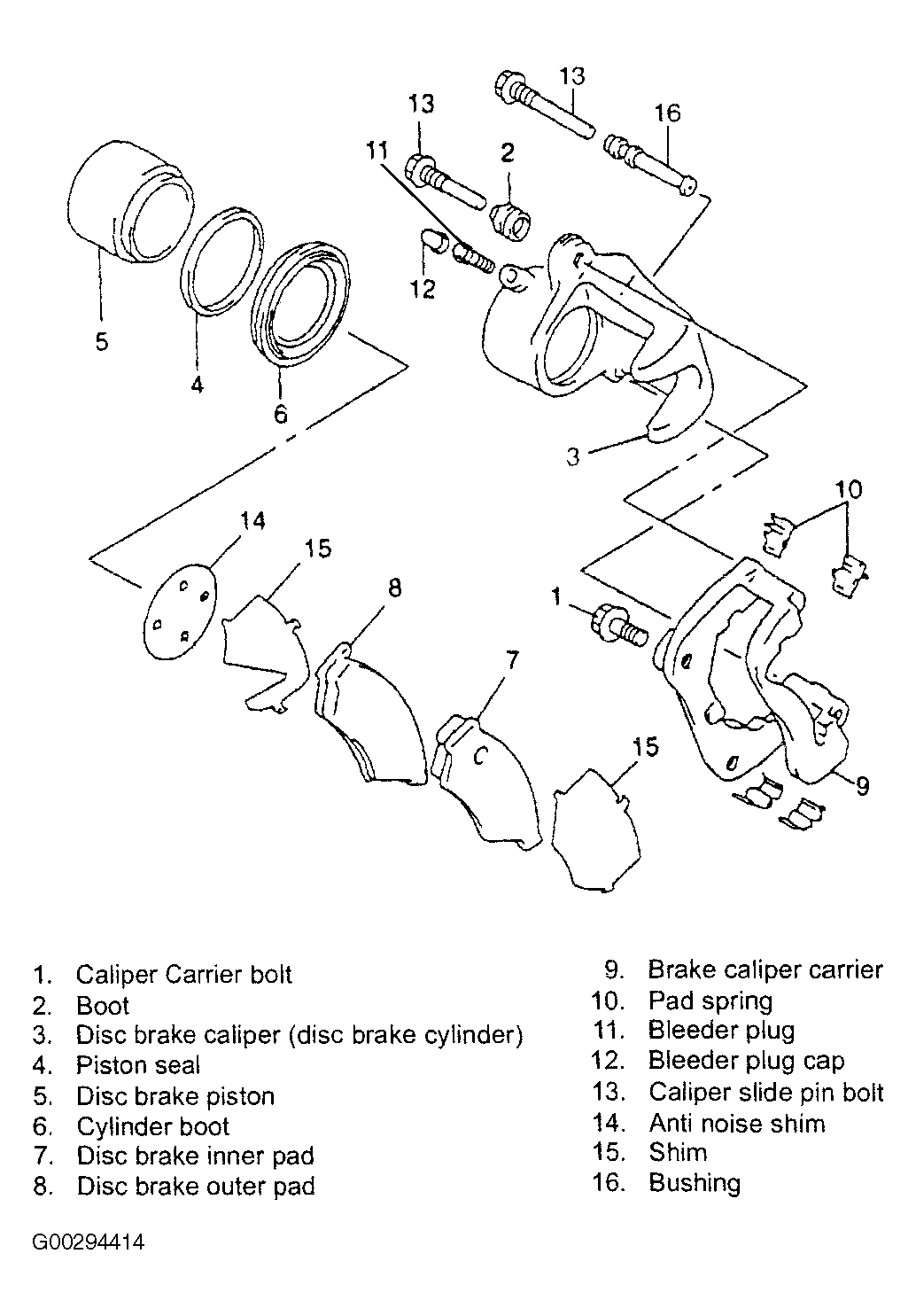

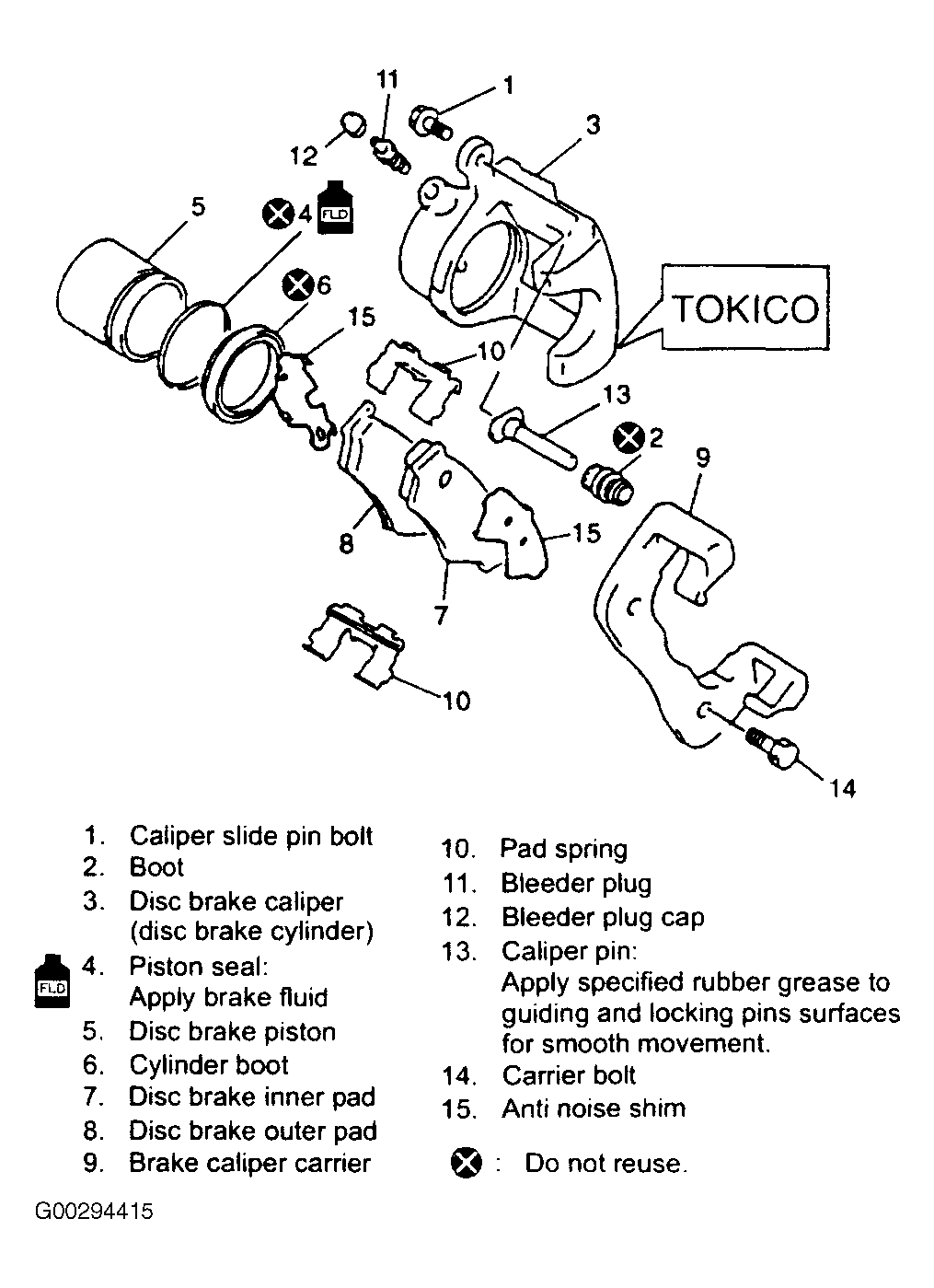

NOTE: Use illustration for exploded view of front brake caliper assembly. See Figure Figure .
