Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Isuzu Rodeo Sport and 2002 Isuzu Rodeo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform ON-BOARD DIAGNOSTIC II SYSTEM CHECK  under SELF-DIAGNOSTIC SYSTEM. After performing OBD-II system check, go to next step.
  2. Turn ignition on. Review and record FAILURE RECORDS data, then clear DTCs. Operate vehicle within FAILURE RECORDS data recorded. If scan tool indicates that DTC P0532 RAN AND PASSED this ignition, check for intermittent problem. See DIAGNOSTIC AIDS  . If scan tool reading does not indicate DTC P0532 RAN AND PASSED this ignition, go to next step.
  3. Turn ignition off. Disconnect A/C refrigerant pressure sensor 3-pin harness connector. A/C refrigerant pressure sensor is located in receiver/dryer at behind grill. Start engine. On scan tool monitor A/C PRESSURE SENSOR parameter. If parameter holds steady at less than .1 volts, leave harness connector disconnected and go to step  5 . If parameter does not hold steady at less than .1 volts, leave harness connector disconnected and go to next step.
  4. Check for short to voltage in Green wire (A/C pressure switch input) between A/C pressure sensor and PCM. See Fig 1 . If problem is found, repair as necessary. After repair is complete, see VERIFYING VEHICLE REPAIR  under SELF-DIAGNOSTIC SYSTEM. If no problem is found, go to step  12 .
  5. Check for open, short to ground or short to voltage in Green wire (A/C pressure switch input) between A/C pressure sensor and PCM. See Fig 1 . If problem is found, repair as necessary. After repair is complete, see VERIFYING VEHICLE REPAIR  under SELF-DIAGNOSTIC SYSTEM. If no problem is found, leave harness connector disconnected and go to next step.
  6. Check for open, short to ground or short to voltage in Blue/Orange wire (A/C pressure switch 5-volt reference) between A/C pressure sensor and PCM. See Fig 1 . If problem is found, repair as necessary. After repair is complete, see VERIFYING VEHICLE REPAIR  under SELF-DIAGNOSTIC SYSTEM. If no problem is found, leave harness connector disconnected and go to next step.
  7. Turn ignition off. Using DVOM, measure voltage between ground and A/C pressure sensor harness connector No. 2 (Blue/Orange wire). Turn ignition on. Voltage reading should be about 5 volts. If voltage is as specified, leave harness connector disconnected and go to next step. If voltage is not as specified, go to step  12 .
  8. Turn ignition off. Using a fused jumper wire, jumper A/C pressure sensor harness connector terminals No. 2 (Blue/Orange wire) and No. 3 (Green wire). Turn ignition on. Using scan tool, observe A/C PRESSURE SENSOR voltage parameter. Voltage parameter should be about 5-volts. If parameter is as specified, leave harness connector disconnected and go to next step. If parameter is not as specified, go to step  12 .
  9. Check for open, short to ground or short to voltage in Blue/Yellow wire (A/C pressure sensor ground) between A/C pressure sensor and PCM. If problem is found, repair as necessary. After repair is complete, see VERIFYING VEHICLE REPAIR  under SELF-DIAGNOSTIC SYSTEM. If no problem is found, leave harness connector disconnected and go to next step.
  10. Turn ignition on. Using DVOM, measure voltage between A/C pressure sensor harness connector terminals No. 1 (Blue/Yellow wire) and No. 2 (Blue/Green wire). Voltage reading should be about 5 volts. If voltage is as specified, go to next step. If voltage is not as specified, go to step  12 .
  11. Replace A/C refrigerant pressure sensor. See MANUAL A/C-HEATER SYSTEMS - RODEO article in AIR CONDITIONING & HEATING. After repair is complete, see VERIFYING VEHICLE REPAIR  under SELF-DIAGNOSTIC SYSTEM.
  12. Replace and reprogram PCM. See POWERTRAIN CONTROL MODULE REPLACEMENT  under POWERTRAIN CONTROL MODULE. After repair is complete, see VERIFYING VEHICLE REPAIR  under SELF-DIAGNOSTIC SYSTEM.

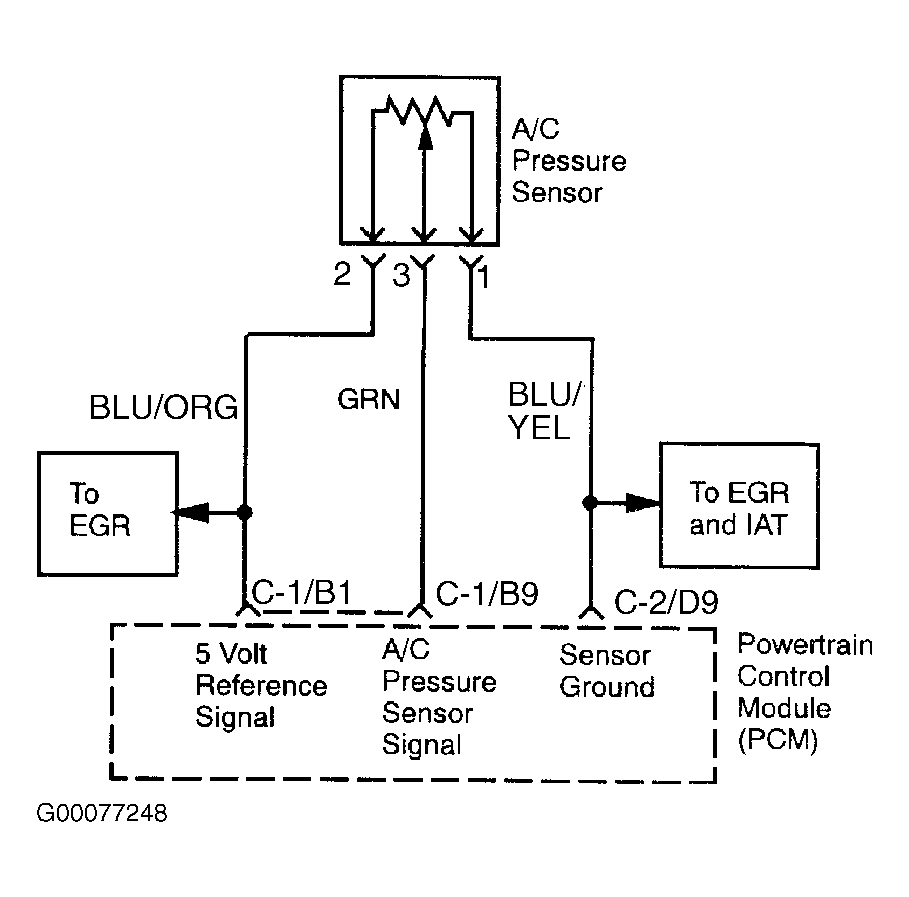

Fig 1: Identifying A/C Pressure Sensor Circuits
G00077248Courtesy of ISUZU MOTOR CO.
