Drive Belt Routing
WARNING:
This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

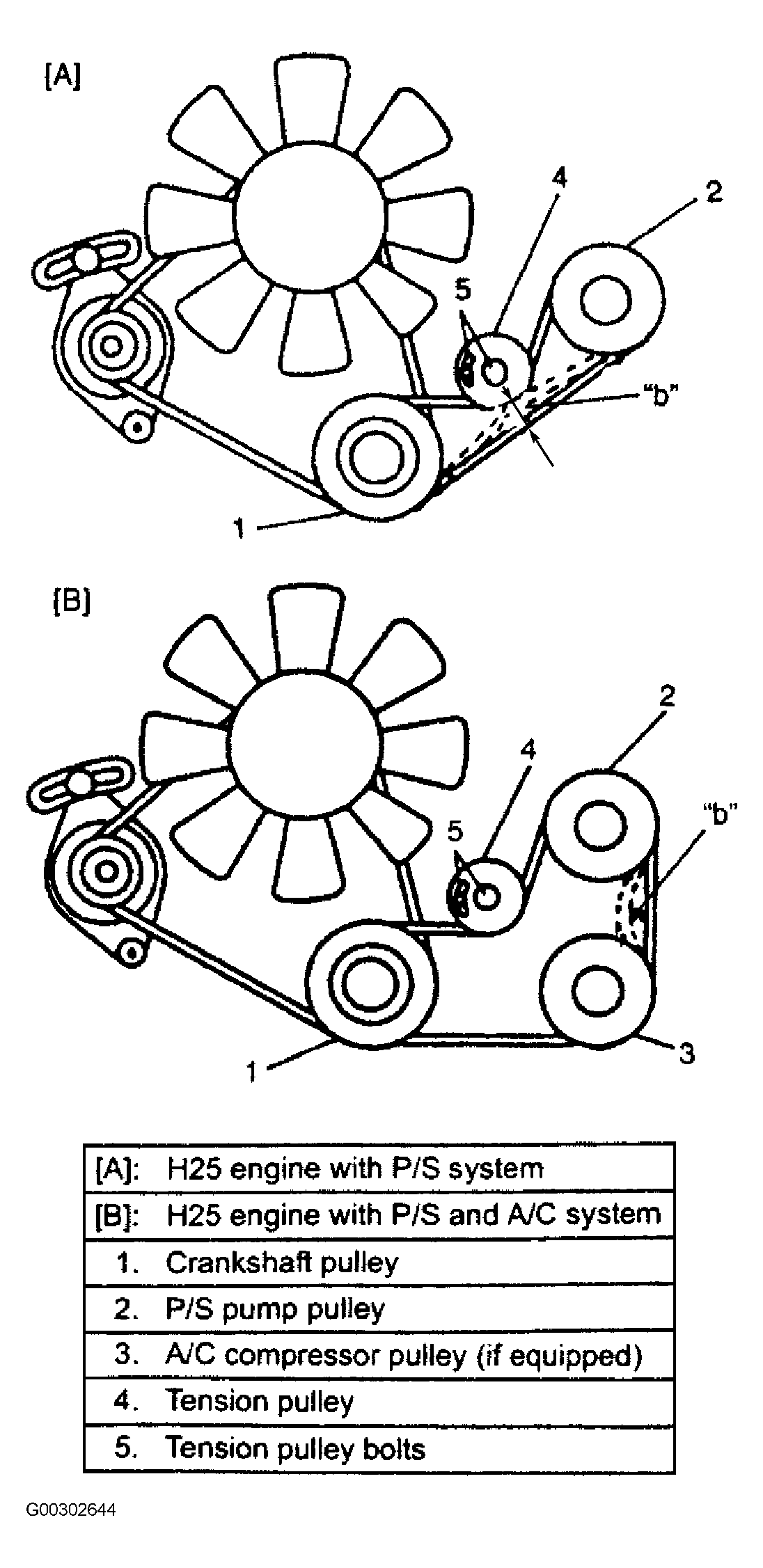

Fig 1: Identifying Drive Belt Routing & Checking Power Steering Belt Tension
Courtesy of SUZUKI OF AMERICA CORP.
