Removal & Installation
WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Turn ignition off. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

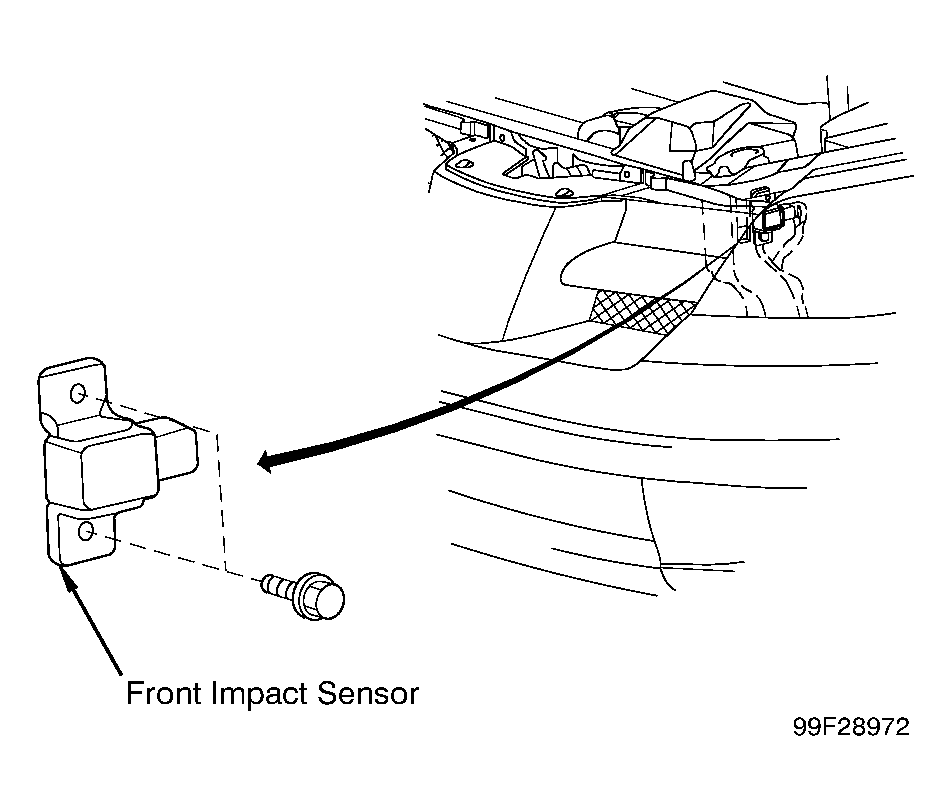

- Disconnect applicable front impact sensor connector. See Fig 1. Remove front impact sensor bolts. Remove front impact sensor.
- To install, reverse removal procedure. Tighten front impact sensor bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.
