Fitting Pistons
WARNING: This page is about a different car, the 2003 Suzuki Grand Vitara and 2002 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Check cylinder bore for damage, wear and taper. See CYLINDER BLOCK ASSEMBLY . Determine if block must be rebored. See CYLINDER BLOCK table under ENGINE SPECIFICATIONS. Rebore if necessary.

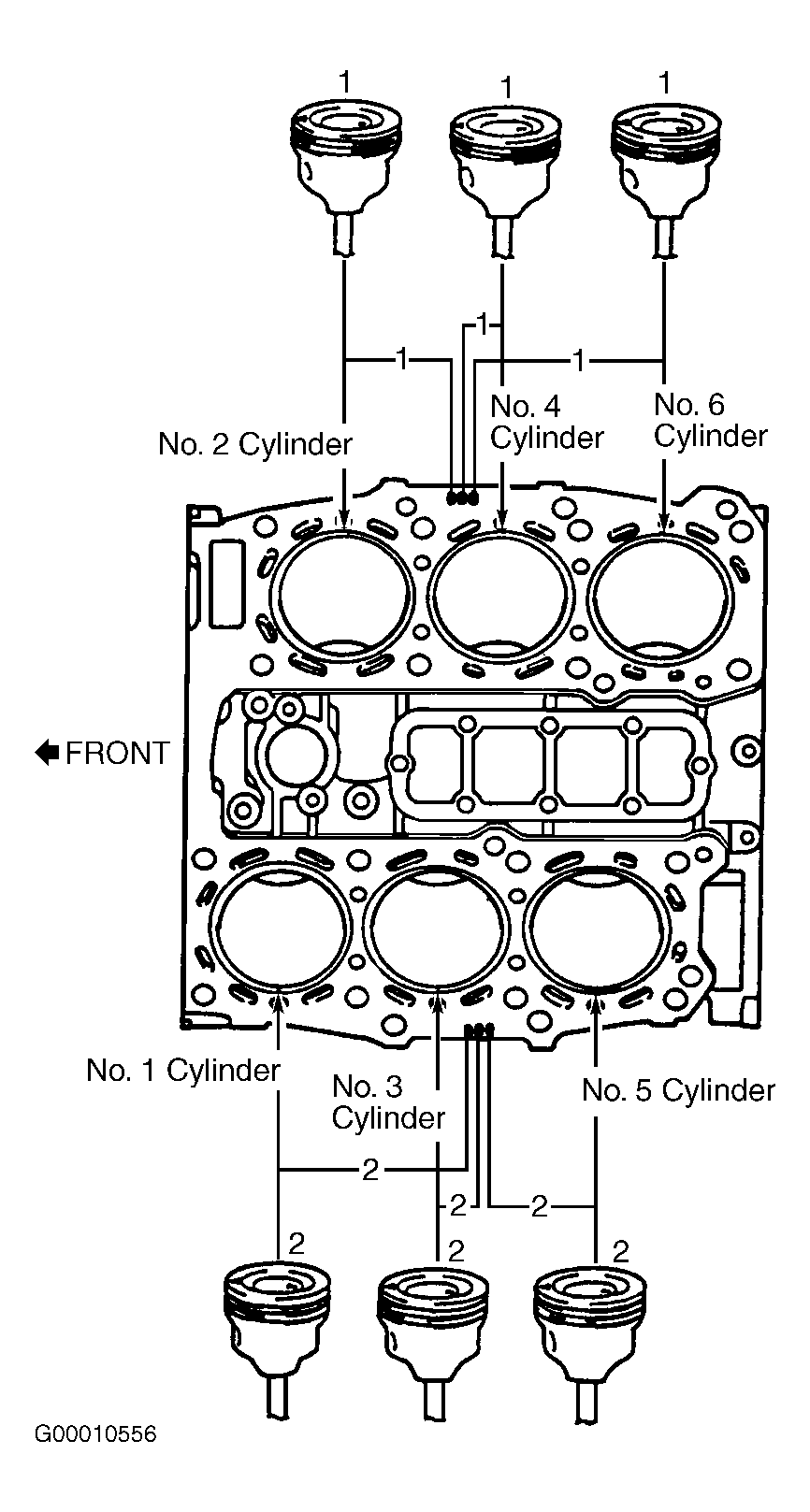

- Check outside diameter of piston. Measure at a point 1.04" (26.5 mm) from piston skirt end, in direction perpendicular to piston pin. Standard pistons are available in 2 sizes. Piston diameter is determined by numerical mark ("1" or "2") stamped on piston crown. See Fig 1. Number represents outer diameter of piston. See PISTON & CYLINDER DIAMETERS table.
- Cylinder bore diameter is determined by a number on cylinder block head surface. See Fig 1. Stamped numbers on block should correspond to stamped numbers on piston crown. See PISTON & CYLINDER DIAMETERS table.PISTON & CYLINDER DIAMETERS
Piston Number At Top Piston Outer Diameter - In. (mm) Cylinder Block Number Piston Bore Diameter - In. (mm) 1 3.3063-3.3066 (83.980-83.988) 1 3.3075-3.3078 (84.011-84.018) 2 3.3059-3.3062 (83.970-83.977) 2 3.3071-3.3074 (84.000-84.008
