Brake Switch

WARNING: This page is about a different car, the 2002 Isuzu Trooper, 2002 Isuzu Rodeo Sport, 2002 Isuzu Rodeo, 2002 Isuzu Axiom, and 2002 Honda Passport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that brake pedal is fully returned by pedal return spring. See Fig 1 .
  2. Disconnect brake switch 2-pin harness connector.
  3. Loosen lock nut. Rotate brake switch by hand until push rod disappears from brake switch tip.
  4. Back brake switch out 1/2 turn. Tighten lock nut. Connect harness connector. Test brake light operation. If necessary repeat adjustment until brake lights operate normally.

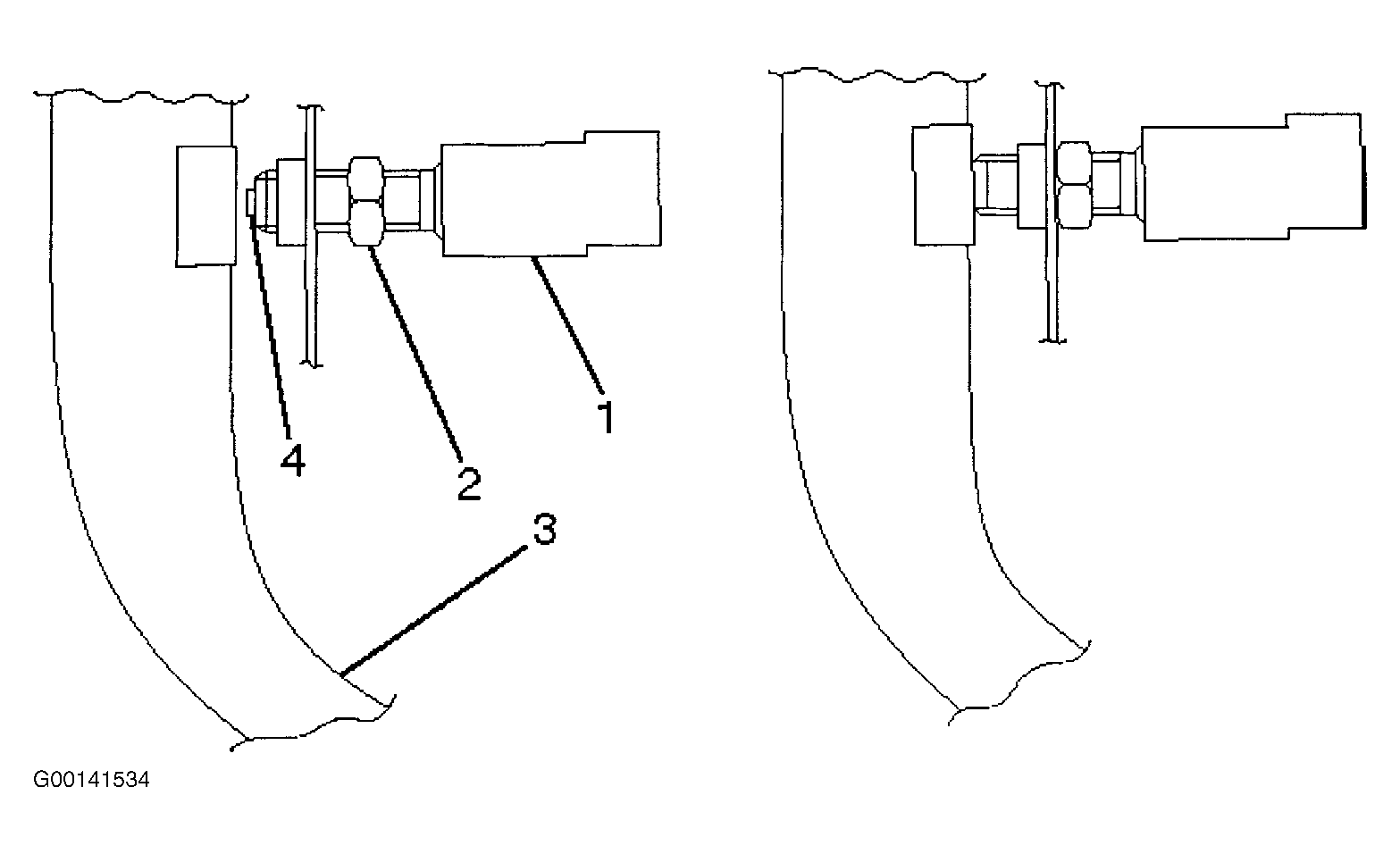

Fig 1: Adjusting Brake Switch
G00141534Courtesy of ISUZU MOTOR CO.
