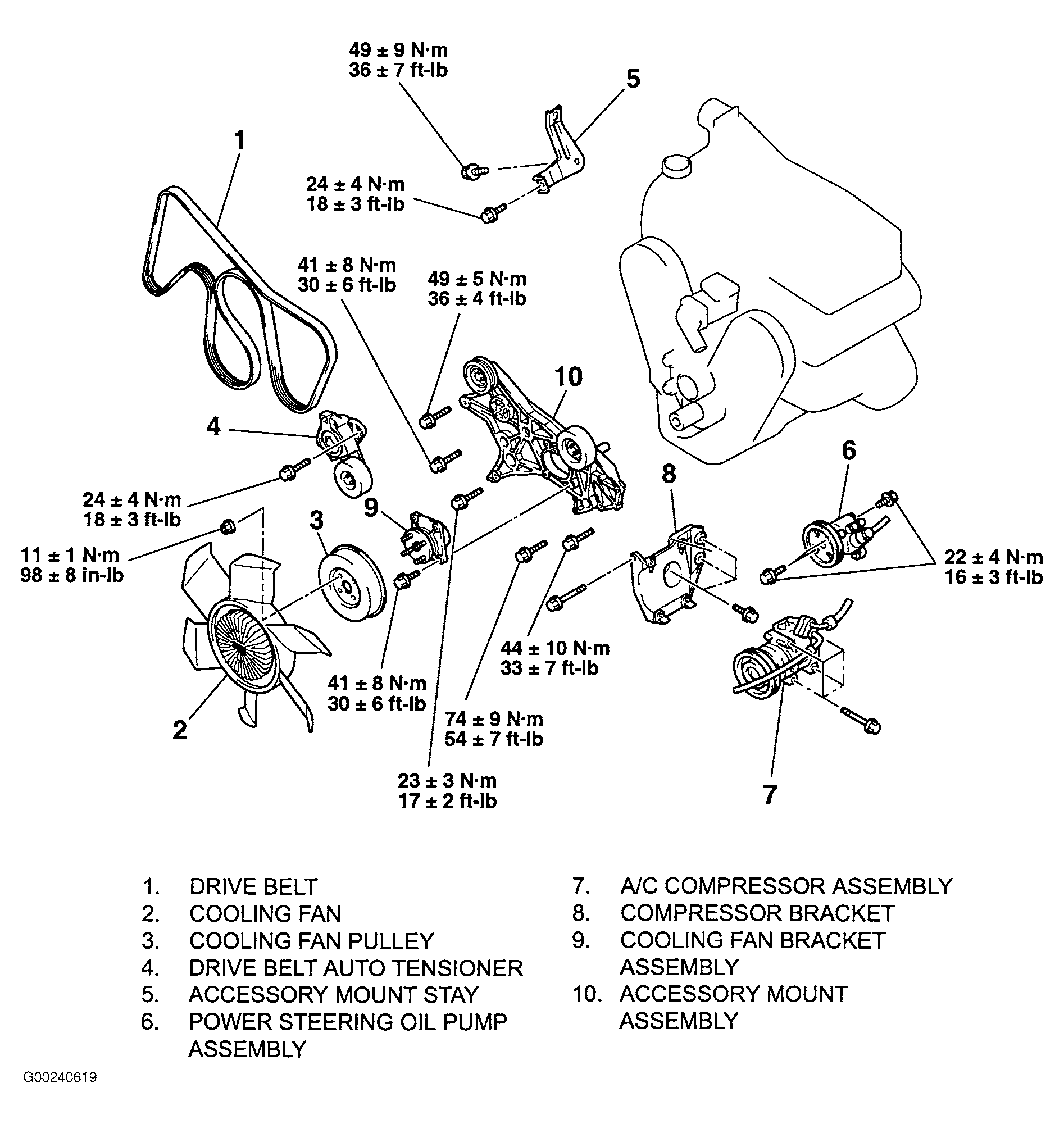

| Accessory Mount Stay Bolts |
|
| Brake Caliper Assembly Bolts |
58-72 (78-98) |
| Brake Line Connection Fitting |
10-13 (13-18) |
| Cooling System Air Bleed Bolt |
|
| Crankshaft Pulley Bolts |
133-140 (180-190) |
| Drive Belt Auto Tensioner Bolt |
14-21 (20-28) |
| EGR Pipe-To-Intake Plenum Bolts |
12-14 (16-20) |
| EGR Solenoid Bolts |
|
| EGR Valve Bolts |
15-20 (21-27) |
| Engine Cooling Fan Bracket Assembly Bolts |
24-36 (33-49) |
| Engine Coolant Temperature Sensor |
15-29 (21-39) |
| EVAP Canister Bolts/Nuts |
|
| Exhaust Manifold-To-Engine Nuts |
29-36 (39-49) |
| Exhaust Pipe-To-Exhaust Manifold Nuts |
29-44 (39-59) |
| Fuel Rail Bolts |
8-10 (11-13) |
| Fuel Tank Drain Bolt |
13-18 (18-25) |
| Fuel Tank Strap Retaining Bolts/Nuts |
16-22 (22-30) |
| Fuel Tank Under Cover Retaining Nuts |
16-22 (22-30) |
| Heated Oxygen Sensor |
29-36 (39-49) |
| Intake Manifold Nuts |
15-17 (21-23) |
| Intake Manifold Plenum & Tuning Valve Assembly-To-Intake Manifold Bolts |
12-14 (16-20) |
| Knock Sensor |
15-18 (21-25) |
| ORVR Vent Valve Module Bolts |
|
| Power Steering Oil Pressure Switch |
19-22 (26-30) |
| Power Steering Pump Bolt |
13-19 (18-26) |
| Rear Differential Crossmember Nuts |
109-137 (148-186) |
| Rear Lower Control Arm |
| Inner Nuts |
80-102 (108-138) |
| Outer Nuts |
94-131 (127-177) |
| Rear Seat Belt Anchor Bolts |
25-40 (34-54) |
| Rear Trailing Arm Mounting Nuts |
132-182 (179-247) |
| Spark Plugs |
14-22 (20-30) |
| Spark Plug Cable Retainer Bolt |
8-11 (11-15) |
| Throttle Body Bolts |
8-10 (11-13) |
| Transmission Control Cable Adjusting Nut |
15-20 (21-27) |
| Transmission Crossmember-To-Frame Bolts |
25-40 (34-54) |
| Transmission Mount-To-Crossmember |
| Bolts |
25-40 (34-54) |
| Nuts |
16-22 (22-30) |
| Water Outlet Fitting Bracket Bolts |
10-38 (13-51) |
| INCH Lbs. (N.m) |
| Accelerator Pedal Position Sensor Bolts |
22-40 (2.5-4.5) |
| Camshaft/Crankshaft Position Sensor Harness Eyelet Bolts |
89-106 (10-12) |
| Camshaft Position Sensor Bolt |
89-106 (10-12) |
| Control Wiring Harness & Injector Wiring Harness Combination Connector Bracket Bolt |
89-106 (10-12) |
| Crankshaft Position Sensor Connector Bolt |
71-106 (8-12) |
| Crankshaft Position Sensor Bolts |
71-80 (8-9) |
| Drive Shaft-To-Rear Differential Nuts |
35-53 (4-6) |
| Engine Cooling Fan Clutch Bolts/Nuts |
89-106 (10-12) |
| Fuel Crossover Pipe Retaining Bolts |
71-89 (8-10) |
| Fuel Gauge Unit Nuts |
19-26 (2.1-2.9) |
| Fuel Pressure Regulator Bolts |
71-89 (8-10) |
| Fuel Pump Module Mounting Nuts |
19-26 (2.1-2.9) |
| Fuel Tank Drain Plug |
|
| Fuel Tank Leveling Valve Nuts |
18-26 (2.0-2.9) |
| High Pressure Fuel Line-To-Fuel Rail Retaining Bolts |
35-53 (4-6) |
| Idle Air Control Motor Bolts |
13-22 (1.5-2.5) |
| Ignition Coil Bolts |
71-106 (8-12) |
| Intake Manifold Plenum-To-Tuning Valve Assembly Bolts |
71-89 (8-10) |
| Knock Sensor & Camshaft Position Sensor Wiring Harness Combination Connector Bracket Bolt |
89-106 (10-12) |
| Lower Timing Belt Cover Bolts |
89-106 (10-12) |
| Manifold Differential Pressure Sensor Bolt |
35-53 (4-6) |
| Park/Neutral Position Switch (A/T) |
89-106 (10-12) |
| Solenoid Valve & Vacuum Hose Assembly Bolts |
71-89 (8-10) |
| Throttle Body Bracket Bolts |
44 (5) |
| Throttle Position Sensor Bolts |
18 (2) |
| Timing Indicator Bracket Bolt |
89-106 (10-12) |
| Upper Timing Belt Cover Bolts |
| M6 |
89-106 (10-12) |
| M8 |
|
| Volume Airflow Sensor-To-Air Cleaner Cover Retaining Nuts |
71-89 (8-10) |
