Removal (Eclipse 2.4L)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
- Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE . Remove throttle body. See THROTTLE BODY under AIR INDUCTION SYSTEMS. Disconnect PCV hose. Disconnect ignition coil connector and fuel injector connectors.

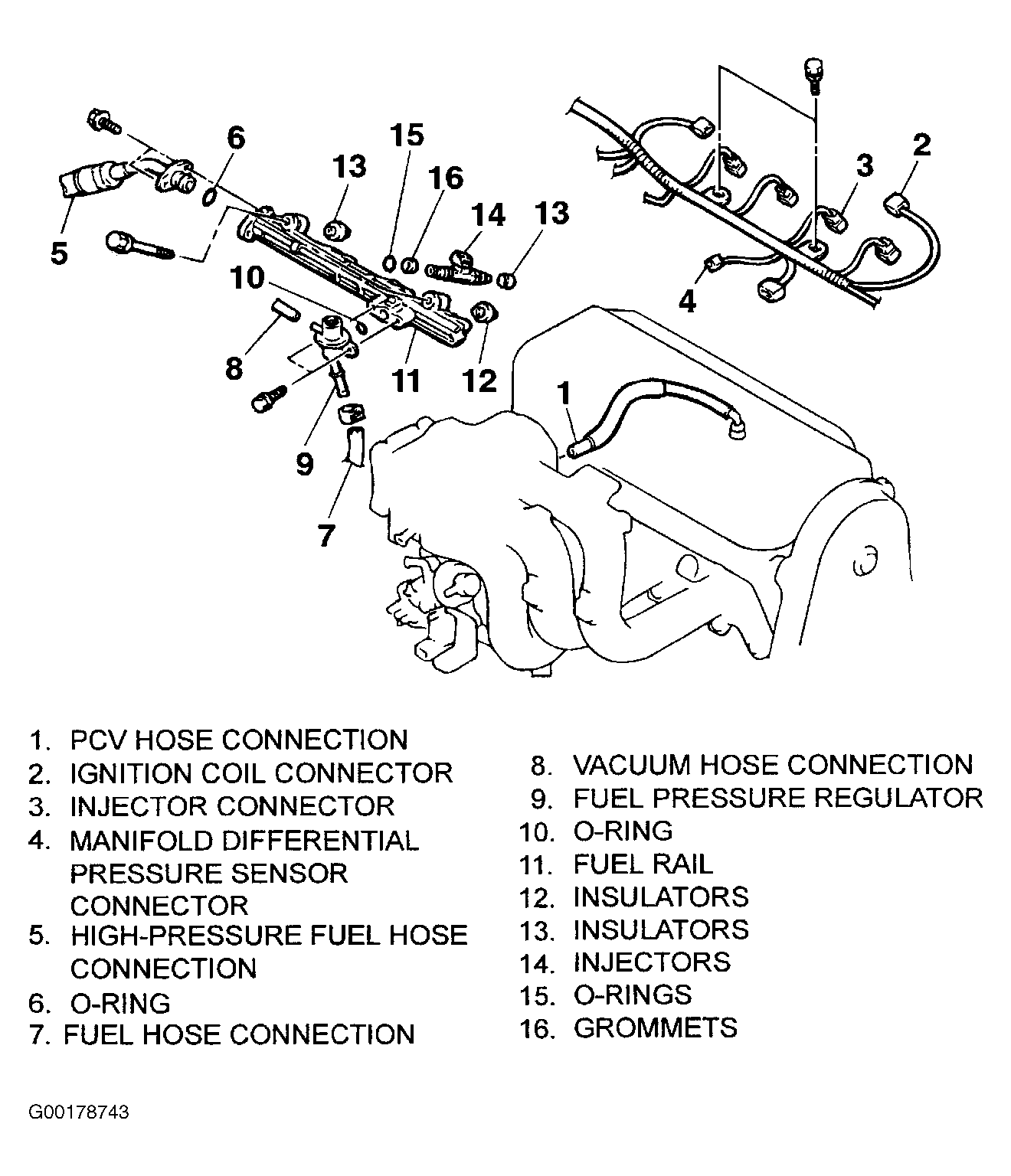

- Disconnect ignition failure sensor connector. See Fig 1. Disconnect manifold differential pressure sensor connector. Disconnect high-pressure fuel hose and fuel hose. Disconnect vacuum hose. Remove fuel pressure regulator, "O" ring and fuel rail. Remove insulators, injectors, "O" rings and grommets.
