Removal (Montero)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE .

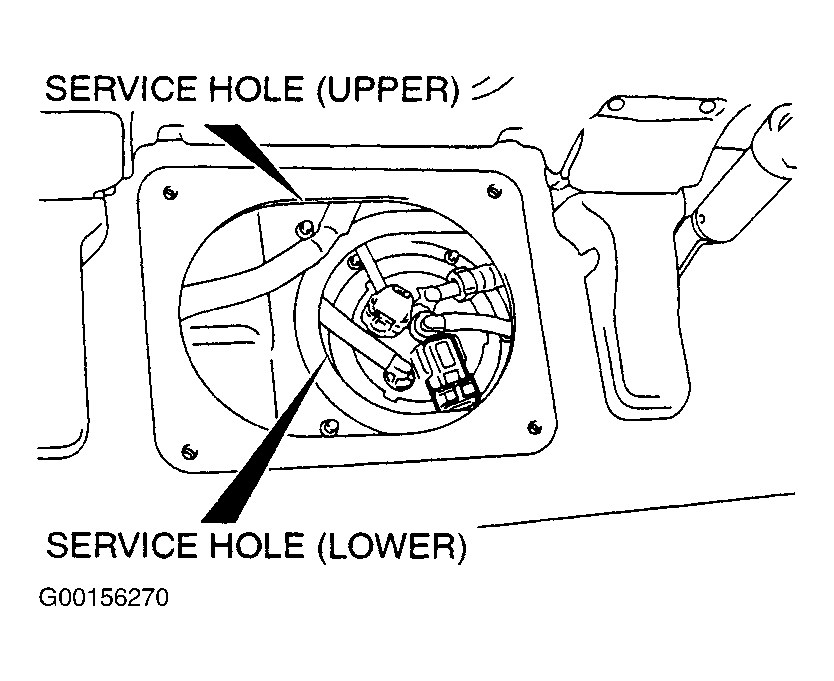

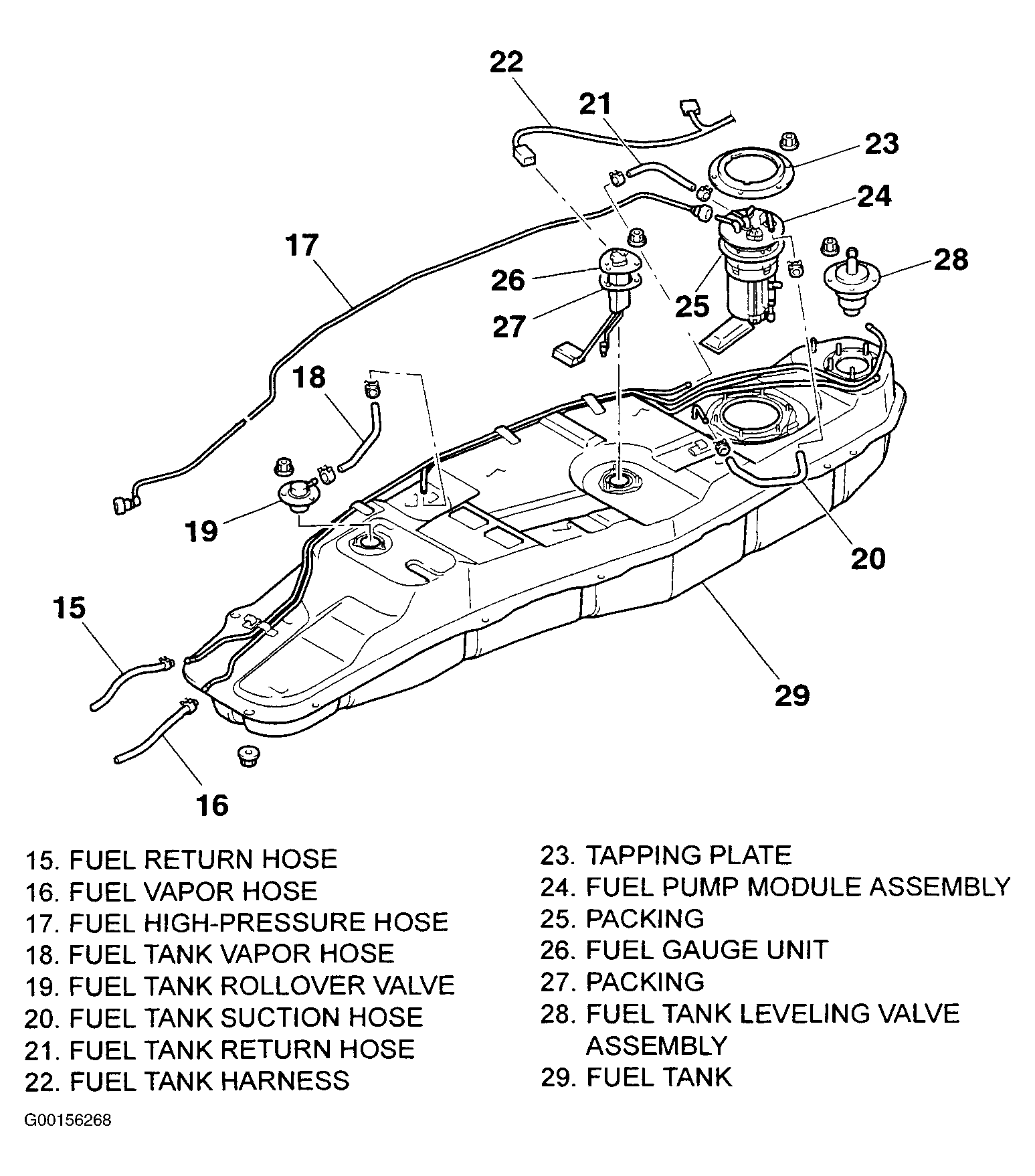

  2. Fold second seat to gain access to fuel pump module access hole cover. See Figure. Remove access hole cover (upper side) and packing. Remove access hole cover (lower side) and packing. Disconnect fuel pump module harness connector. Disconnect fuel high-pressure fuel hose and fuel tank hose. Unscrew mounting nut to remove fuel pump module. See Figure.
