Installation (Montero Sport)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS . Check for any fuel leaks and repair as necessary.

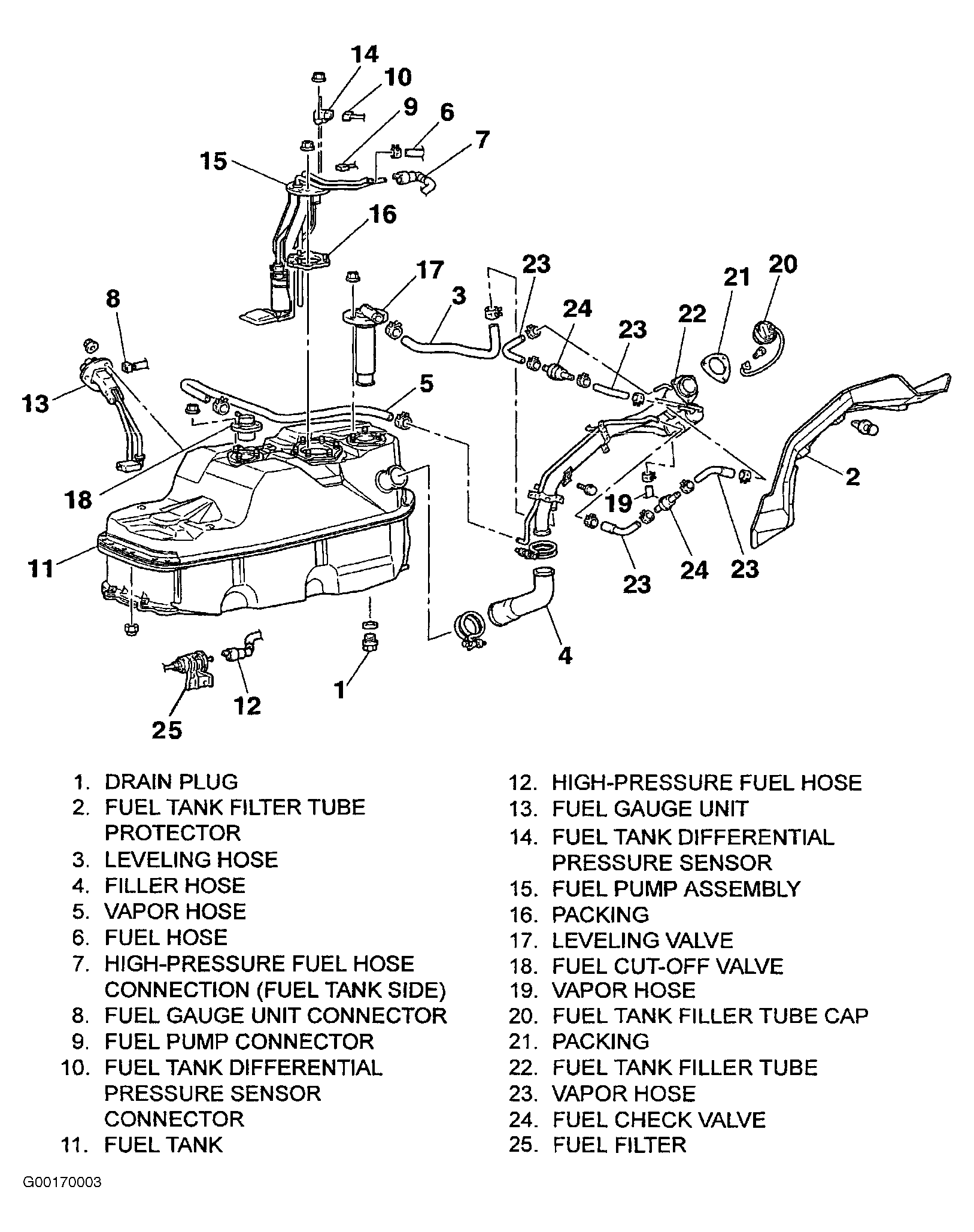

Fig 1: Exploded View Of Fuel Tank & Related Components (Montero Sport)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
