Disassembly & Reassembly (Eclipse & Galant)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

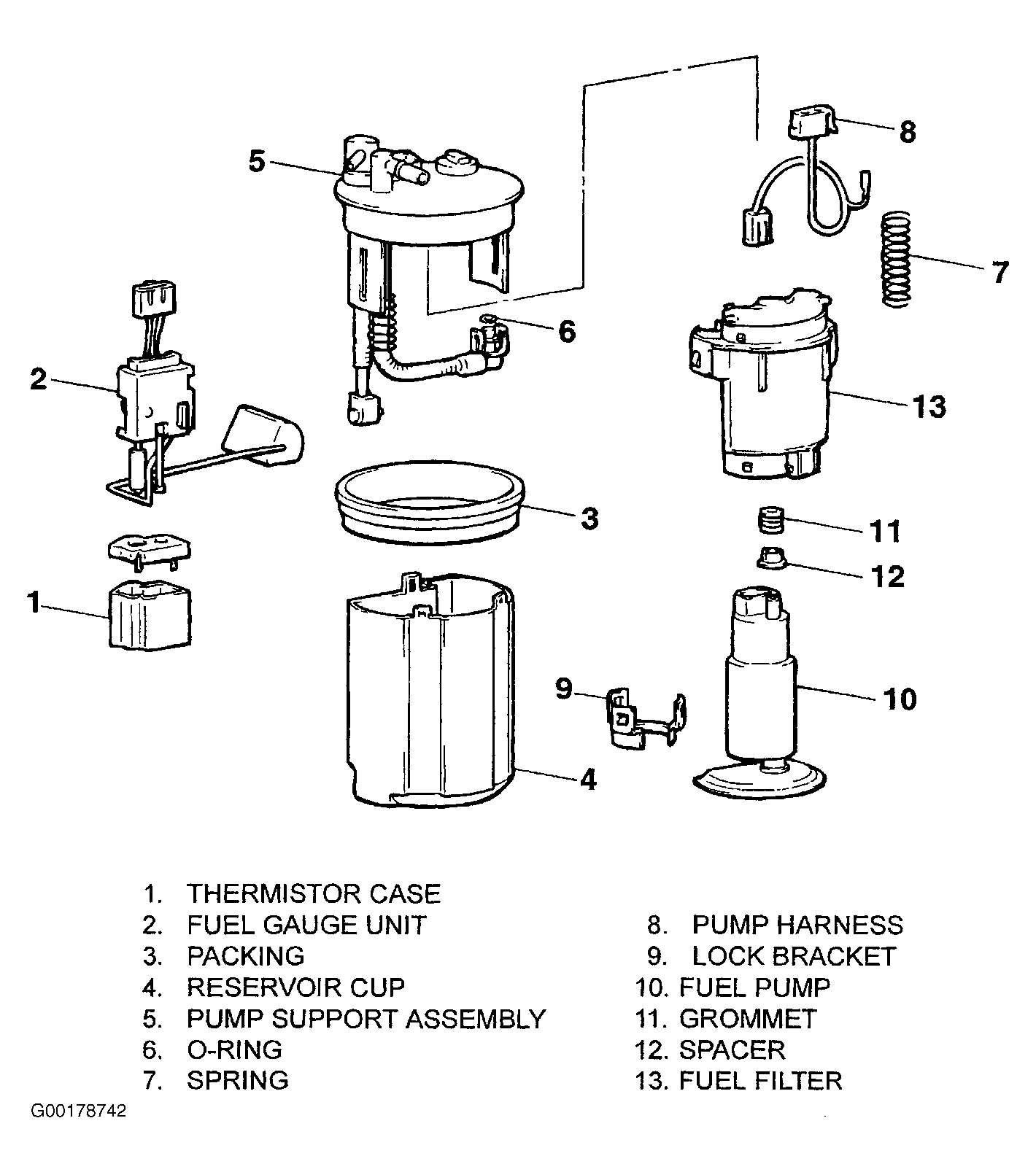

- Remove thermistor case and fuel gauge unit. See Fig 1. Remove packing and reservoir cup. Remove pump support assembly and "O" ring. Remove spring and pump harness. Remove lock bracket and fuel pump. Remove grommet, spacer and fuel filter.
- To reassemble fuel pump module, reverse disassembly procedure. Install NEW "O" ring and fuel pump grommet. When installing, apply gasoline to grommet and "O" ring to prevent them from being damaged or deformed.
