Removal & Installation (Lancer)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

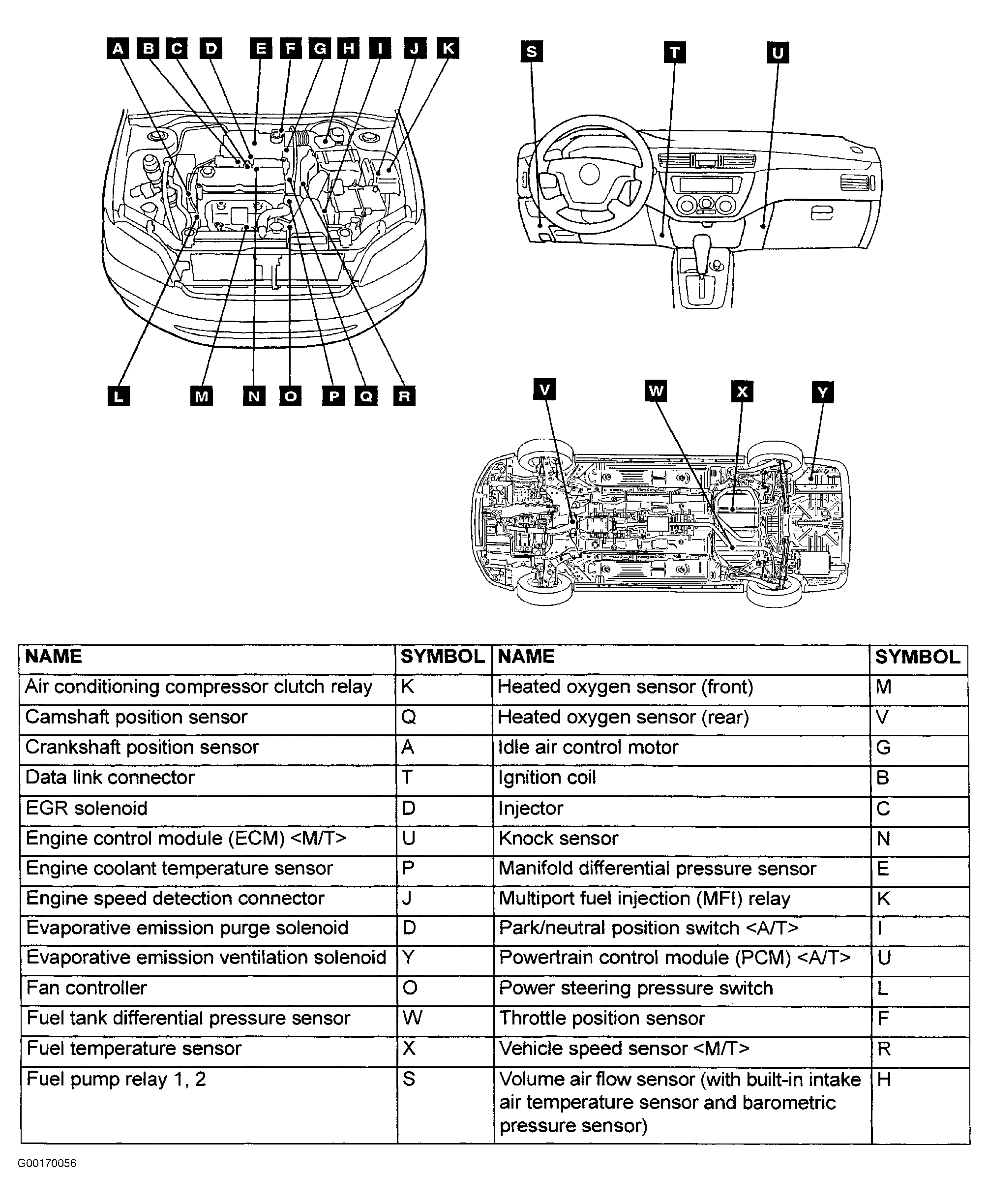

Powertrain Control Module (PCM) is located under center of instrument panel, behind glove box door. See Figure. To remove and install PCM, see Fig 1.

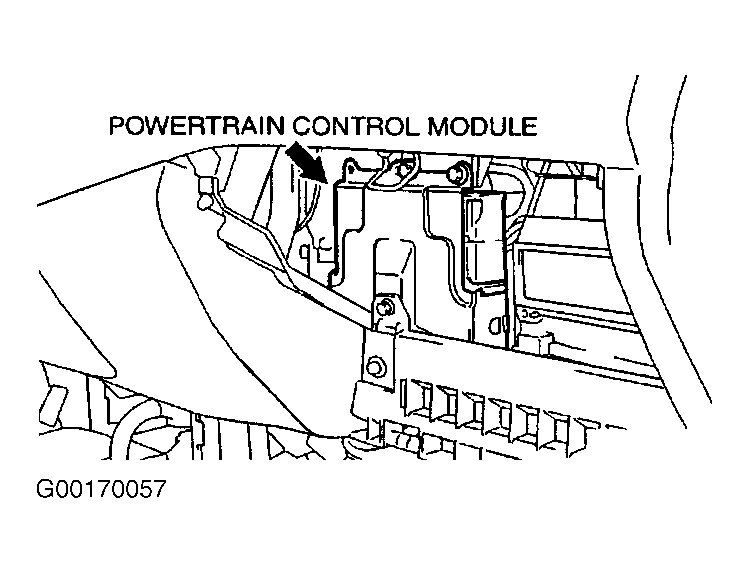

Fig 1: Removing Powertrain Control Module (Lancer)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
