Removal (Eclipse 3.0L)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
- Remove intake manifold plenum. See INTAKE MANIFOLD PLENUM .

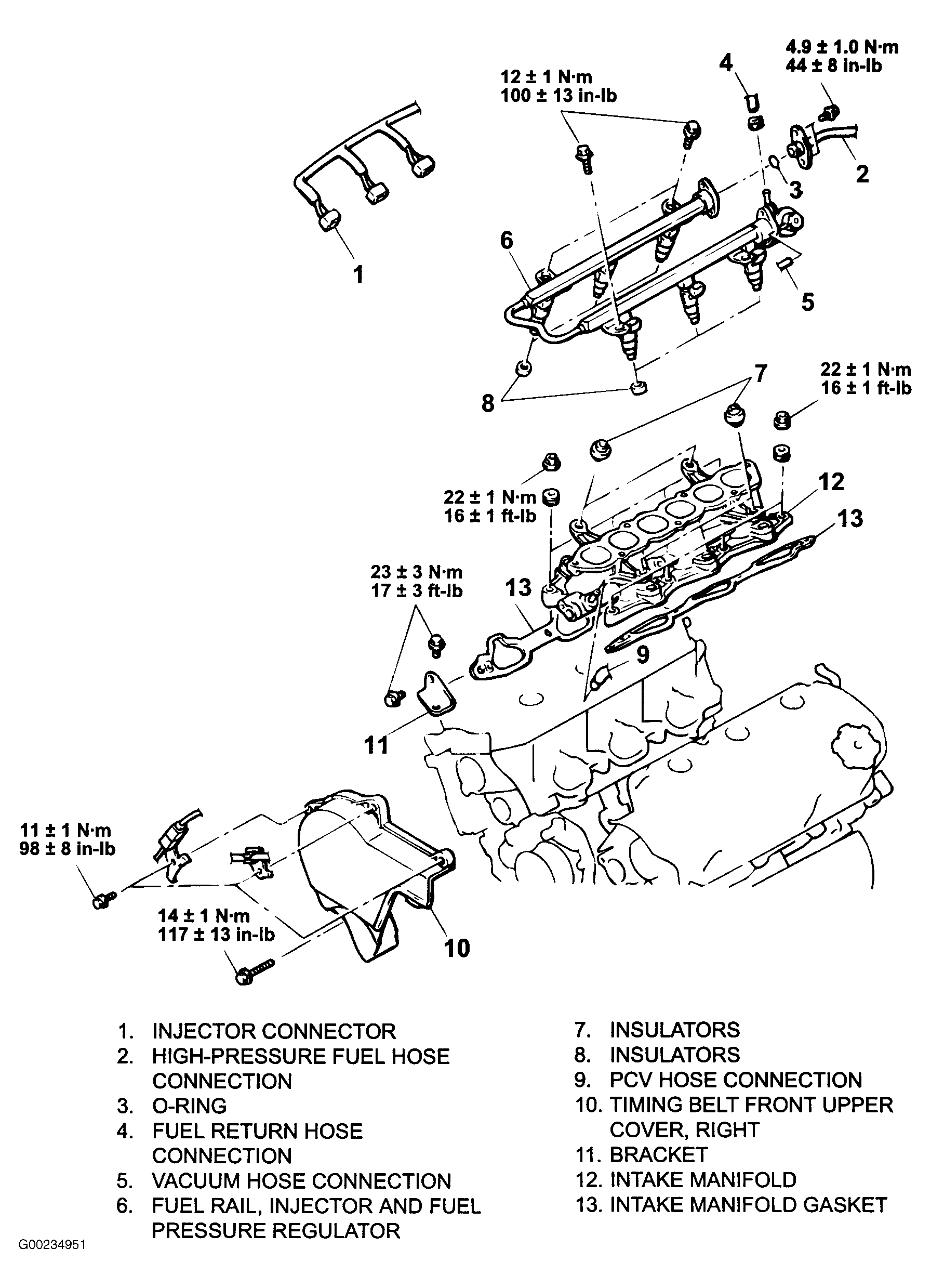

- Disconnect fuel injector connectors. See Fig 1. Disconnect high pressure fuel hose, "O" ring and return hose. Disconnect vacuum hose. Remove fuel rail (with injectors). Remove delivery pipe assembly insulators. Disconnect PCV hose. Remove right upper timing belt cover. Remove bracket. Remove intake manifold and intake manifold gasket.
