Except Diamante

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
  1. If using scan tool, connect scan tool to OBD-II Data Link Connector (DLC) located below instrument panel, to right of steering column (except Montero Sport) or left of steering column (Montero Sport). See Fig 1-Fig 7 . If using voltmeter, disconnect TP sensor connector. See Fig 8-Fig 12 . Connect a test harness set between TP sensor connector and TP sensor. See Fig 13-Fig 15 . Connect voltmeter leads to appropriate test harness terminals. See THROTTLE POSITION SENSOR OUTPUT VOLTAGE TERMINALS  table. Go to next step.
  2. Turn ignition on. Using scan tool or voltmeter, check TP sensor output voltage. TP sensor output voltage should be within standard value. See THROTTLE POSITION SENSOR OUTPUT VOLTAGE  table. If TP sensor voltage is not within specifications, go to next step.
  3. Loosen TP sensor mounting bolts. Turn TP sensor body until TP sensor output voltage is within specified range. See Fig 16 and Fig 17 . Hold TP sensor in position and tighten TP sensor mounting bolts. Turn ignition off.
THROTTLE POSITION SENSOR OUTPUT VOLTAGE

Application Specification (Millivolts)
Diamante 580-690
Eclipse, Galant, Outlander & Montero Sport 535-735
Lancer 335-935
THROTTLE POSITION SENSOR OUTPUT VOLTAGE TERMINALS

Specification Terminals
Diamante, Eclipse, Galant & Montero Sport No. 3 (Sensor Output) & No. 1 (Sensor Ground)
Lancer No. 1 (Sensor Output) & No. 2 (Sensor Ground)
Outlander No. 2 (Sensor Output) & No. 4 (Sensor Ground)
Fig 1: Connecting Scan Tool (Diamante)
G00223767Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

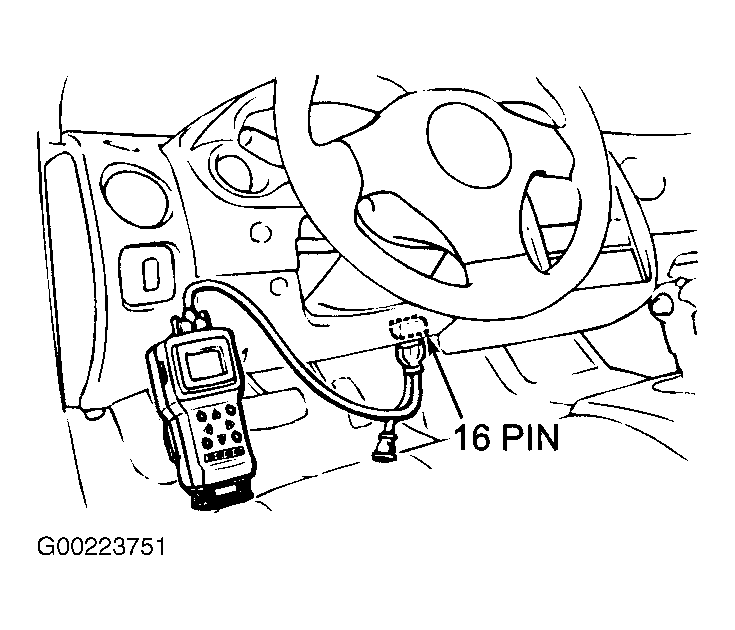

Fig 2: Connecting Scan Tool (Eclipse)
G00223751Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

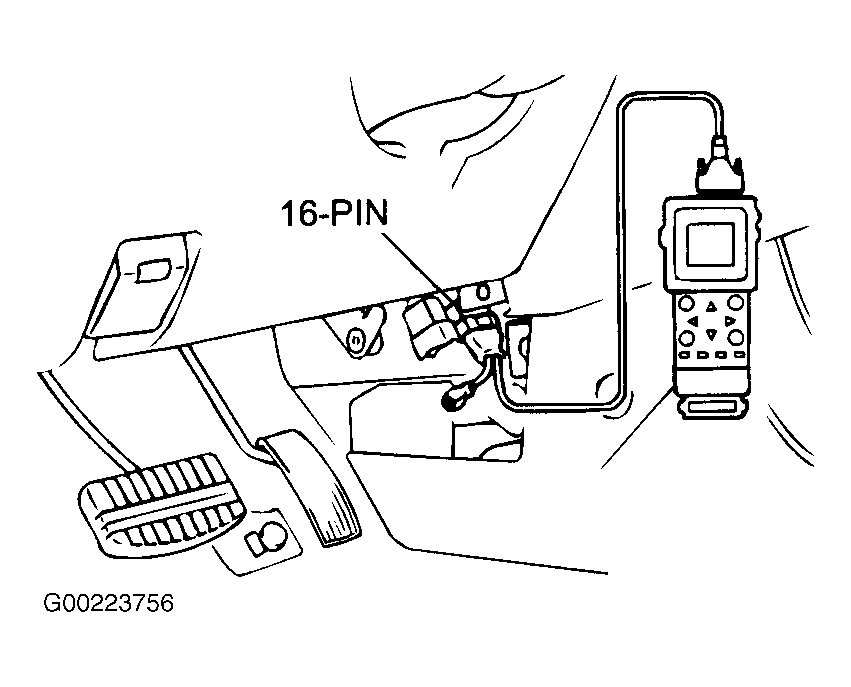

Fig 3: Connecting Scan Tool (Galant)
G00223756Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Connecting Scan Tool (Lancer)
G00223757Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 5: Connecting Scan Tool (Montero)
G00223766Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

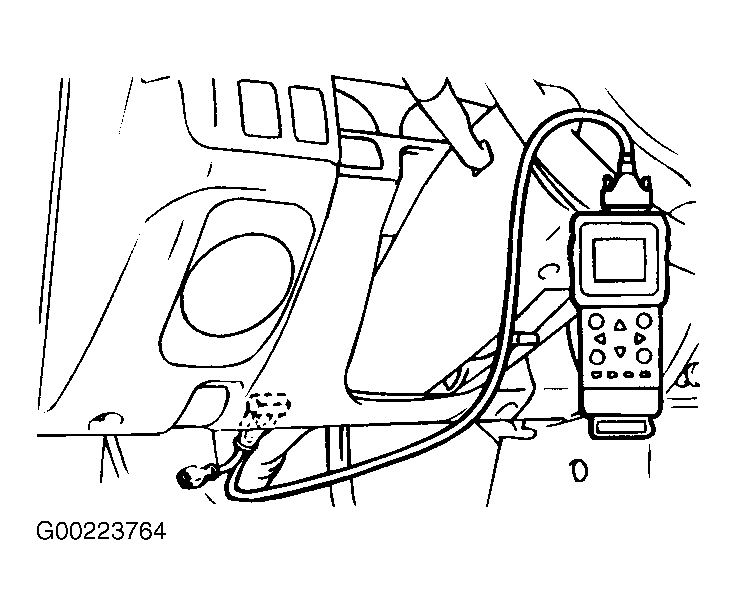

Fig 6: Connecting Scan Tool (Montero Sport)
G00223764Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 7: Connecting Scan Tool (Outlander)
G00223760Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

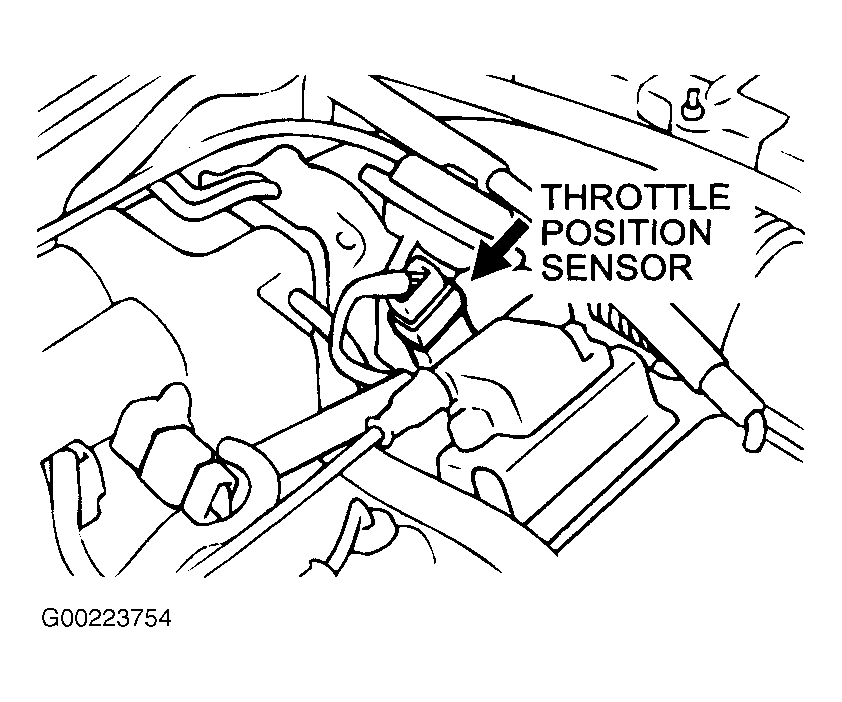

Fig 8: Locating Throttle Position Sensor (Eclipse & Galant, 2.4L)
G00223754Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

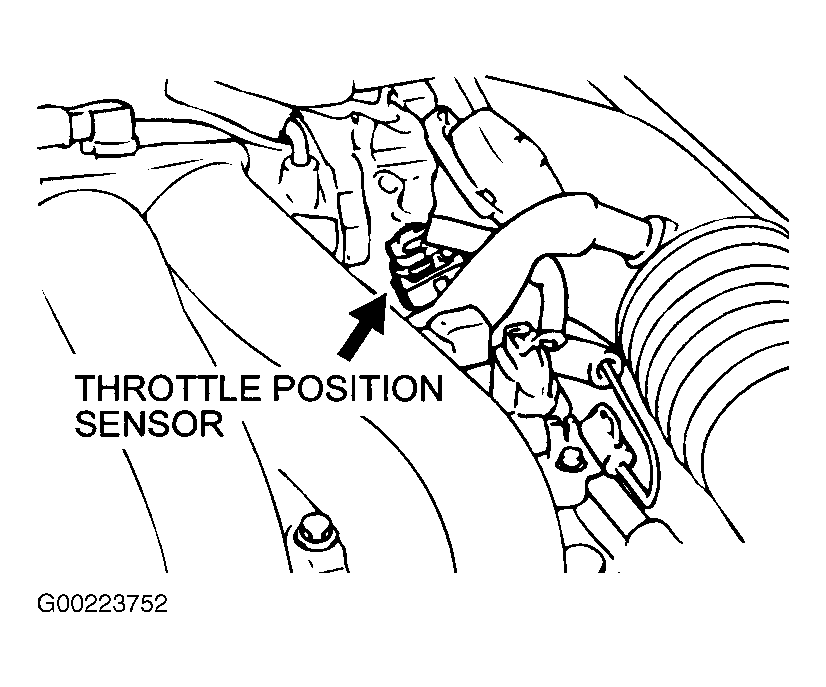

Fig 9: Locating Throttle Position Sensor (Eclipse & Galant, 3.0L)
G00223752Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

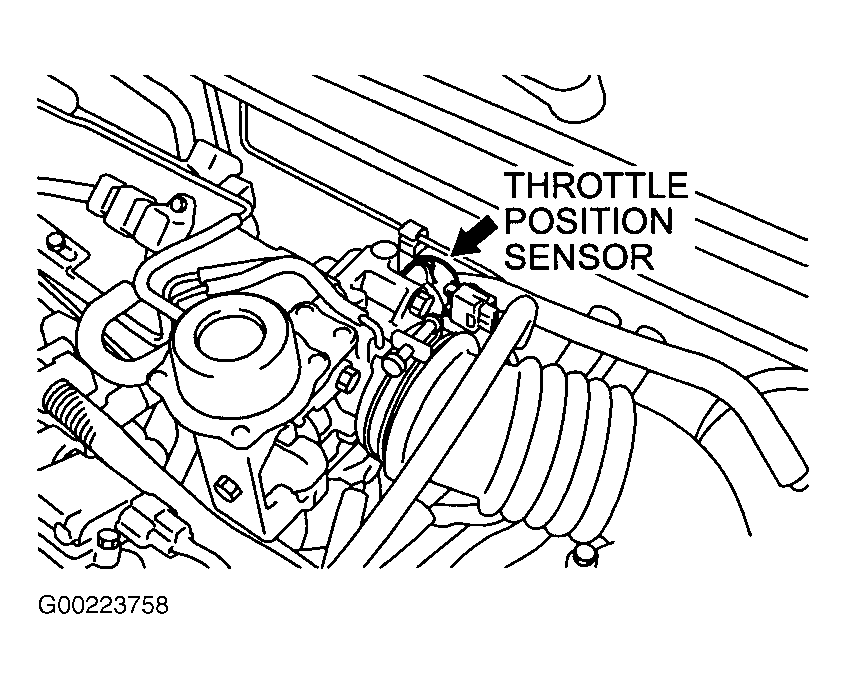

Fig 10: Locating Throttle Position Sensor (Lancer)
G00223758Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

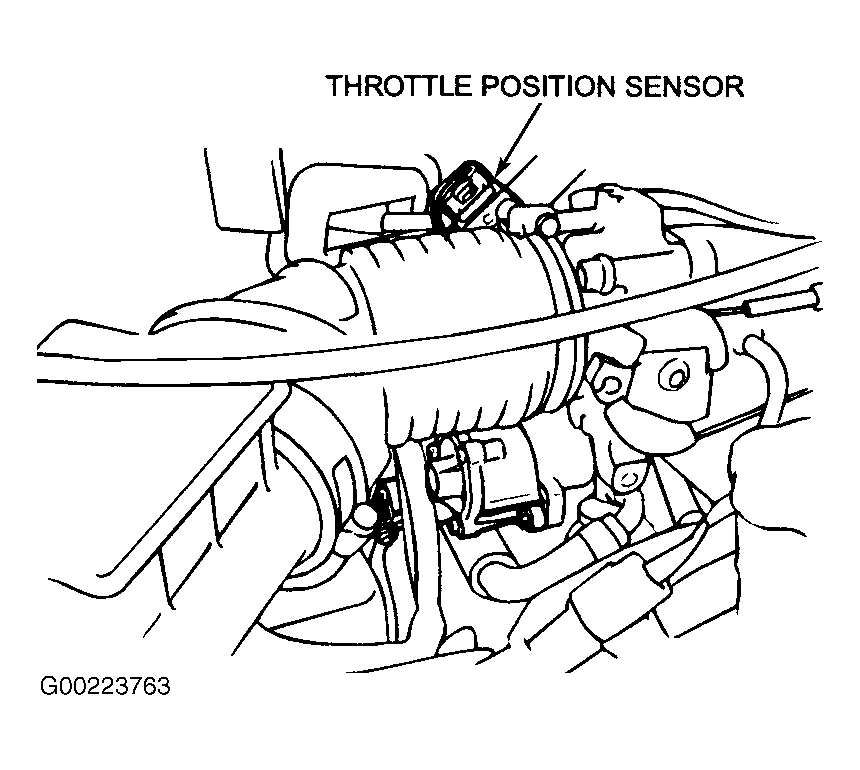

Fig 11: Locating Throttle Position Sensor (Montero Sport)
G00223763Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

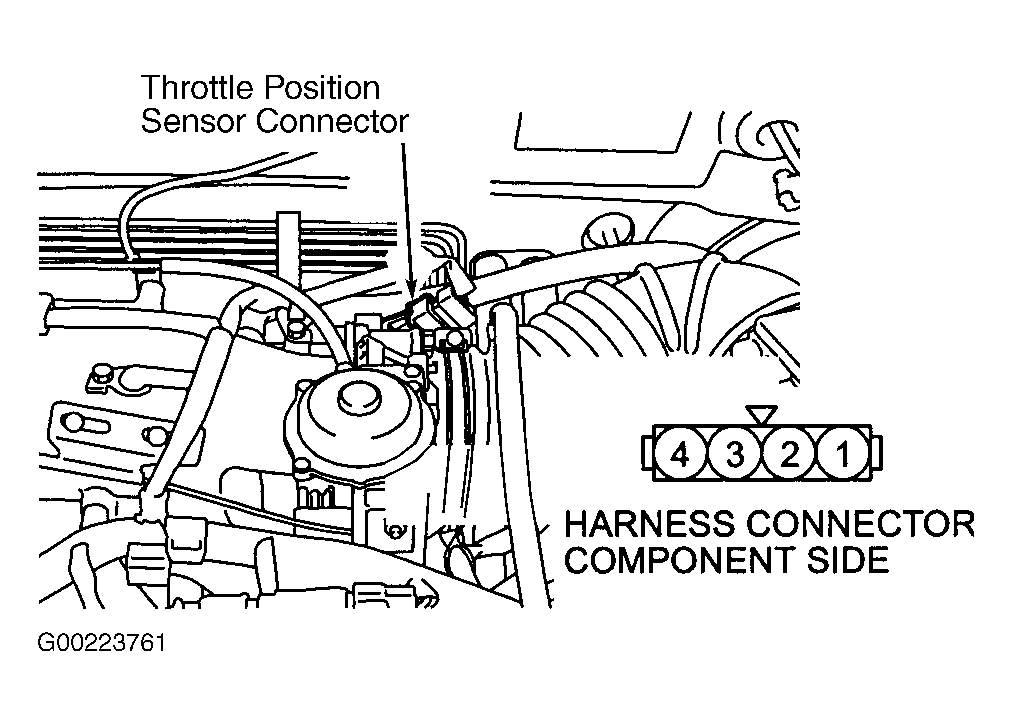

Fig 12: Locating Throttle Position Sensor (Outlander)
G00223761Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

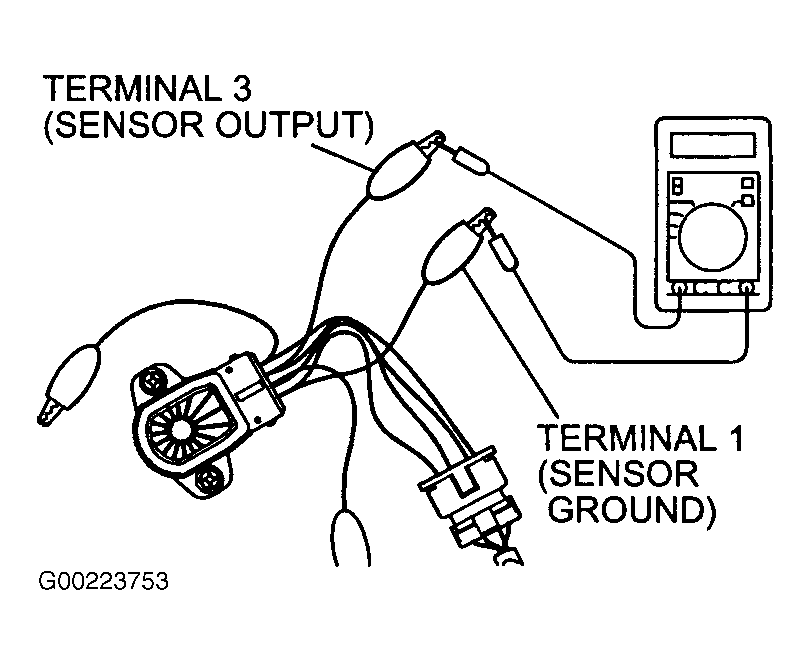

Fig 13: Checking Throttle Position Sensor Output Voltage (Eclipse, Galant & Montero Sport)
G00223753Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 14: Checking Throttle Position Sensor Output Voltage (Lancer)
G00223759Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

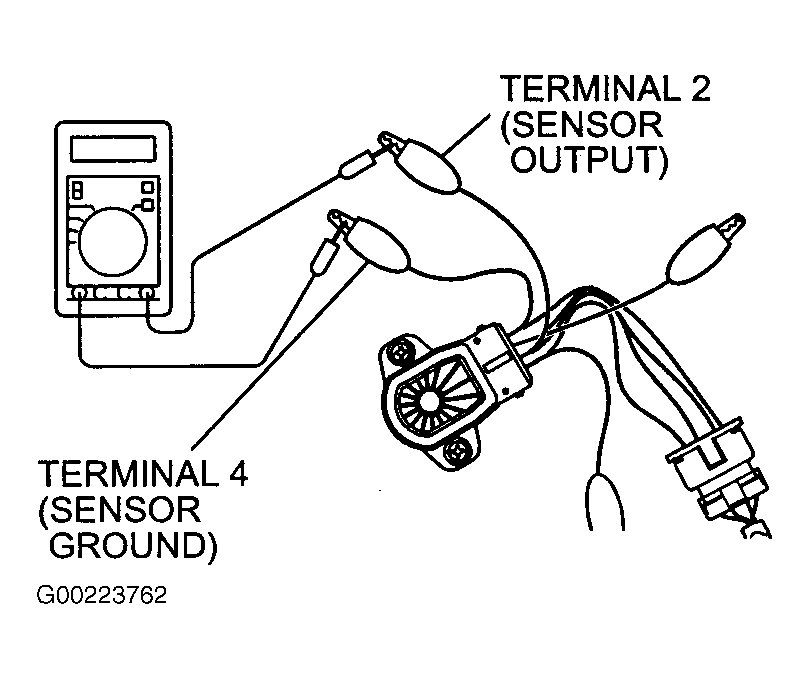

Fig 15: Checking Throttle Position Sensor Output Voltage (Outlander)
G00223762Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

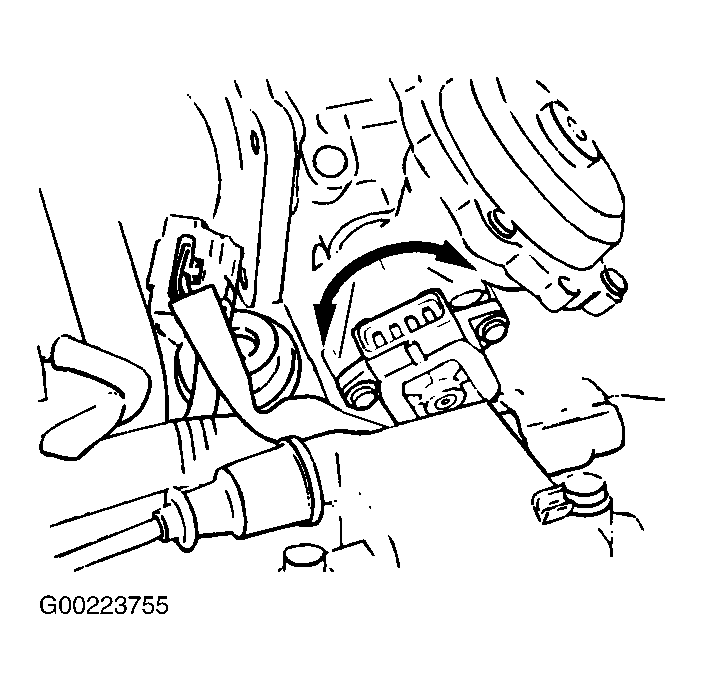

Fig 16: Adjusting Throttle Position Switch (Eclipse & Galant, 2.4L)
G00223755Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

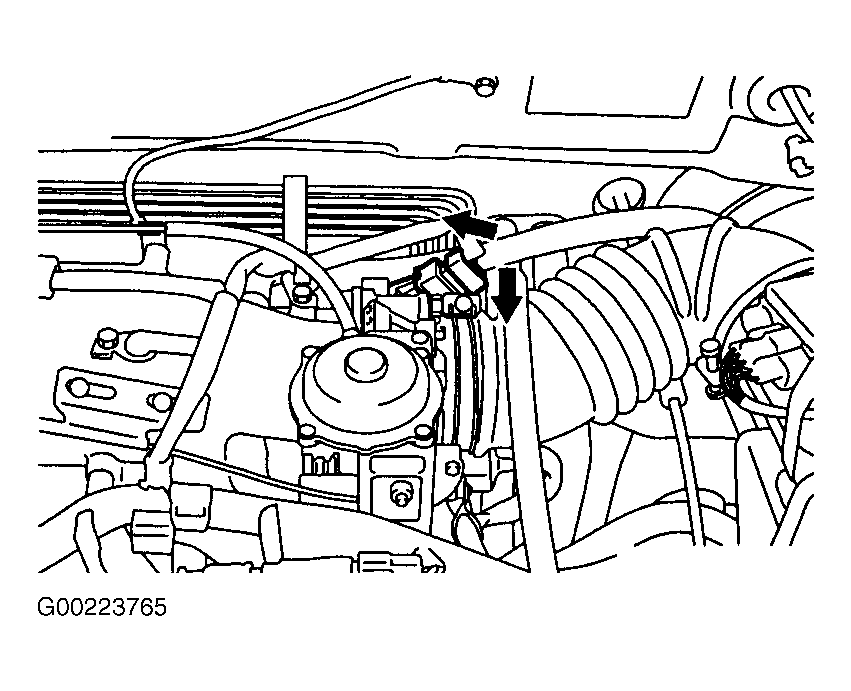

Fig 17: Adjusting Throttle Position Sensor (Outlander)
G00223765Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
