Accelerator Pedal Position Sensor: Montero
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

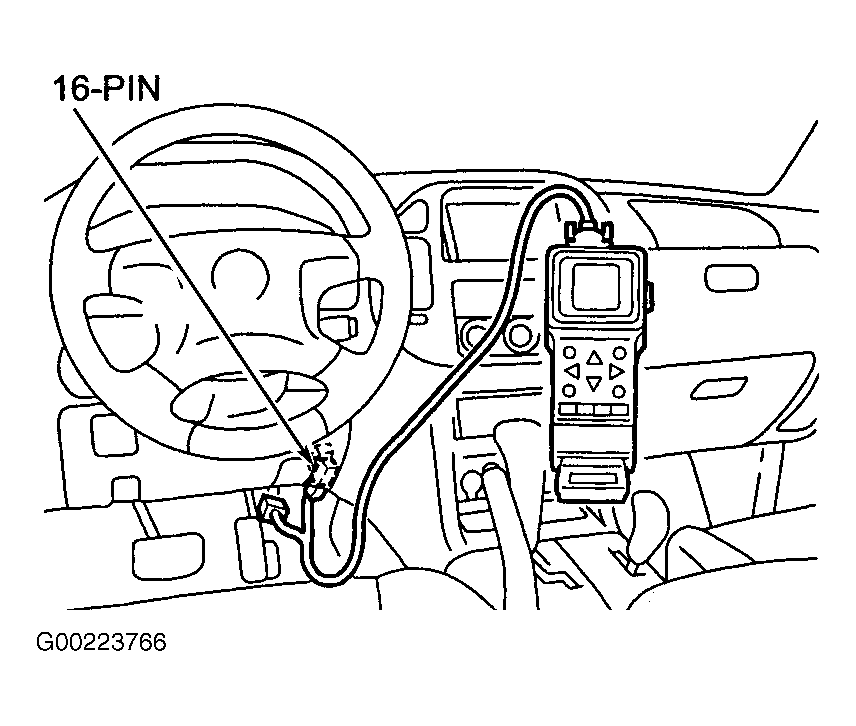

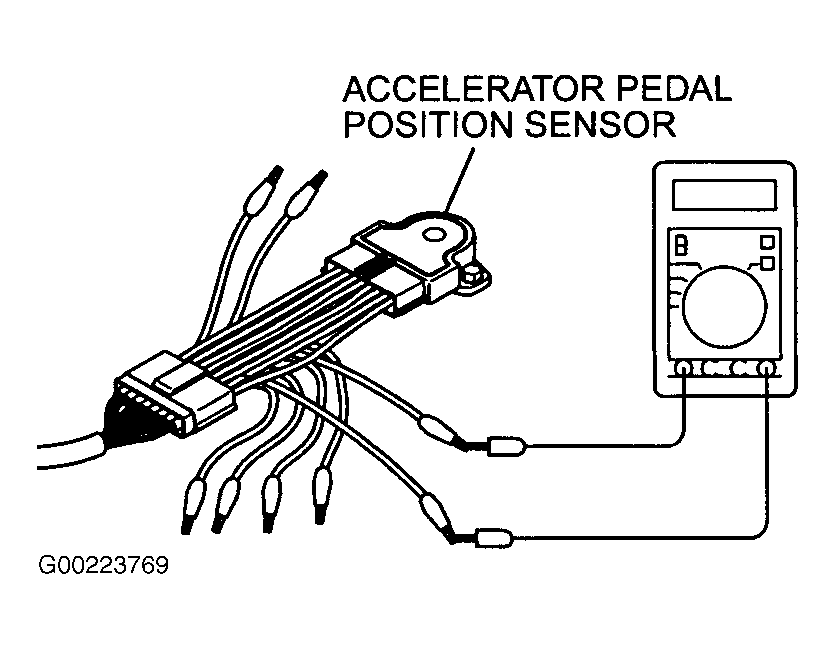

- If using scan tool, connect scan tool to OBD-II Data Link Connector (DLC) located below instrument panel, to right of steering column. See Figure. If using voltmeter, disconnect accelerator pedal position sensor connector. See Fig 1. Connect a test harness set between accelerator pedal position sensor connector and accelerator pedal position sensor. See Fig 2. Connect voltmeter leads to test harness terminals No. 3 (main output) and No. 1 (main ground). Go to next step.

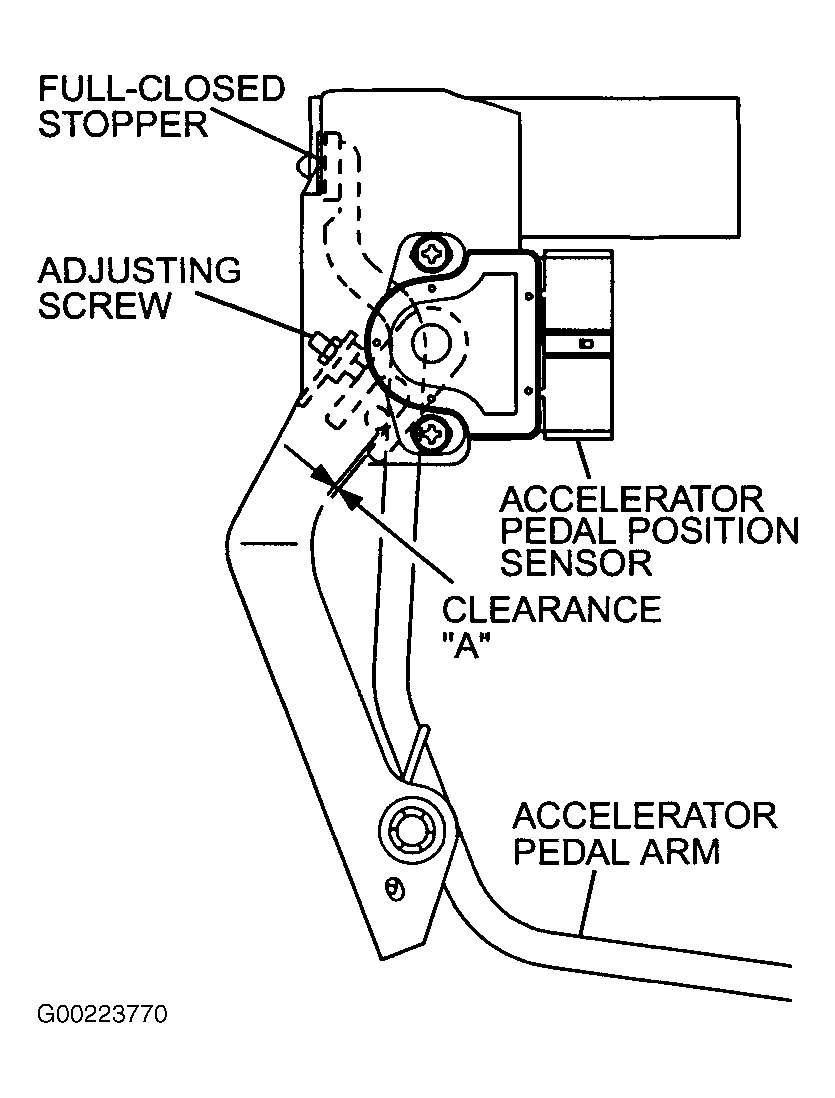

- Loosen accelerator pedal position sensor mounting bolts, and hold accelerator pedal position sensor temporary. Check that accelerator pedal arm touches full-closed stopper. See Fig 3. Adjust pedal arm by adjusting screw so that clearance "A" is 0.020- 0.037 in (0.5-0.93 mm).
- Hold adjusting screw with lock nut. Turn ignition switch to ON position. Turn accelerator pedal position sensor until output from accelerator pedal position sensor is 905-1165 millivolts. Tighten accelerator pedal position sensor mounting bolts securely.
