Drive Belt Adjustment (Eclipse, GALANT, Lancer, Montero & Outlander)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
BELT ADJUSTMENT (ECLIPSE, GALANT, LANCER, MONTERO & OUTLANDER)

Application (1) Deflection New Belt - In. (mm) (1) Deflection Used Belt - In. (mm)
Eclipse
2.4L
A/C & P/S .34-.43 (8.8-11.0) .49-.56 (12.5-14.3)
Generator .17-.21 (4.4-5.3) .28-.33 (7.2-8.4)
3.0L
A/C & Generator .24-.30 (6.2-7.6) .35-.40 (9.0-10.0)
P/S .33-.37 (8.4-9.3) .46-.53 (11.7-13.3)
Galant
2.4L
P/S Or A/C & P/S .34-.43 (8.8-11.0) .49-.56 (12.5-14.3)
Generator .17-.21 (4.4-5.3) .28-.33 (7.2-8.4)
3.0L
A/C & Generator .24-.30 (6.2-7.6) .35-.40 (9.0-10.0)
P/S .33-.41 (8.4-10.4) .46-.53 (11.7-13.3)
Lancer
A/C & P/S .27-.35 (7.0-9.0) .39-.43 (10.0-11.0)
Generator .26-.33 (6.7-8.5) .41-.47 (10.5-12.0)
Montero & Outlander (2) (2)
(1) With 22 lbs. (10 kg) pressure applied on longest belt run midway between pulleys. See Fig 1-Fig 6 .
(2) Automatic belt tensioner is used. Belt tension adjustment is not required.
Fig 1: Locating Generator Belt Longest Run Mid-Point (Galant & Eclipse - 2.4L)
G00223730Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

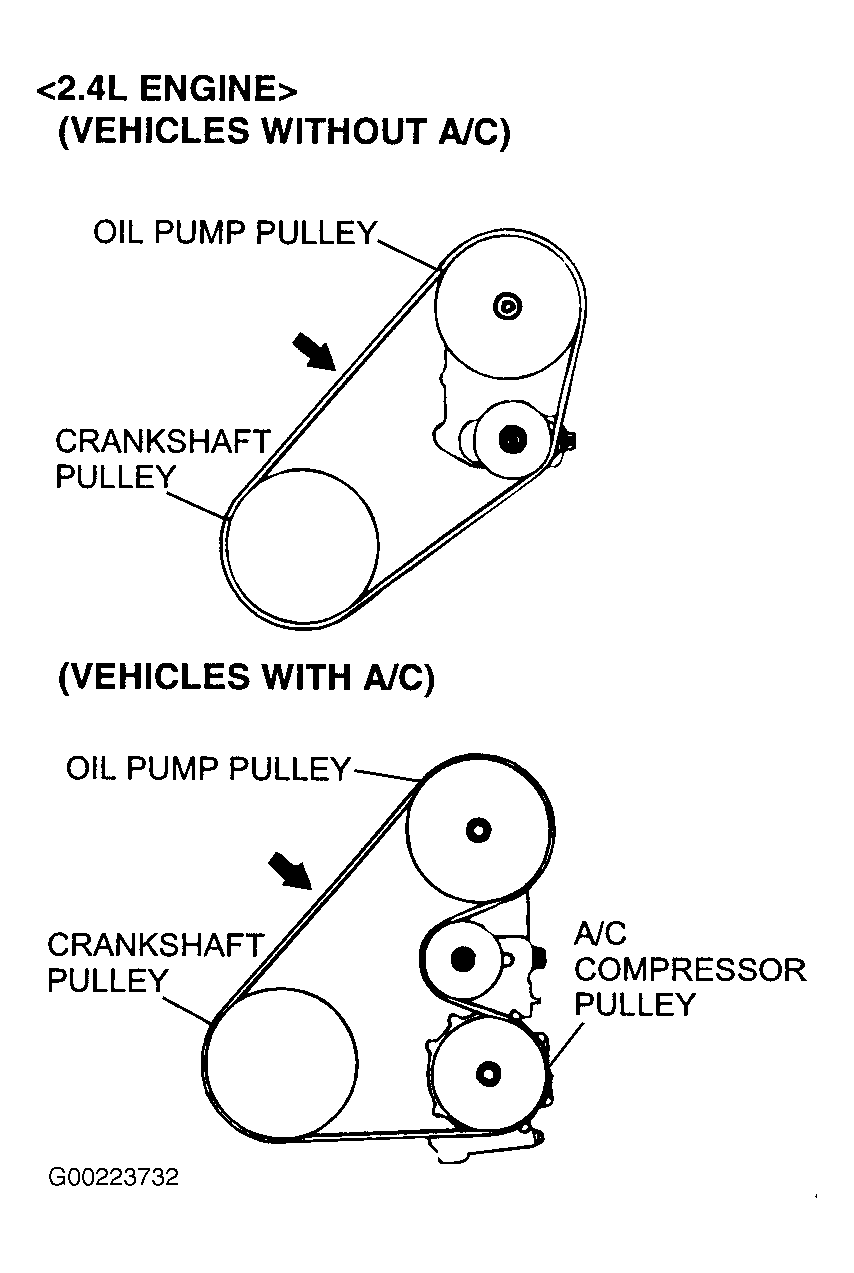

Fig 2: Locating P/S Or P/S & A/C Belt Longest Run Mid-Point (Galant & Eclipse - 2.4L)
G00223732Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

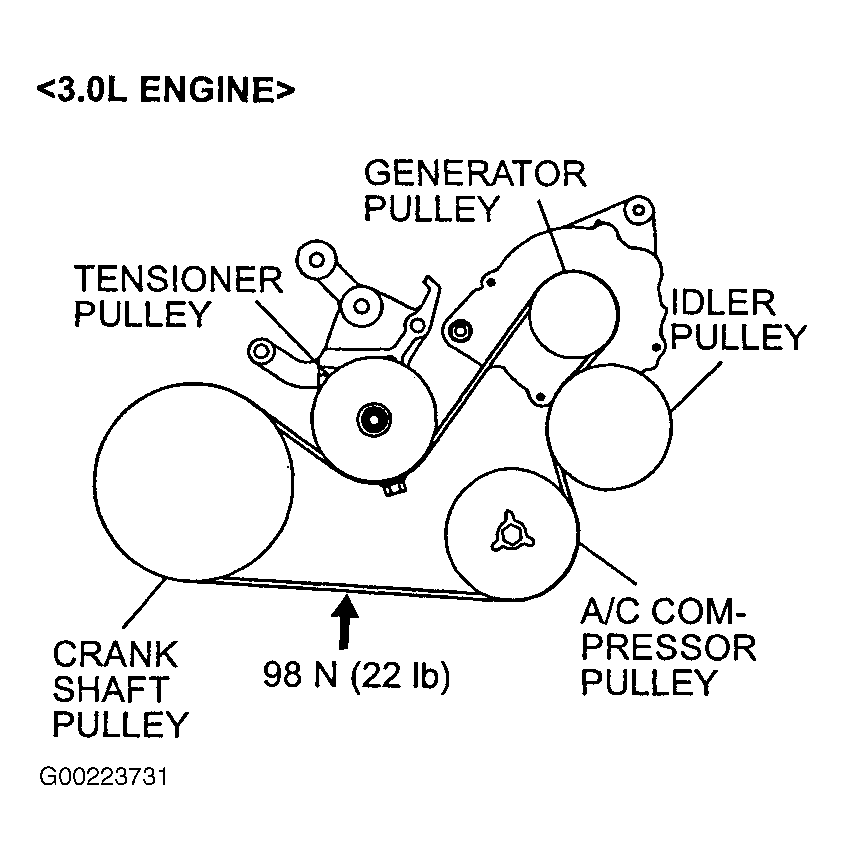

Fig 3: Locating A/C & Generator Belt Longest Run Mid-Point (Galant & Eclipse - 3.0L)
G00223731Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Locating P/S Belt Longest Run Mid-Point (Galant & Eclipse - 3.0L)
G00223733Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 5: Locating Generator Belt Longest Run Mid-Point (Lancer)
G00223734Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 6: Locating A/C & P/S Belt Longest Run Mid-Point (Lancer)
G00223735Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
