Fuel Meter On-Vehicle Inspection
WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Remove rear bumper facing.
- Detach grommet from vehicle.
- Disconnect coupler.

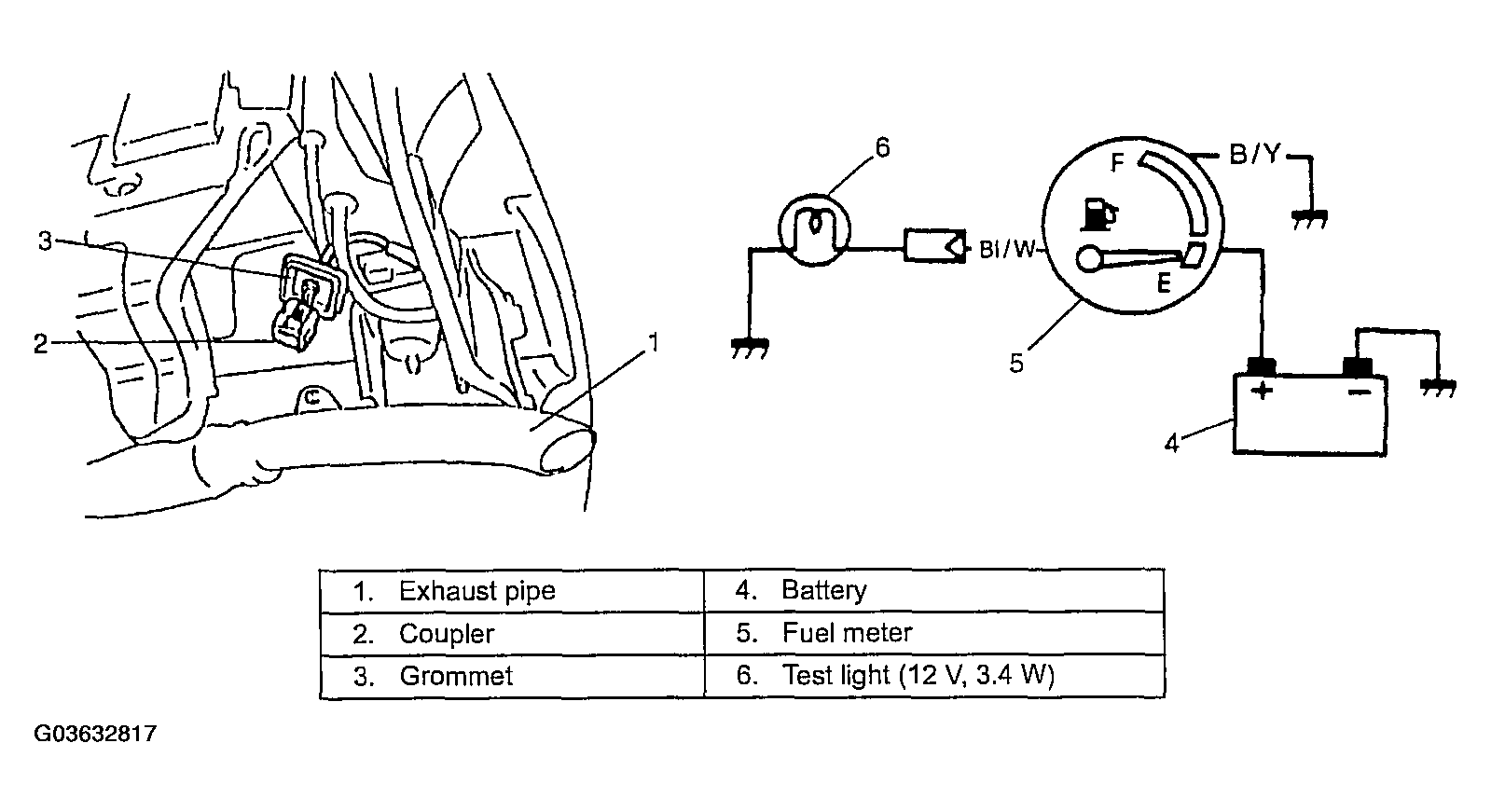

- Connect "BI/W" terminal of coupler to a light bulb (12 V, 3.4 W) as shown.
- Turn ignition switch ON. Make sure that bulb is lighted with meter pointer fluctuating several seconds thereafter. If meter is faulty, replace.
